PVC Pet Fence Manufacturers

Deqing Huazhijie Railing & Fencing Co., Ltd. has extruded PVC fencing from Deqing, Zhejiang, near Shanghai, since 2003. Our PVC Pet Fence manufacturer programme applies that same profile capability to pet containment: lead-free, 100% virgin PVC whelping boxes and whelping box-and-playpen systems for breeders, kennels, veterinary practices and pet product distributors.

Every unit is built from profiles we extrude ourselves, then cut, drilled, notched and packed in our own plant. That control is what holds wall thickness, routed rail geometry and post-to-rail fit consistent across repeat orders and container loads.

The PVC Pet Fence Range

The range is organised around three whelping configurations, all sharing the same 3" x 3" x 18.9" post system, flat post caps, post feet and a 7/8" x 6" pre-routed rail. The difference between models is footprint, rail connection and whether a picketed playpen zone is integrated.

Post heights are available beyond the 18.9" standard, so a single profile family can serve both low-entry whelping pens and taller containment runs. The PVC whelping box with playpen is the usual starting point where a breeder needs one footprint to cover birth through early socialisation.

Material and Profile Engineering

Huazhijie profiles are formulated from 100% virgin vinyl with no recycled content and no lead. The compound carries UV inhibitors, impact modifiers and stabilisers, with DuPont TiO2 at 10 parts per 100 for non-chalking performance and US or German brand pigments for colour stability. Raw materials are traceable through the production record.

• Surface behaviour: the non-porous, smooth finish resists chewing and scratching far better than splintering timber, and does not rust as metal does.
• Thermal range: the material is rated for service from -40°C to 70°C, covering unheated kennel buildings and covered outdoor runs.
• Hygiene: a hose rinse handles routine cleaning; mild abrasive cleaners are used for stubborn staining, and most paint or marker marks lift with ordinary detergent.
• Structure: heavier-wall posts and rails combined with notched rails increase pull-out resistance at the joints.

Where the Range Fits

These units are specified into breeding kennels, veterinary and neonatal care rooms, pet retail display floors and distributor stock programmes. The playpen variants suit weaning and separation workflows, while the compact square-rail boxes suit whelping rooms where floor space is fixed and units are moved between runs.

Because the pet range shares profile geometry with our wider fence family, a facility can specify matching PVC fence gates and run-in panels in the same finish, and draw replacement rails, caps and feet from the PVC fence profiles and accessories line rather than sourcing odd components.

Configuration Options and OEM/ODM Support

Standard units are supplied in white. Beyond the three footprints above, we review height changes, rail and pig rail profiles, picket spacing, post cap style and post feet against the intended animal size and cleaning method. More than 500 PVC profile styles are already tooled, which shortens development time when a configuration is close to an existing section.

OEM and ODM orders are part of normal production. We develop new fence profiles and styles against customer drawings or reference samples, and we accept customer-specified sizes where the section can be extruded and assembled reliably. Project design support is available where a kennel layout needs a coordinated set of boxes, gates and panels.

Production Process and Quality Control

Production runs through six controlled stages: extrusion, cutting, drilling holes, notching, packaging and storage. Posts arrive routed, rails are pre-routed and notched, and components are precut so that assembly on site follows a fixed sequence rather than site measurement.

An independent quality-control group inspects each extruder's output hourly and carries out additional random checks. The company holds CE, ROHS and UL94 certificates, together with SGS, ASTM, ISO 9001 and TUV Global Manufacturer certification. Finished pet fencing carries a 30-year limited warranty.

Assembly, Installation and Site Requirements

Assembly follows the same logic as a wood fence but without cutting on site: rails insert into the routed post holes, pickets insert into the rails, and post caps are fitted after the frame is standing. Post feet add stability on hard floors, and posts can be cemented where local practice cements timber posts.

• Confirm floor type — concrete, tile, matting or prepared ground — before specifying post feet or cementing.
• Allow clearance for the mother to enter and exit; the 18.9" standard height is set for that purpose.
• Plan the playpen zone against the weaning schedule so the picketed section is on the correct side of the box.
• An installation video and technical guidance are provided with the order.

Information We Use to Configure Your Solution

We prepare a configuration and quotation from the working conditions rather than from a catalogue number alone. The details that change the proposal are:

• Animal profile: breed, expected adult height and weight, and typical litter size.
• Function: whelping only, whelping plus playpen, or containment and separation runs.
• Footprint and height: required length, width and post height, plus any ceiling or doorway constraints.
• Environment: indoor or covered outdoor use, floor material, cleaning method and disinfection chemicals.
• Quantity pattern: first order volume, repeat order frequency and whether units ship as single cartons or palletised loads.
• Finish and hardware: colour, post cap style, pig rail profile and picket spacing.
• Market requirements: destination country, labelling, carton marking and any compliance documentation needed at import.
• Branding: OEM or ODM scope, including profile changes, packaging artwork and instruction sheets.

Documentation, Packaging and Delivery Scope

Each whelping box is packed in a carton sized for the assembled component set, which keeps handling simple for distributors and for kennel staff receiving multiple units. Carton marking, pallet configuration and mixed loads are agreed at order stage. Technical documentation, installation video guidance and profile drawings for custom sections are issued with the order so that installers and after-sales teams work from the same reference.

Spare rails, caps, feet and pickets are supplied from the same profile line, so replacement parts match the original section rather than a substitute. Where a facility standardises on one post and rail system across pet housing and perimeter fencing, we quote the full set together.

Frequently Asked Questions

What sizes does the PVC Pet Fence range cover?

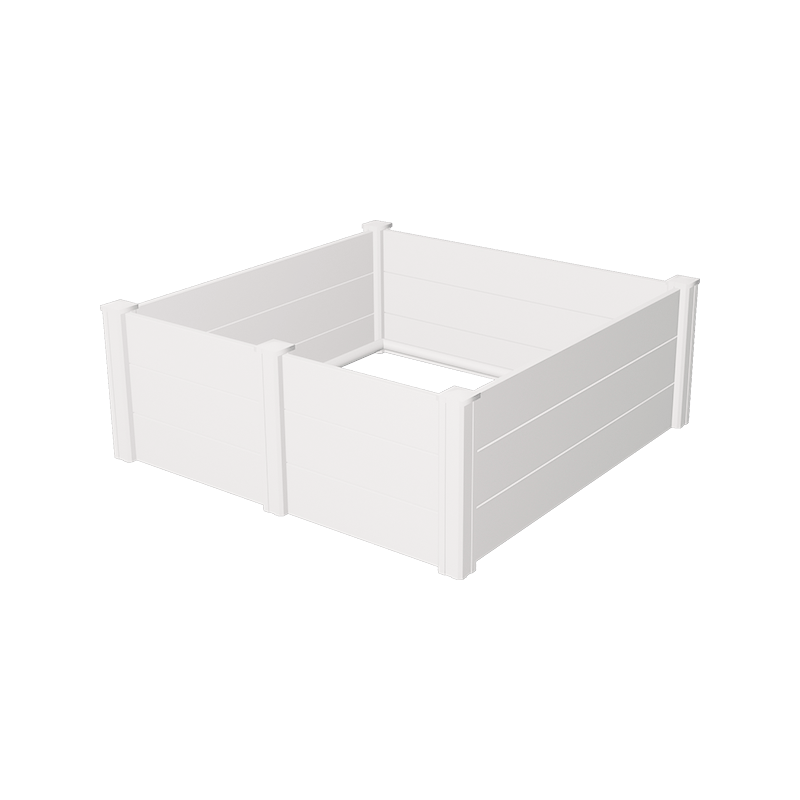

Whelping boxes are produced in 37.4" x 37.4", 45.3" x 45.3" and 58.3" x 58.3" footprints at 18.9" height. The playpen version extends the same depth to 74.8", 90.6" and 116.6" overall length. Post heights other than 18.9" are available, and customer-specified sizes are reviewed against the profile section.

Will the boxes stand up to chewing and scratching?

The profiles are 100% virgin PVC with a hard, non-porous surface. Chewing does not readily penetrate the section, and paw scratching does not raise splinters the way timber does. The smooth finish also prevents grime and organic material from collecting in the surface, which keeps cleaning quick between litters.

Can the configuration be changed for our kennel layout?

Yes. Height, rail profile, pig rail width, picket spacing, post cap style and post feet are all configurable, and we develop new profiles for OEM and ODM orders. Send the animal profile, footprint and cleaning method and we will confirm which existing section fits or what tooling a new section requires.

How are the units shipped and assembled?

Units ship in cartons with posts routed, rails pre-routed and notched, and components precut. Assembly is rail into post, picket into rail, then post caps. Posts can be cemented where that matches local practice, and post feet are used on hard floors. Installation video guidance is supplied with the order.

What quality and compliance evidence supports the range?

Production is inspected hourly by an independent quality-control group, with additional random checks. The company holds CE, ROHS and UL94 certificates along with SGS, ASTM, ISO 9001 and TUV Global Manufacturer certification, and finished pet fencing carries a 30-year limited warranty.

Do you supply matching gates and replacement parts?

Matching gates, panels, rails, caps, feet and pickets come from the same profile family, so a kennel can standardise on one system across whelping rooms and perimeter runs. Replacement components are produced from the original section, which keeps fit consistent over the life of the installation.
