PVC Semi-privacy Fence Manufacturers

Deqing Huazhijie Railing & Fencing Co., Ltd. is a China-based PVC Semi-private Fence manufacturer working from our factory in Deqing, Zhejiang, near Shanghai. Since 2003 we have extruded, cut, routed and notched vinyl fence profiles in-house, and the semi-private family sits between open picket fencing and solid privacy panels: enough screening for a yard, patio or pool surround, with controlled gaps that keep light and air moving. We supply complete panel kits, pre-routed posts, matching gates, and the profiles and accessories that hold a run together, in white, tan, grey and cream.

What the Semi-Private Range Covers

Seven panel families make up the range, each built from the same virgin PVC formulation and the same pre-routed post system, so a project can mix styles along one boundary without changing the structural logic.

How Semi-Private Geometry Balances Screening and Airflow

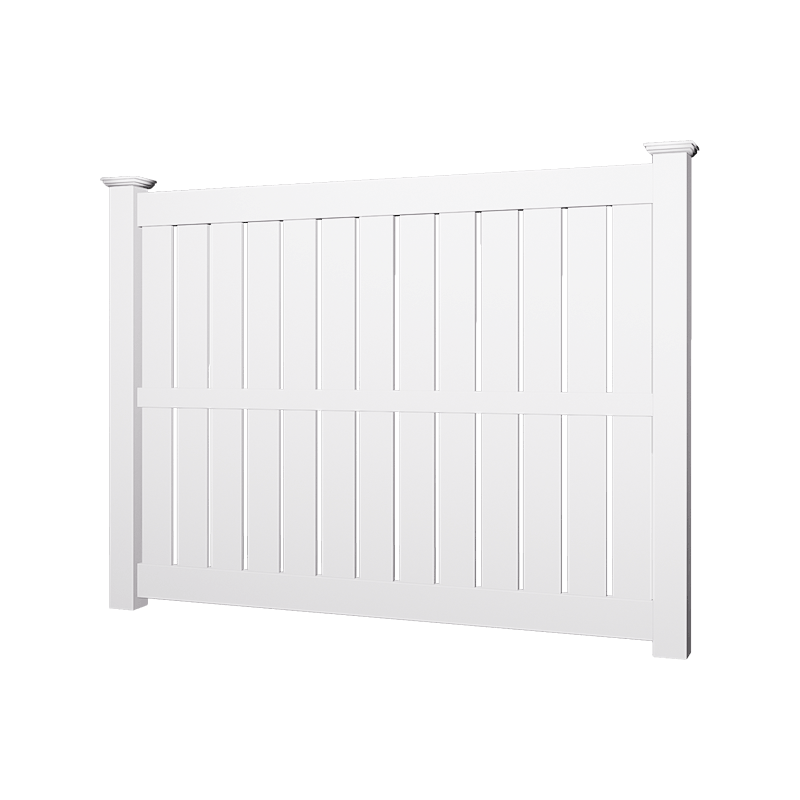

A semi-private panel is a spacing decision as much as a style decision. The picket or slat width, the gap between elements and the number of rails together set how much of a sightline is blocked at eye level, and how much open area remains for light and air. The HFA panel reaches that balance with 23 narrow pickets, the HFB with 13 wider pickets, and the HFC louvered semi privacy fence with 10 horizontal slats that read as a screen rather than a solid wall.

Open area also changes how the fence behaves structurally. A panel with gaps presents less solid surface to wind than a closed privacy panel, which reduces the pressure the assembly has to resist. Final wind performance still depends on the style chosen, the post embedment and the number of horizontal rails, so we confirm those three items together rather than treating the panel as a standalone product.

• Narrow-picket panels give the tightest visual rhythm and suit traditional residential boundaries.
• Wide-picket panels cover more area with fewer components, which shortens assembly time on long runs.
• Louvered panels angle the slats for a modern elevation and are often specified for courtyards and terraces.
• Lattice-top and picket-top variants keep the semi-private field below and add a decorative crown above it.

Material Formulation and Weather Performance

Our fence profiles are extruded from 100% virgin vinyl with no recycled content and no lead. The formulation carries DuPont TiO2 at a 10% loading to resist chalking, together with US or German brand pigments, UV inhibitors, impact modifiers and stabilisers. Raw materials are traceable through the production record.

• Service range rated from -40 to 70 degrees, covering cold-weather installation and high summer exposure.
• Engineered against surface cracking, chipping, peeling and rot across the service life of the fence.
• No staining, sealing or chemical treatment required, and no termite exposure.
• Non-toxic and fully recyclable at end of life.

Panel, Post and Rail Configuration

Every semi-private section is built from the same component set, which keeps ordering and site assembly predictable across a mixed run.

• Posts: 4" x 4" or 5" x 5", pre-routed as line, end, corner, 3-way or blank.
• Rails: bottom, middle and top rails pre-notched for picket insertion; the bottom rail accepts an aluminium insert for commercial strength.
• Post caps: New England, flat or gothic, matched to the post size.
• Colours: white, tan, grey and cream, held consistent across panels, posts, caps and gates.
• Panel kits: supplied with all rails and pickets for the section.

Fabrication: Extrusion to Packing

Production runs through our own extrusion lines and downstream equipment, so profile geometry, hole positions and notch depths stay consistent from the first section to the last. The sequence is fixed for every order:

1. Extrusion of the PVC profile to the specified wall thickness and shape.
2. Cutting to the required length for the panel design.
3. Routing holes into rails so pickets seat correctly.
4. Routing holes into posts so rails insert cleanly.
5. Notching rails for positive location and pull-out resistance.
6. Packing and storage ahead of container loading.

Sections are packed at 0.166 CBM each, which makes container loading predictable for long runs and lets us quote a realistic shipping plan alongside the material list.

Gates, Accessories and System Integration

A boundary is only complete when the openings work. Matching gates are available across the semi-private range, built in the same colour and profile family so the run reads as one system. We set gate leaf width, swing direction and hardware from the opening dimensions supplied with the layout.

Beyond the panel itself, we supply the PVC Fence Gate range and the PVC Fence Profiles & Accessories that complete an installation, including caps, rails and replacement profiles. Distributors who fabricate locally can order cut-to-length profiles and route and notch on their own line.

Quality Control and Compliance Documentation

An independent quality-control group inspects each extrusion line's output every hour, with additional random checks through the shift. Inspection covers profile dimensions, wall thickness, colour consistency and the routed and notched features that determine whether a panel assembles without rework on site.

• Quality system certified to ISO 9001, with SGS and ASTM testing referenced for our vinyl fence profiles.
• CE, RoHS and UL94 documentation available for applicable products.
• Traceable raw materials recorded against production batches.
• Vinyl fence systems carry a 30-year limited warranty.

Installation, Maintenance and Serviceability

Semi-private systems install much like a wood fence, but with the routing and notching already done. Posts arrive pre-routed, rails arrive pre-notched, and components are precut for standard installation. Rails insert into the routed post holes, pickets seat into the rails, and post caps go on after the run is set.

• Treat vinyl posts as you would wood posts; where local practice is to cement wood posts, cement vinyl posts the same way.
• A garden hose rinse handles normal dirt; a mild abrasive cleaner suited to fibreglass surfaces removes stubborn marks.
• Most paint and graffiti lifts with ordinary detergent and water, with 400-grit sandpaper for residue.
• Replacement rails, pickets and caps are available from the same profile family, so repairs do not require a full panel change.
• Installation video guidance is provided with orders.

Information We Use to Configure Your Solution

A quotation is only useful if it matches the site. These are the inputs our engineering and sales team work from when preparing a semi-private fence configuration and price.

Frequently Asked Questions

What separates a PVC semi-private fence from a full privacy fence?

A privacy panel closes the field with tongue-and-groove boards or tightly butted profiles. Our semi-private panels keep a controlled gap between elements: HFA uses 23 pickets at 7/8" x 3" x 68", HFB uses 13 wider pickets at 7/8" x 6" x 63", and HFC uses 10 horizontal louvered slats. That spacing screens sightlines at eye level while letting light and air pass, and it reduces the solid surface area that wind pressure acts on.

Which heights and widths can we order?

Standard section height is 72". Standard widths are 96" for the HFA and HFB panels and 72" for the HFC louvered panel. Different heights and widths are available, and we build to project dimensions where a standard module does not suit the boundary.

Are posts and rails supplied pre-routed and pre-notched?

Yes. Posts are pre-routed as line, end, corner, 3-way or blank in 4" x 4" or 5" x 5". Bottom, middle and top rails are pre-notched, and the bottom rail accepts an aluminium insert for commercial strength. Panel kits include all rails and pickets for the section.

Can gates be matched to the fence?

Matching gates are available across the semi-private range and are built in the same colour and profile family, so the run reads as one system. Gate leaf width, swing direction and hardware are set from the opening dimensions in the layout.

What documentation accompanies an order?

Our quality system is certified to ISO 9001, with SGS and ASTM testing referenced for our vinyl fence profiles, and CE, RoHS and UL94 documentation available for applicable products. Packing lists, section counts and container loading plans accompany each shipment, along with installation video guidance.

How is a semi-private vinyl fence maintained?

A garden hose rinse handles normal dirt, and a mild abrasive cleaner suited to fibreglass surfaces removes stubborn marks. Most paint and graffiti lifts with ordinary detergent and water, with 400-grit sandpaper for residue. No staining, sealing or chemical treatment is required, and replacement rails, pickets and caps are available from the same profile family.
