PVC Fence Screen Manufacturers

PVC Fence Screen Manufacturing at Huazhijie

Deqing Huazhijie Railing & Fencing Co., Ltd. is a PVC Fence Screen manufacturer based in Huzhou, Zhejiang, near Shanghai. We have produced lead-free PVC fence and railing systems since 2003, running our own extrusion, cutting, drilling and notching operations, and we supply screen panels, posts, rails, caps and matching gates as complete, installable sets.

The screen line answers a defined project need: a semi-opaque boundary that screens a view without sealing off air movement. Slat spacing lets wind pass through, which keeps the panel lighter on its posts than a solid board and reduces the sail effect on exposed sites.

Range and Positioning

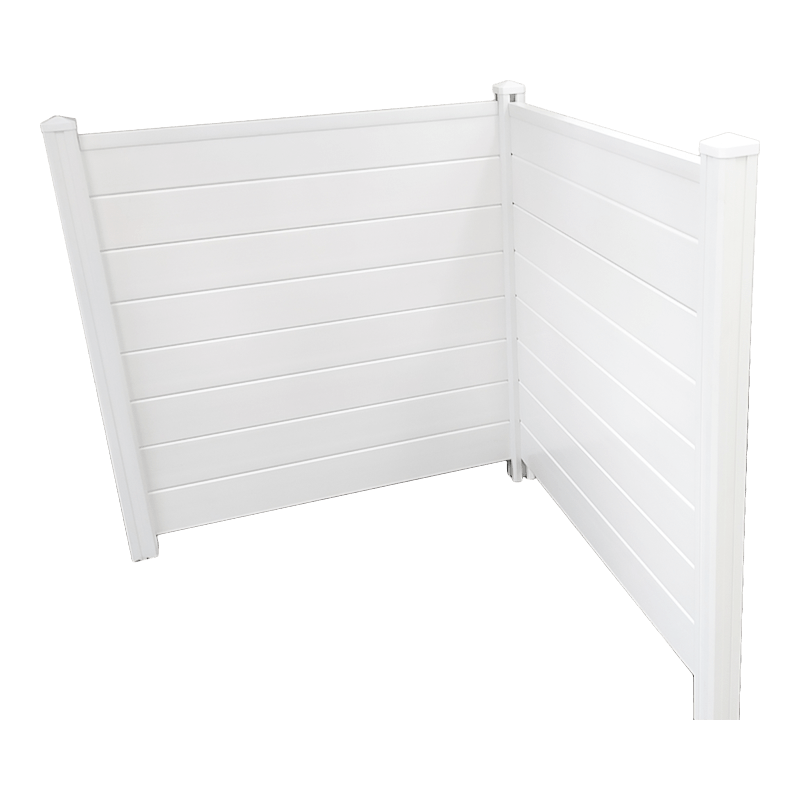

Our screen range sits between decorative picket fencing and fully closed privacy panels. It is built around the flat cap screen section, a modular unit that can be repeated along a run, stepped with a slope, or used as a standalone divider.

• Flat cap screen panels in 1-panel, 2-panel, 3-panel and 4-panel arrangements, with a flat post cap that keeps the top line clean.
• Slatted screen infill that maintains airflow while obscuring equipment, storage yards, service areas and neighbouring sightlines.
• Matching gates produced from the same profiles and colour as the screen run, so access points do not break the visual line.
• Profiles and accessories supplied separately for fabricators who assemble and install on site.

Flat Cap Screen: Critical Specifications

White is the standard finish for the screen line. Where a project mixes screen sections with privacy panels, colour families across the wider fence range include white, tan, grey and cream, which keeps a combined boundary visually consistent.

Application Fit

Screen sections are specified where a boundary has to work quietly rather than dominate the site. Because the infill is slatted, the panel reads as a screen rather than a wall, and air continues to move through the run.

• Residential gardens and patios — screening neighbouring windows, air-conditioning units and service corners.
• Pool and leisure areas — wind reduction around decks and seating, paired with pool and railing fence profiles.
• Commercial outdoor seating — separating tables, deliveries and staff areas without closing the space.
• Utility and equipment enclosures — hiding bins, pumps and storage from public view.
• Urban and public space — defining walkways, planting beds and quiet zones.

Material Formulation and Production Process

Screen profiles are extruded from rigid PVC resin with UV inhibitors, impact modifiers and stabilisers, using titanium dioxide for colour retention and pigments selected for outdoor exposure. Raw materials are kept traceable through the run, and the formulation is lead-free throughout.

1. Extrusion of the post, rail and slat profiles.
2. Cutting to the required section length.
3. Drilling and routing of rail and post holes.
4. Notching of rails for a positive, mechanically keyed assembly.
5. Packing and warehousing ahead of shipment.

Finished systems are rated for service from -40 to 70 degrees Celsius. Wind performance depends on the selected style, post installation and rail configuration, so the post footing and spacing are confirmed against the site exposure rather than assumed from the panel alone.

Configuration Options and System Integration

Screen sections are supplied as a system, not as loose boards. Posts arrive routed, rails are notched, and caps are fitted after assembly, so installation follows the same sequence as a wood fence with precut components.

• Steel ground stakes for soft ground and temporary or relocatable set-ups.
• Concrete-set posts where local practice calls for it, treated the same as timber posts.
• Gate leaves built to match the screen profile, width and colour.
• Shared posts where a screen run meets PVC Privacy Fence panels or a PVC Fence Gate.
• Individual profiles and caps supplied through PVC Fence Profiles & Accessories for fabricators assembling locally.

Quality Control and Acceptance Evidence

An independent quality-control group inspects each extruder's production every hour and carries out additional random checks across the shift. Dimensional checks cover profile geometry, wall thickness and hole positions, which are the variables that decide whether a section assembles cleanly on site.

• CE, ROHS and UL94 certification for the material and product range.
• Quality system documentation including SGS, ASTM, ISO 9001:2000 and TUV Global Manufacturer Certificate.
• 30-year limited warranty on our vinyl fence systems.
• Cleaning and care guidance: a garden hose rinse normally suffices, with mild abrasive cleaner for stubborn marks.

Information We Use to Configure Your Solution

A screen quotation is built from the site, not from a catalogue page. The details below let us fix panel layout, post spacing, packing and loading before the order is confirmed.

• Total run length, corner returns, gate positions and any slope changes.
• Required panel height and width, and the number of panels per section.
• Ground conditions and the intended footing method.
• Colour, finish and whether the screen must match an existing fence run.
• Quantity in sections or linear metres, plus spare posts and caps.
• Destination port, packing preference and container loading constraints.
• OEM or ODM requirements, including profile development and branding.

Packaging, Delivery and Documentation

Screen components are packed in cartons, with posts, rails, slats and caps grouped so that each section can be assembled without sorting on site. We handle OEM and ODM orders and ship to clients across Canada, the USA, Europe, Australia and New Zealand, with documentation prepared to match the agreed packing list and order specification.

Frequently Asked Questions

What sizes and layouts does the PVC Fence Screen come in?

The normal section is 48 in high x 48 in wide, supplied in 1-panel, 2-panel, 3-panel and 4-panel configurations. Other heights and widths are produced to order, using 3 in x 3 in posts and 7/8 in x 6 in or 7/8 in x 3 in rails.

Does the screen block airflow completely?

No. The slatted infill is designed to allow adequate airflow while still obscuring the view behind it. Where a fully closed boundary is required, we supply solid privacy panels from the same material family.

Can the screen be installed without concrete footings?

Yes, for soft ground and relocatable set-ups we supply steel ground stakes that allow a flexible installation. Where local practice is to cement timber posts, the same approach applies to our PVC posts.

Are matching gates available?

Gates are produced to match the screen profile, height and colour, so an access point sits within the same visual line as the rest of the run.

What material and compliance evidence supports the range?

Profiles are extruded from 100% virgin PVC in a lead-free formulation with UV inhibitors, impact modifiers and stabilisers. The range carries CE, ROHS and UL94 certification, with quality system documentation covering SGS, ASTM, ISO 9001:2000 and TUV Global Manufacturer Certificate.

What do you need from us to prepare a quotation?

Send the run length and layout, required panel height and width, panel count per section, ground conditions, colour, gate positions, total quantity, destination port and any OEM or ODM requirements. Our team reviews the working point and returns a configuration and quotation that reflects the actual site.
