PVC Pool Fence Manufacturers

Deqing Huazhijie Railing & Fencing Co., Ltd. has produced PVC fence and railing systems in Huzhou, Zhejiang since 2003, in the manufacturing belt between Shanghai and the Ningbo port corridor. Our PVC Pool Fence manufacturer programme covers closed-picket pool enclosures, horizontal garden rails, handrail and balcony railing, lattice panels and small-picket styles, all extruded from lead-free virgin PVC in our own plant.

Distributors, fence contractors, landscape project managers and OEM buyers use this range for residential pool barriers, front-yard boundaries, garden edges and terrace guardrails. Sections ship pre-notched and posts pre-routed, so a finished run assembles from three components: section, post and gate.

The PVC Railing Fence Range and Where Each Profile Fits

Nine profiles make up the current railing family. They share one assembly logic — routed post, notched rail, inserted picket — while picket geometry and rail count decide how open or closed the finished barrier reads.

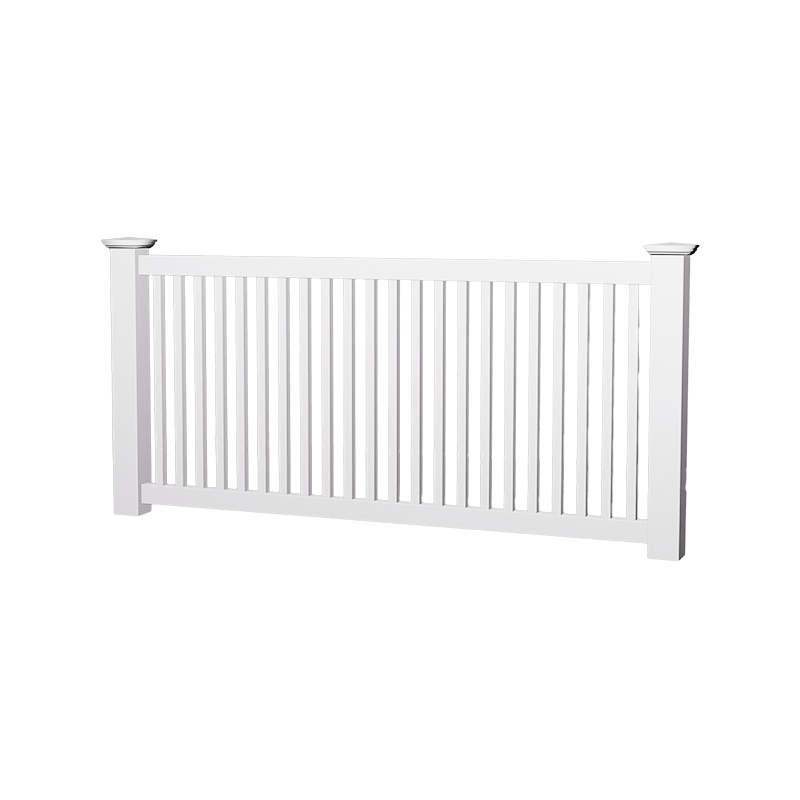

• HBA vertical railing fence — 1-1/2" x 1-1/2" square pickets at 22 per 96" section; the closed-picket look used around pools, front yards and balconies.
• HBB horizontal garden fence — 7/8" x 1-1/2" pickets, 22 per section; a lighter horizontal rhythm for garden and pool surrounds.
• HBC 48" handrail fence — 7/8" x 3" pickets, 15 per section; the profile we supply for pool decks, steps and walkway handrail lines.

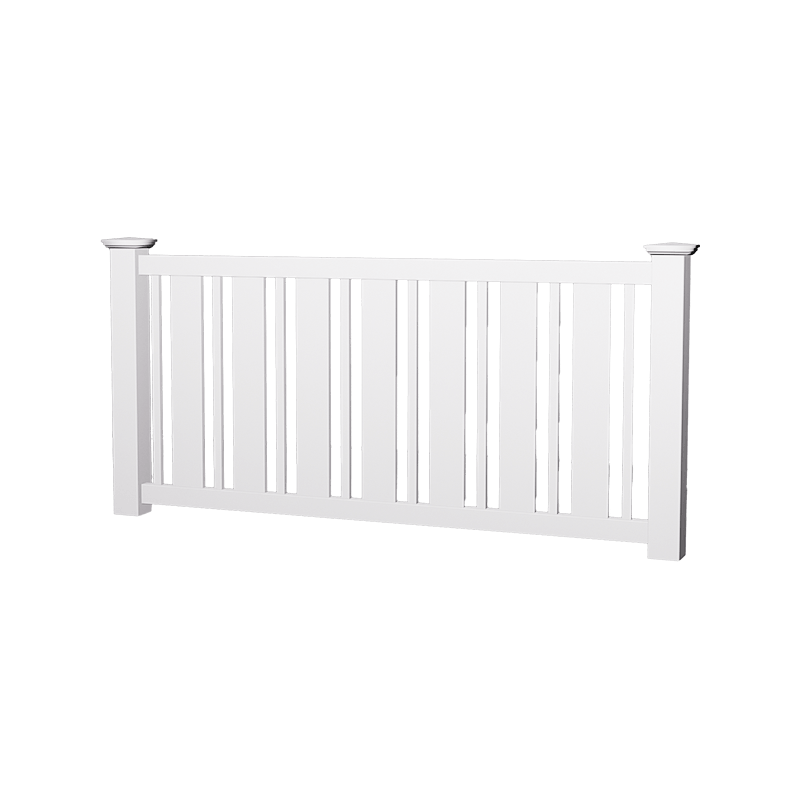

• HBD 7/8" x 6" picket rail fence — narrow pickets on a rail frame for yard and pool railing.
• HBE 48" x 96" 3-rail pool fence — three-rail frame for pool enclosures.

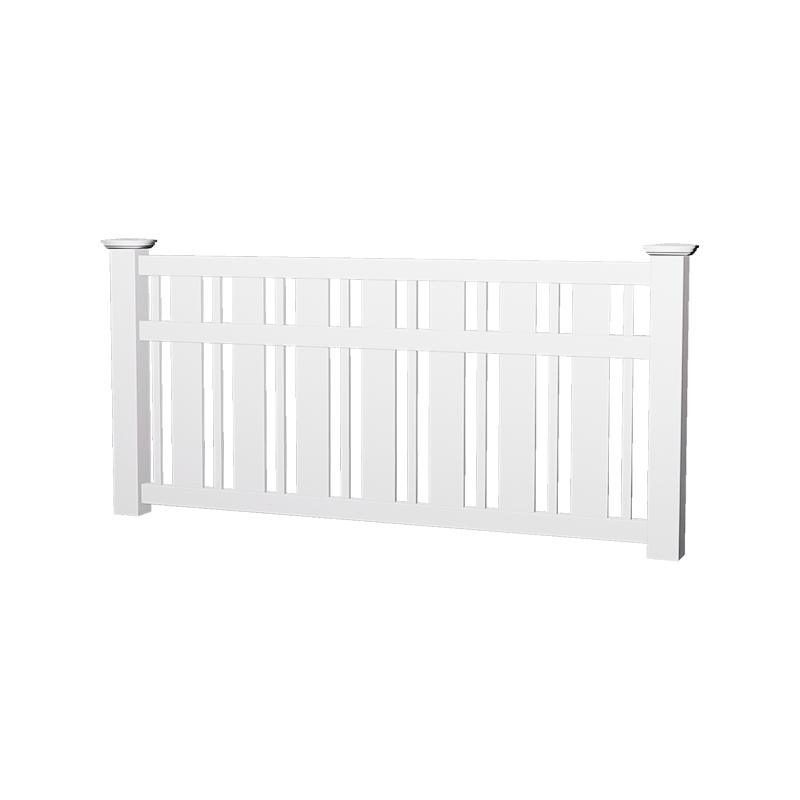

• HBF 7/8" x 3" small picket fence — small-picket spacing for garden and pool edging.

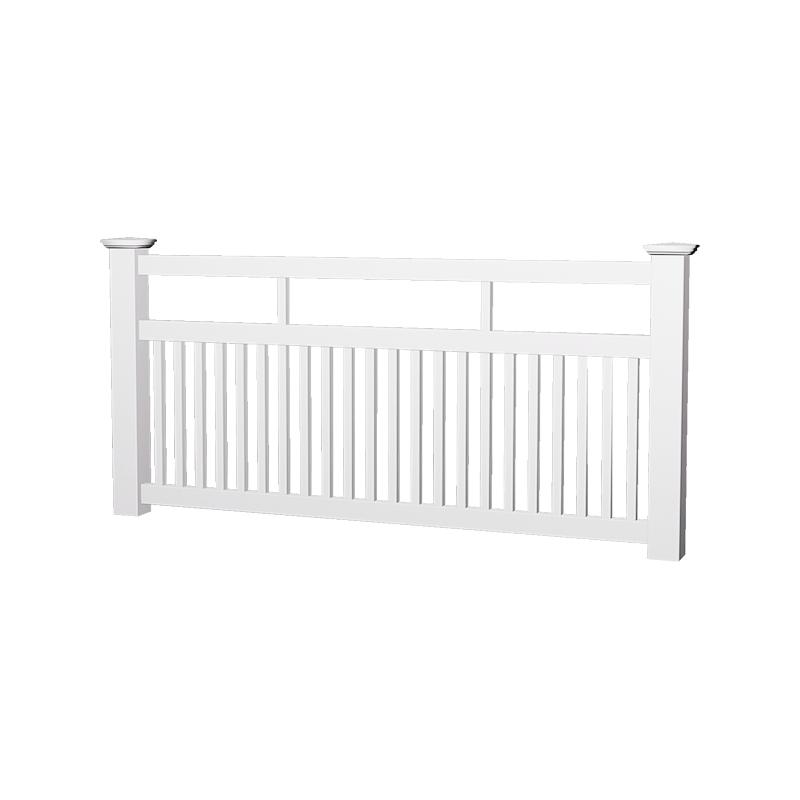

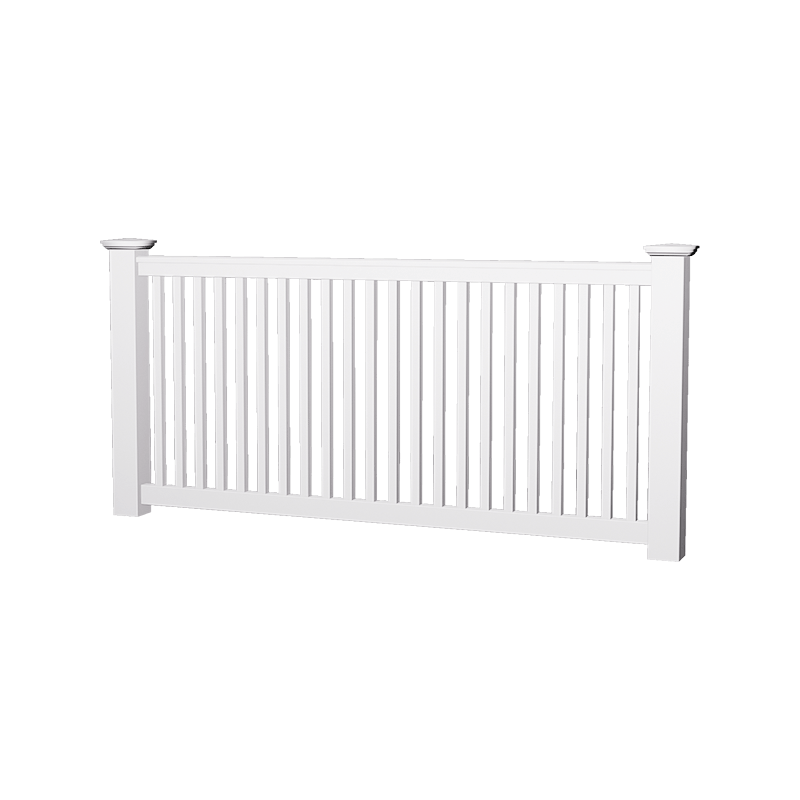

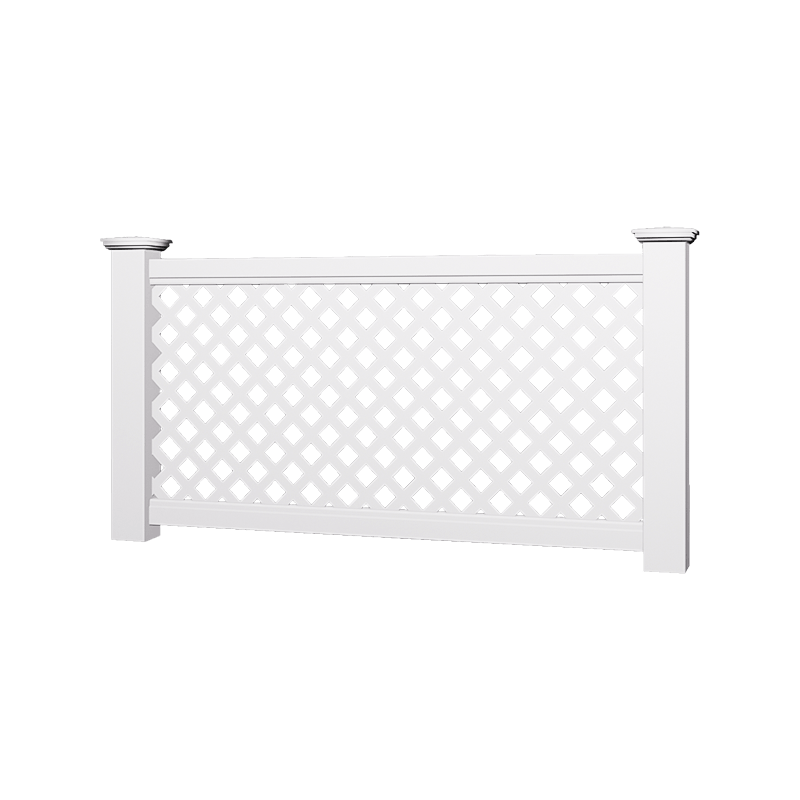

• HBG rail fence, HBJ lattice fence, HBP balcony fence — general railing, decorative lattice screening and balcony guardrail variants.

Material and Profile Construction

Profiles are extruded from 100% virgin PVC with no recycled content and no lead in the formulation. The compound carries UV inhibitors, impact modifiers and stabilizers, plus titanium dioxide at 10 parts per 100 for chalking resistance.

• Frame material: 100% virgin PVC, uncoated, lead-free
• Weathering package: DuPont TiO2 at 10 phr, US or German pigments, traceable resin
• Reinforcement: aluminum insert in the bottom rail for commercial-strength spans
• Rails: top and bottom rails at 2" x 3-1/2" x 94", pre-notched
• Posts: 4" x 4" or 5" x 5", 72" length, pre-routed as line, end, corner, 3-way or blank
• Temperature resistance: -40 to 70 degrees

Critical Specifications and Configuration Options

Standard sections are 48" high and 96" wide, and both dimensions can be produced to other values. Post size, cap style, picket spacing, rail count and colour are fixed at order entry so the schedule matches the drawing.

• Heights: 48" standard; other heights produced to order
• Widths: 96" standard; other widths produced to order
• Colours: white, tan, grey, cream
• Post caps: New England, flat or gothic
• Post routing: line, end, corner, 3-way or blank per position
• Gates: matching leaf built in the same profile and colour, from our PVC Fence Gate range
• Freight planning: 0.08 CBM per standard section

Application Fit — Pool, Balcony and Garden Barriers

The closed-picket profiles — HBA, HBE and HBF — suit pool perimeters where a continuous visual barrier is wanted. HBC's 7/8" x 3" picket and handrail rail suits deck edges, steps and walkways where the top rail doubles as a handhold.

Pool barrier rules differ by country, state and municipality, covering minimum height, ground clearance, picket spacing and gate hardware. We build sections and gates to the dimensions a project's barrier specification calls for. Where a solid screen is needed beside a pool or terrace, our PVC Privacy Fence panels use the same post system and colour range.

Extrusion, Fabrication and Quality Control

Production runs through six controlled stages: extrusion, cutting, drilling, notching, packaging and storage. An independent quality-control group inspects each extruder's output hourly and pulls additional random samples across the shift.

• Raw materials traceable to batch
• In-house extrusion lines and profile tooling
• Rails and posts cut, notched and routed on the same schedule as the sections
• CE, RoHS and UL94 referenced for the material and product family
• SGS, ASTM, ISO 9001 and TUV manufacturer certification held

Installation, Site Conditions and Post Setting

Posts are set the same way as wood posts, and where local practice is to concrete wood posts, vinyl posts are concreted to the same detail. Pre-routed posts take the rails directly, pre-notched rails take the pickets, and caps go on once the run is levelled.

• Assembly sequence: section + post + gate
• Tools: basic hand tools for standard runs
• Sloped or irregular ground: stepped post lines or field-cut rails, planned at survey
• Cleaning: garden hose for normal soiling; mild abrasive cleaner for stubborn marks
• Guidance: installation video supplied with the order

Information We Use to Configure Your Solution

Packaging, Delivery Scope and OEM/ODM Support

Standard sections pack at 0.08 CBM each, which sets container loading for bulk orders. Sections, posts, caps and gates ship as one coordinated set, and replacement rails, pickets and caps are available from our PVC Fence Profiles & Accessories range for later repair work.

We hold more than 500 PVC profiles and take OEM and ODM work: new fence profiles, colour matching, custom sizes and private-label packaging. Product ships to Canada, the USA, Europe, Australia and New Zealand alongside domestic distribution across China.

Frequently Asked Questions

What is the standard size of a PVC pool fence section?

48" high by 96" wide, with 4" x 4" or 5" x 5" posts at 72" length. Both height and width can be produced to other dimensions, and picket spacing is set at order entry.

Which profile suits a pool enclosure versus a balcony?

Closed-picket profiles HBA, HBE and HBF give the continuous barrier look most pool perimeters call for. HBP balcony fence and HBC handrail fence suit elevated decks and balconies where the rail line doubles as a handhold.

Is the material lead-free, and does it need painting?

The formulation is lead-free virgin PVC with no recycled content, and it is not coated. Colour runs through the profile, so there is nothing to paint, and the TiO2 package resists chalking.

How are posts and rails prepared before shipping?

Posts arrive pre-routed as line, end, corner, 3-way or blank, and top and bottom rails arrive pre-notched. The bottom rail carries an aluminum insert for commercial-strength spans.

Can gates be matched to the fence run?

Yes. Gates are built in the same profile, colour and height as the run. Gate hardware is specified by the project or the installer.

What do you need to prepare a quotation?

Run length with corner, end and gate positions; required height, width and picket spacing; profile family and colour; post size and routing; terrain profile; and destination port. From those we return a section, post, cap and gate schedule with packing volume.
