HBP pvc balcony fence

HBP PVC Balcony Fence: Pre-Routed Vinyl Sections for Balconies, Railings and Pool Edges

Deqing Huazhijie Railing & Fencing Co., Ltd. builds the HBP PVC balcony fence as a complete section system — posts, rails, pickets, caps and matching gates — produced in Huzhou, Zhejiang, near Shanghai, where we have manufactured PVC fence profiles since 2003. The HBP line serves balcony guards, railing runs, pool surrounds, front yards and garden boundaries where a clean sightline, low maintenance and predictable site assembly matter more than ornament.

Each section leaves our factory pre-routed and pre-notched, so assembly follows the logic of a wood fence without the rot, splintering or repainting cycle. As an HBP pvc balcony fence manufacturer, we supply section, post and gate as one coordinated package rather than loose profiles.

The HBP Section, Component by Component

Reading the HBP Specification

The numbers on the HBP data sheet are not decorative; each one drives how the fence behaves on a balcony slab, a pool deck or a railing run.

• 48" height — the standard guard height for balcony and railing work, with other heights available when a project drawing calls for a different line.
• 96" width — a full bay between posts; widths are adjusted when pier spacing or slab edges do not fall on a 96" module.
• 22 pickets at 1-1/2" square — the spacing balances an open sightline with a closed barrier, and the square profile keeps the section visually consistent from either side.
• Aluminium insert in the bottom rail — the lower rail carries the greatest concentrated load, so the insert adds stiffness where it counts.
• 0.08 CBM per section — freight planning starts here, before pallet configuration and container mix are finalised.

Configuration Options

Four colours cover most architectural palettes: White, Tan, Grey and Cream. Post size, routing pattern, cap style and rail profile are selected together, because a 5" x 5" post with 3-way routing changes the section geometry compared with a 4" x 4" line post.

• Posts: 4" x 4" or 5" x 5", routed as Line, End, Corner, 3-way or blank for field cutting.
• Caps: New England, Flat or Gothic, in the same colour as the section.
• Rails: standard bottom and decorative top rail, or an alternative profile such as a handrail for stair and ramp runs.
• Gates: matching gates so a balcony or pool enclosure closes with the same profile family.
• OEM and ODM: profile and style development against customer drawings, including custom sizes.

Where the HBP Fence Fits

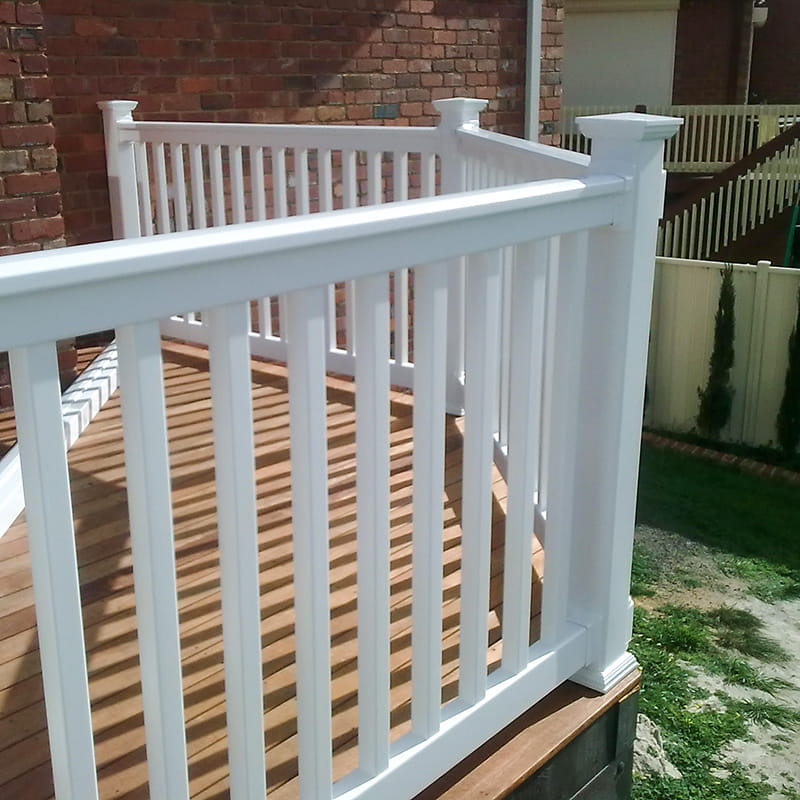

The HBP section is used for pool fencing, front yard fencing, garden fencing, and balcony and railing applications. On balconies and terraces it works as a guard where the slab edge is straight and posts can be anchored at regular centres. Around pools and water features it provides a continuous visual barrier without the corrosion risk of painted steel.

Where a project needs a different rhythm along the same elevation, the HBA pvc vertical railing fence and the HBC 48" pvc handrail fence share the same post and rail logic, and the HBE 48"x96" 3 rails pool fence extends the family to three-rail pool enclosures. Local pool barrier rules vary by jurisdiction; we supply the section geometry and confirm heights and picket spacing against the dimensions you specify.

Material, Extrusion and Quality Control

HBP profiles are extruded from 100% virgin PVC with no recycled content and no lead. UV protection comes from titanium dioxide at 10 parts per 100, supported by US or German brand pigments, and the raw materials we use are traceable through the production record. The compound is formulated for long-term durability, flexibility and weather resistance, with service temperature from -40°C to 70°C.

Production runs through extrusion, cutting, hole drilling, notching, packaging and storage. An independent quality-control group inspects each extruder's output hourly and carries out additional random checks, so routing positions and notch depths stay consistent across a batch.

• CE, ROHS and UL94 certificates held for the relevant product scope.
• SGS, ASTM, ISO 9001:2000 and TUV Global Manufacturer certification.
• Lead-free, environmentally friendly PVC guardrail formulation across the range.
• 30-year limited warranty on vinyl fence and railing products.

Installation and Site Interfaces

Posts arrive routed and rails arrive notched, so the section assembles by inserting rails into the post and pickets into the rails, then setting the post caps once the fence line is fixed. The heavier post-and-rail wall configuration and notched rails increase resistance to pull-out and give a stronger fastening than plain butt joints.

Post anchoring follows local practice for wood posts: where wood posts are normally set in concrete, vinyl posts are set the same way. The ordering formula is deliberately short — section plus post plus gate equals a complete fence — and we provide installation video guidance and technical support for first-time crews.

Information We Use to Configure Your Solution

We prepare a configuration and quotation from the project data below. The more precisely the site is described, the fewer assumptions sit inside the proposal.

Packaging, Delivery and Documentation

Sections are packed by profile type so that posts, rails, pickets and caps arrive as a matched set for each elevation. With 0.08 CBM per section, loading quantity is calculated against the container type and the gate and post mix in the same shipment. Orders are completed on time, according to quality and quantity, and we welcome OEM and ODM work alongside catalogue supply.

Documentation follows the order: component schedule, packing list and the certificate set relevant to the product scope. Installation video guidance and technical support are provided for crews assembling the system for the first time.

Frequently Asked Questions

What is the standard size of the HBP PVC balcony fence?

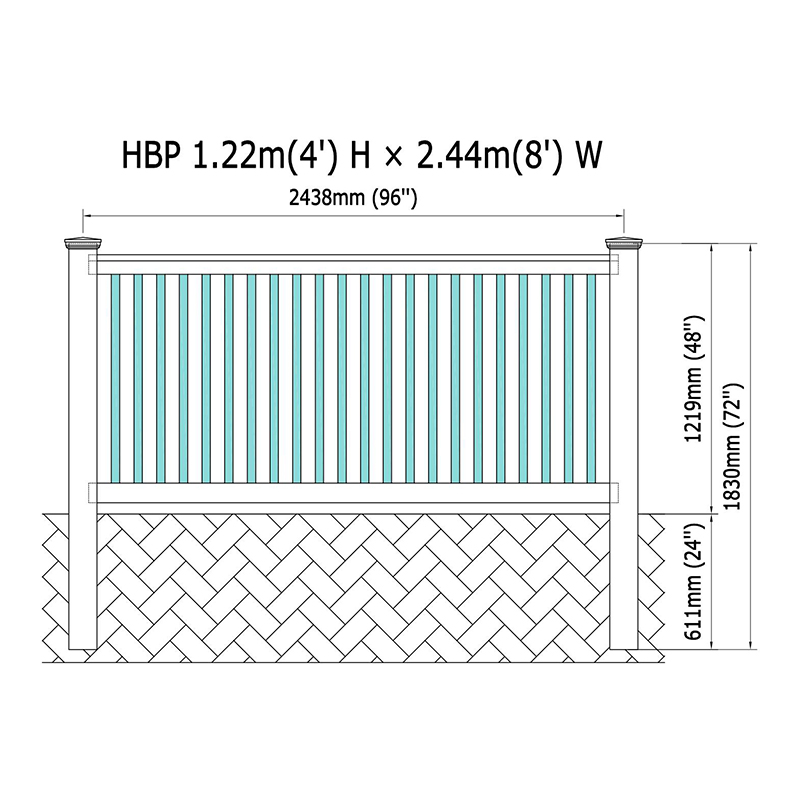

The standard section is 48" high and 96" wide, built from 22 pickets measuring 1-1/2" x 1-1/2" x 40", with a 2" x 3-1/2" x 94" pre-notched bottom rail and a 3-1/2" x 3-1/2" x 94" decorative top rail.

Can the HBP fence be produced in other heights and widths?

Yes. Heights and widths other than 48" x 96" are available, and posts can be supplied at 72" or other lengths. We confirm the final dimensions against your bay layout before production.

What gives the HBP section its stiffness?

An aluminium insert runs inside the bottom rail, where load concentrates, and the post-and-rail wall thickness plus notched rail joints add resistance to pull-out compared with plain butt connections.

Which colours and post caps are available?

White, Tan, Grey and Cream, with New England, Flat or Gothic post caps. Posts come in 4" x 4" or 5" x 5" and are pre-routed as Line, End, Corner, 3-way or blank.

Does the HBP fence come with a matching gate?

Yes. Matching gates are produced in the same colour and profile family, so a balcony, terrace or pool enclosure closes with a consistent appearance.

How many sections fit in a container?

Each section occupies 0.08 CBM. Loading quantity depends on the container type and the post and gate mix in the order, and we calculate it when the component schedule is confirmed.
