HEC pvc picket top panel fence

Deqing Huazhijie Railing & Fencing Co., Ltd. has produced PVC fence profiles and complete fence systems since 2003 from our plant in Deqing, Zhejiang, near Shanghai. The HEC pvc picket top panel fence manufacturer range is our privacy panel with a decorative picket crown: a solid tongue-and-groove infill below, a row of square pickets above, held by pre-notched rails and pre-routed posts. We ship it as a complete section — panel, rails, pickets, U-channel, posts and caps — with matching gates, for residential boundaries, villa and estate perimeters, farm and yard enclosures and light commercial screening.

A Picket Crown Over a Solid Privacy Panel

The HEC profile solves a common conflict in boundary fencing: the street side should read as a traditional picket fence, while the property side needs full visual screening. We build both into one section instead of stacking two fences.

• Solid tongue-and-groove infill in 7/8" x 11.3" x 50" boards (8 pieces) or 7/8" x 6" x 50" boards (16 pieces) per section.
• Seventeen pickets at 1-1/2" x 1-1/2" x 12.6" form the upper crown, giving the fence its picket silhouette.
• Pre-notched rails and pre-routed posts remove field routing from the installation sequence.
• An aluminum insert runs inside the bottom rail for commercial-strength reinforcement.
• Profile material is 100% virgin PVC, uncoated, chosen for elasticity and impact resistance.

Component Schedule and What Each Dimension Means

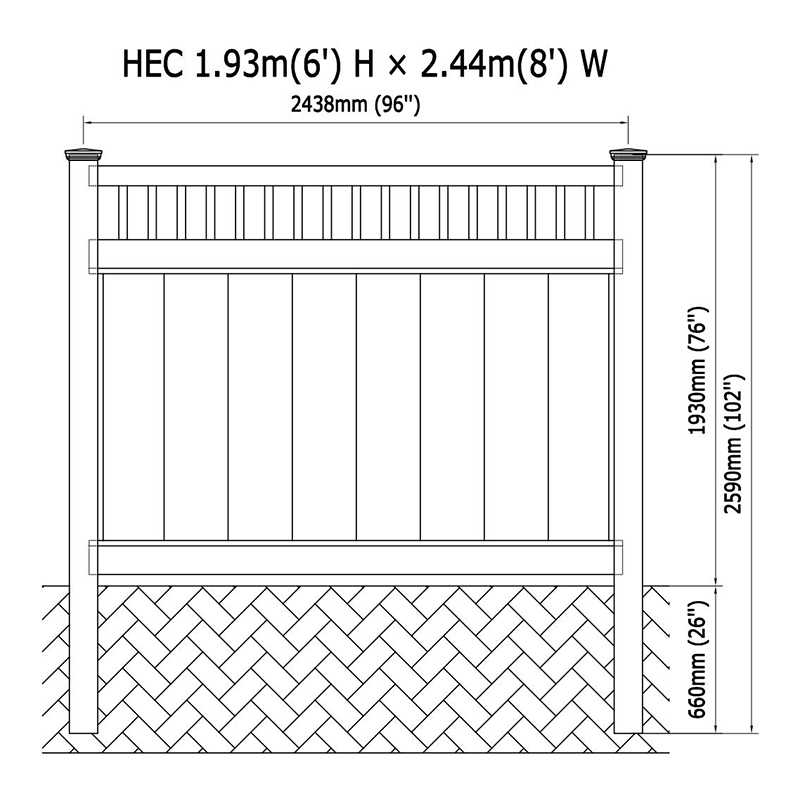

Every HEC section is a fixed bill of profiles. The rail lengths are cut at 94" so they seat between posts inside the nominal 96" section width, and the notches are positioned at the factory rather than on site.

Configuration Options We Build

Standard HEC sections run 72" high and 96" wide, and we adjust both dimensions for projects that need a different module. Colour is applied across posts, rails and caps so a run can be single-tone or deliberately contrasted.

Where the HEC Panel Fits

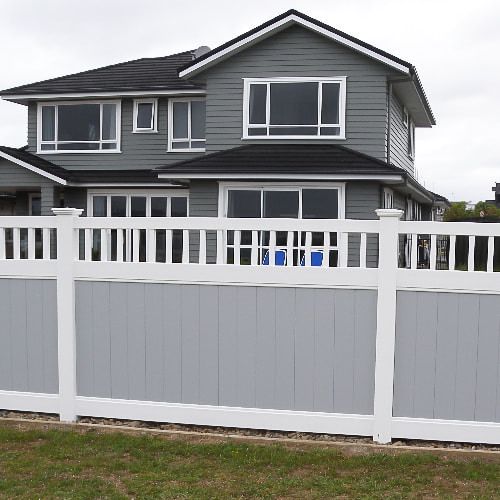

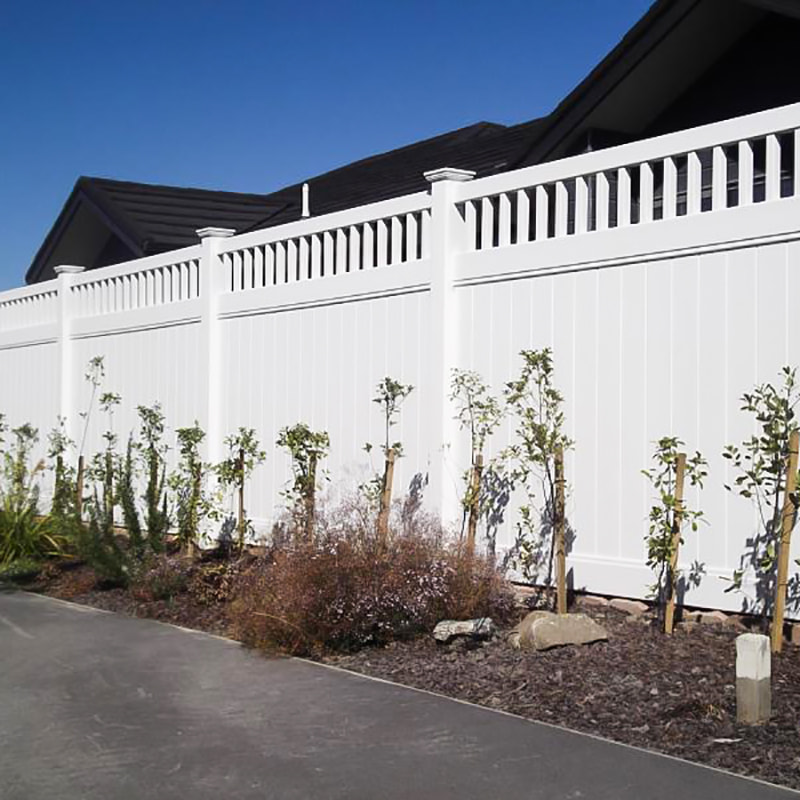

The picket crown keeps the fence visually open at the top while the panel below blocks sightlines at eye level, which suits boundaries that face a street, a shared driveway or a neighbouring plot.

• Garden and home boundaries where a traditional front-yard appearance is required.
• Villa, estate and country-yard perimeters that need privacy without a solid wall look.
• Farm and warehouse yards used for light screening and perimeter definition.
• Balcony and temporary screening where a demountable, low-maintenance panel is preferred.
• Commercial frontages where the aluminium-reinforced bottom rail is specified.

Projects that need a fully closed face rather than a picket crown are covered by the HEA pvc privacy panel fence 6'x8', and decorative top treatments are covered by the HEB pvc lattice top privacy fence.

Installation and Site Interfaces

HEC assembles much like a wood fence, but the routing and notching are already done. Posts arrive pre-routed for their position in the run, rails arrive pre-notched, and the U-channel closes the panel edges.

1. Set posts at the spacing defined by the 94" rail length, using the same footing practice applied to wood posts in the project region.
2. Insert the bottom, middle and top rails into the routed post holes.
3. Slide the tongue-and-groove boards into the rails and fit the U-channel at both ends.
4. Seat the pickets into the top rail and fix the post caps after the run is complete.

We provide video installation guidance and technical support for the assembly sequence, and gates are built to match the fence so the swing and latch hardware line up with the post routing.

Manufacturing, Quality Control and Compliance Evidence

Our extrusion lines run the full profile range in house, followed by cutting, hole drilling, notching, packing and storage. An independent quality-control group inspects each extruder's production every hour and carries out additional random checks through the shift.

• Formulation uses 100% virgin vinyl with no recycled material and no lead, plus DuPont TiO2 at 10 parts per 100 for non-chalking performance.
• Pigments are US or German brand, and PVC resin is domestically sourced; raw materials are traceable through production.
• Certification held includes CE, ROHS and UL94, alongside SGS, ASTM, ISO 9001:2000 and TUV Global Manufacturer certification.
• Temperature resistance is stated from -40°C to 70°C; wind performance depends on fence style, post installation and rail configuration.
• Fence and railing products carry a 30-year limited warranty.

Customization, OEM and ODM

We hold more than 500 PVC profile styles and welcome OEM and ODM orders, including customer-specific sizes and new profile development. Project design support is available where a distributor or contractor needs a fence style adapted to a local market, and our engineering team can develop new profiles and styles from a customer brief.

Information We Use to Configure Your Solution

A quotation for HEC sections is prepared from the working layout, not from a single part number. The details below let us fix the bill of profiles, the post routing mix and the packing plan in one pass.

• Total run length, corner count and the number of line, end, corner, 3-way and blank posts required.
• Required height and width per section, and whether the standard 72" x 96" module applies.
• Colour selection for posts, rails and caps, including any two-tone combination.
• Panel slat choice: 7/8" x 11.3" wide boards or 7/8" x 6" narrow boards.
• Post size, cap style and whether the aluminium bottom-rail insert is specified.
• Gate quantity, opening width and hinge side.
• Site wind exposure, post-setting method and any local acceptance requirements.
• Order quantity, destination port, packaging and labelling instructions.

Packaging, Delivery Scope and Support

One HEC section occupies 0.166 CBM, which gives a reliable starting point for container loading calculations once the section count and post count are known. The delivery scope follows the ordering model we use across the range: section plus post plus gate equals a complete fence. Replacement profiles, caps and rails are supplied from the same tooling, so a later extension matches the original run.

Frequently Asked Questions

What is included in one HEC section?

Each section contains one bottom rail, one middle rail, one top rail, seventeen pickets, two U-channels and either eight wide or sixteen narrow tongue-and-groove boards. Posts, post caps and gates are ordered separately so the routing mix matches the layout.

Can the fence be supplied at a height or width other than 72" x 96"?

Yes. The 72" height and 96" width are our standard module, and we produce other heights and widths on request. Changing the module changes the rail and panel cut lengths, so we confirm the target dimensions before releasing the profile schedule.

Is the HEC panel suitable for commercial installations?

The bottom rail accepts an aluminium insert, which we specify for commercial-strength reinforcement. Combined with the heavier post and rail configuration and the notched rail joints, this gives greater resistance to pullout than a light residential assembly.

How are the posts set, and should they be cemented?

We recommend treating vinyl posts the same way as wood posts. Where local practice is to cement wood fence posts, cement the vinyl posts to the same depth and diameter. Post spacing follows the 94" rail length so the rails seat correctly in the routed holes.

Can gates be matched to the fence?

Matching gates are available in the same profile and colour as the HEC run. Provide the opening width and hinge side and we build the gate to suit the post routing.

What colours and cap styles are available?

Colours are White, Tan, Grey and Cream, and posts, rails and caps can be specified in different colours for a contrasted look. Post caps include the New England Cap, Flat Cap and Gothic Cap, with crown caps also available for picket fence runs.
