HED privacy vinyl fence 6ft height

Deqing Huazhijie Railing & Fencing Co., Ltd. is a PVC fence manufacturer based in Huzhou, Zhejiang, near Shanghai, producing the HED privacy vinyl fence 6ft height manufacturer line alongside picket, pool, horse, semi-private and accessory profiles. Established in 2003, we extrude, cut, drill and notch every component in-house, so a HED section arrives as a matched kit of posts, rails, pickets or tongue-and-groove panels, U-channels and caps rather than loose profiles. The 72-inch HED system serves residential boundaries, villa perimeters, garden screening and light commercial enclosures where full visual blocking, wind resistance and low maintenance matter more than an open rail look.

Where the HED 6ft Privacy Vinyl Fence Fits

A 72-inch panel height is the working standard for privacy because it blocks sightlines from standing eye level while keeping the fence within typical residential height limits. The HED build is a full-infill system: solid T&G panels or a picket array captured between a top, middle and bottom rail, with the bottom rail carrying an aluminum insert for commercial-grade stiffness.

• Residential and villa perimeters — property division, side-yard screening and pool-adjacent privacy where a clean, uniform face is required.
• Garden and courtyard enclosure — windbreak and visual screening around planting, patios and outdoor living areas.
• Farm, warehouse and country-yard boundaries — durable perimeter marking that does not need painting, staining or termite treatment.
• Distributor and contractor programs — repeatable section kits that install the same way on every job, with OEM color and profile options.

Section Anatomy and Specification Meaning

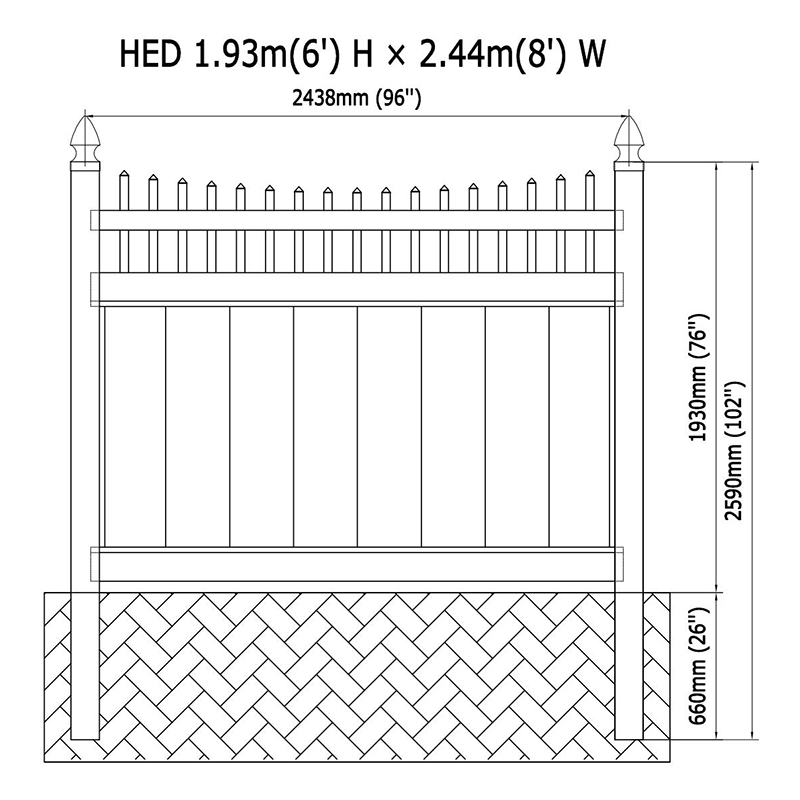

Each HED section is a defined bill of profiles. The dimensions below are the standard 6ft configuration; the rail and picket lengths are cut to suit the finished section width, and the post length of 102 inches allows for burial depth plus the panel height and cap.

T&G Panel Options and Privacy Coverage

The tongue-and-groove infill is what separates the HED from an open picket fence. Both panel options close the full 72-inch face with interlocking edges, so there are no see-through gaps between boards and no fasteners showing on the finished elevation.

• 8-piece 7/8" x 11.3" x 50" panel — wider boards, fewer joints, a flatter and more architectural face; faster to handle on site.
• 16-piece 7/8" x 6" x 50" panel — narrower boards with a denser, more traditional board-on-board appearance and more uniform shadow lines.
• Mixed infill — the same section frame accepts the 17-piece 1-1/2" picket array where a semi-open look is preferred.

Related privacy builds share the same post and rail architecture. The HEE 6' height T&G panel PVC fence uses the same 72-inch standard, and the HEF T&G privacy panel is available where a panel-only supply is required. Where a decorative top edge is wanted, the HEB PVC lattice top privacy fence adds a lattice band above the solid infill.

Post Sizing, Routing and Layout Configurations

Posts are supplied pre-routed, which removes the most error-prone step from site work. We route to the position type you specify, so a run is assembled from the correct post for each location rather than drilled on site.

Material Formulation and Climate Boundaries

HED profiles are extruded from 100% virgin PVC with no recycled content and no lead. The formulation carries UV inhibitors, impact modifiers and stabilizers, with titanium dioxide dosed at 10 parts per 100 using DuPont TiO2, plus US or German brand pigments. Raw materials are traceable through the extrusion line.

• Temperature range — the fence is rated for service from -40°C to 70°C, covering Canadian and northern US winters through hot inland summers.
• Wind behavior — resistance depends on fence style, post embedment and rail configuration; the aluminum insert in the bottom rail and the heavier post wall both contribute to stiffness.
• Surface performance — engineered against cracking, chipping, peeling and rot, with TiO2 protection against chalking.
• Maintenance — a garden hose rinse handles normal soiling; mild abrasive cleaners remove stubborn marks, and graffiti generally lifts with detergent and water.

Installation Sequence and Site Interfaces

A HED run installs much like a wood fence, but without cutting or drilling on site. Posts are set first, then rails slide into the pre-routed post holes, infill drops into the notched rails, and caps are fitted last. We recommend treating vinyl posts the same way as wood posts in your region — where local practice is to cement wood posts, cement the vinyl posts to the same depth.

1. Set and align posts at the specified spacing, checking plumb and line before backfill or concrete cure.
2. Insert top, middle and bottom rails into the routed post openings; the notched rail ends seat into the post wall.
3. Slide T&G panels or pickets into the rail notches and close the ends with the 1" x 1" U-channels.
4. Fit post caps, then hang the matching gate on its posts and check swing clearance.

We supply video installation guidance and technical support with the order so the crew works from the same sequence we use in the factory.

Quality Control and Acceptance Evidence

An independent quality-control group inspects each extruder's production every hour and carries out additional random examination, so profile dimensions, wall thickness and surface finish are checked through the run rather than at the end. Production moves through extrusion, cutting, drilling, notching, packing and storage under one roof in our 4,800 m² facility.

• CE, ROHS and UL94 certificates held for the relevant product scope.
• SGS, ASTM, ISO 9001:2000 and TUV Global Manufacturer certification referenced in our quality system.
• 30-year limited warranty on vinyl fence and railing products, transferable and non-prorated.
• Lead-free, virgin-vinyl formulation with traceable raw material sourcing.

Ordering Scope, Packaging and Delivery

Ordering follows a simple build rule: section + post + gate = complete fence. Each section occupies 0.166 CBM, which makes container loading predictable when you are planning a mixed shipment of panels, posts and gates. We also run OEM and ODM programs, with more than 500 PVC profile styles available and new fence profiles developed against customer drawings.

Products ship to Canada, the USA, European countries, Australia, New Zealand, Russia, Poland and African markets, and we welcome factory visits to review profiles, samples and the extrusion line before a program starts.

Information We Use to Configure Your Solution

Send the following and we can return a section-by-section configuration and quotation without a round of clarification.

• Total linear run, number of corners, ends and 3-way junctions, plus gate opening widths.
• Required height and section width, if different from 72" x 96".
• Infill preference: 8-piece or 16-piece T&G panel, or the 17-piece picket array.
• Post size (4" x 4" or 5" x 5"), post cap style and color scheme, including any mixed post, rail or cap colors.
• Site conditions: soil type, frost depth, typical wind exposure and whether posts will be cemented.
• Destination port, target container quantity and any OEM marking or packaging requirements.

Frequently Asked Questions

What is included in one HED 6ft privacy vinyl fence section?

A section comprises the top, middle and bottom rails, the T&G panels or picket infill, two U-channels for the panel ends, and the post cap. Posts are ordered separately by position type so the routing matches your layout, and gates are quoted to the opening size.

Can the fence be supplied at heights other than 72 inches?

Yes. The 72-inch height is our standard, and we produce other heights and section widths to suit the project. Tell us the finished height and width and we will confirm the rail and infill cut lengths for that configuration.

Which post size and cap should be specified?

The 4" x 4" post suits standard residential runs, while the 5" x 5" post gives a heavier visual weight and greater stiffness on longer or more exposed runs. Caps are available in New England, Flat and Gothic profiles and can be supplied in a contrasting color to the posts and rails.

What does the 0.166 CBM section volume mean for shipping?

It is the packed volume of one section and is the figure we use to calculate container loading. Because posts and gates add volume separately, we quote the full bill of materials against your run length so the loading plan is accurate before the order is placed.

Does the HED fence accept a matching gate?

A matching gate is available in the same profile, color and infill as the fence, so the entrance reads as part of the same run. Provide the clear opening width and we will size the gate and its posts accordingly.

How does the vinyl perform in cold and hot climates?

The formulation is rated from -40°C to 70°C and is built with UV inhibitors, impact modifiers and DuPont TiO2 at 10 parts per 100 to resist chalking and surface degradation. Wind performance depends on the fence style, post embedment and rail configuration, which is why we confirm site exposure and post-setting practice before finalizing the configuration.
