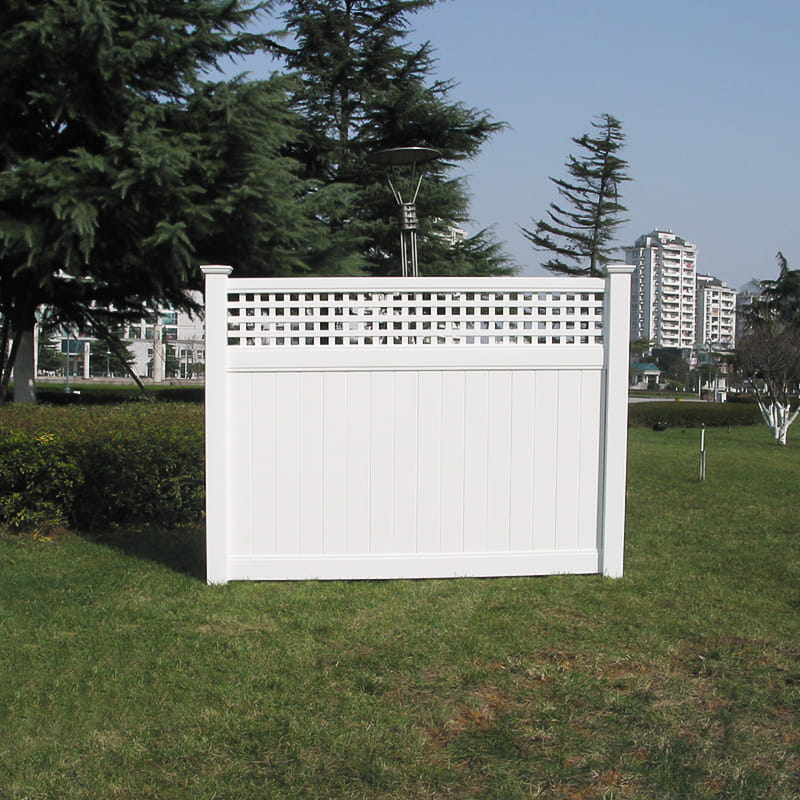

HEE 6'height T&G panel pvc fence

A 72-Inch Tongue-and-Groove Privacy System Built in Huzhou

Deqing Huazhijie Railing & Fencing Co., Ltd. produces the HEE 6'height T&G panel pvc fence manufacturer range as a complete privacy assembly: 72" tall sections built from pre-notched rails, factory-routed posts and interlocking tongue-and-groove panels. We have manufactured PVC fence and PVC flooring from our Huzhou facility near Shanghai since 2003, and the HEE profile is extruded, cut, drilled, notched and packed on our own lines.

The system is specified for residential perimeters, villa and estate boundaries, farm and country-yard screening, warehouse and yard enclosure, and balcony or temporary privacy where a solid, low-maintenance screen is required. Because every bay is a kit of post, rails and panels, the same profile serves a single replacement section and a multi-container project.

• 100% virgin PVC, lead-free formulation, uncoated through the wall section
• Standard height 72", with different heights available on request
• Standard width 96", with different widths available on request
• Colours: white, tan, grey and cream, with posts, rails and caps selectable independently
• Matching gate available so the run closes as one continuous design

What Ships in One HEE Section

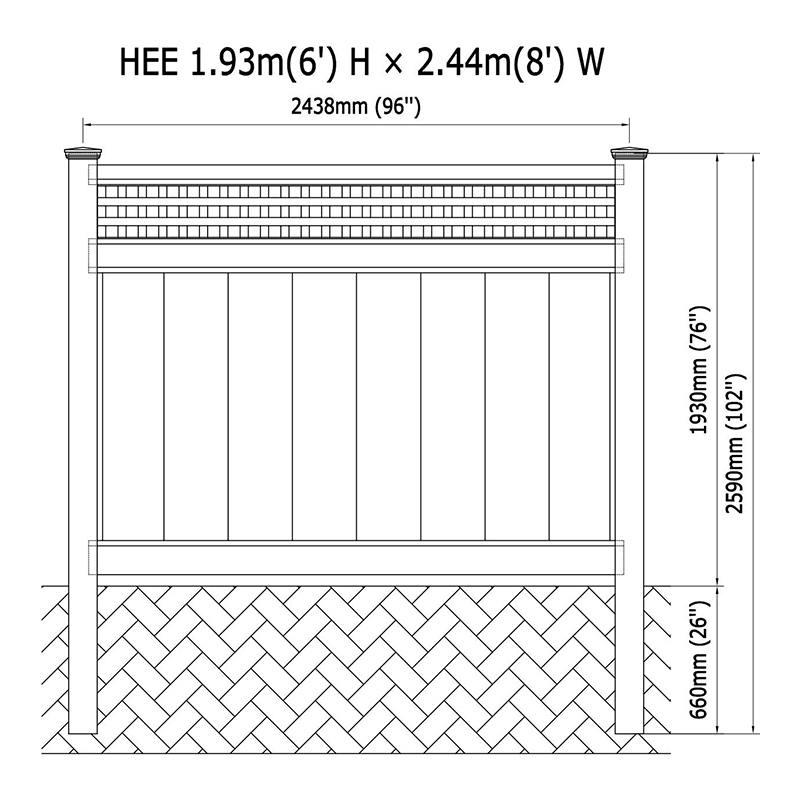

A section is not a single moulded panel. It is a set of routed and notched components that assemble on site without cutting, which is why the packing list matters as much as the profile drawing.

Choosing the Panel Format: 11.3" or 6" Slats

Both panel formats reach the same 50" panel field height and the same 72" finished fence height. The difference is the vertical rhythm of the face and the number of pieces handled per bay.

Both formats use the same rails, posts and U-channels, so a project can standardise on one section kit and still vary the visual character between elevations.

Posts, Routing and Layout Configurations

Posts arrive pre-routed so the rail positions are fixed at the factory rather than marked on site. We route to the layout the drawing calls for:

• Line post — straight runs between two sections
• End post — run terminations and gate posts on one side
• Corner post — 90-degree changes of direction
• 3-way post — T-junctions and internal subdivisions
• Blank post — drilled or routed on site where a non-standard interface is required

Post size is selected against the exposure of the site and the gate loads carried: 4" x 4" for standard residential runs, 5" x 5" where a heavier visual line or additional stiffness is wanted. Post caps in New England, Flat or Gothic profiles close the top and can be colour-matched or contrasted with the rails.

Material, Colour and Climate Behaviour

The HEE profile is extruded from 100% virgin PVC with no recycled content and no lead. UV protection comes from titanium dioxide in the formulation, and pigments are sourced from established US and German suppliers, so colour is held through the wall of the profile rather than applied as a coating that can flake.

White, tan, grey and cream are the standard colours. Posts, rails and caps can be specified in different colours within the same run, which is how many distributors build a differentiated local offer from one section kit.

Installation Sequence and Site Interfaces

Installation follows the same logic as a wood fence, with the cutting already done. Posts are set first, using the same footing practice the site would use for timber posts — where local practice is to cement wood posts, we recommend cementing the vinyl posts to the same depth and diameter.

1. Set and align posts to the string line, checking spacing against the 94" rail length.
2. Insert the pre-notched bottom, middle and top rails into the routed post holes.
3. Slide the T&G panels into the rail notches and capture the ends with the U-channels.
4. Fit post caps last, after the rails are seated and the bay is plumb.

The aluminum insert in the bottom rail is the component that lifts the assembly beyond light residential duty, because it stiffens the rail that takes the greatest ground-level load. Wind performance depends on the combination of post size, footing depth and rail configuration, so we confirm the post and footing schedule against the exposure of the site rather than quoting a single figure for every installation.

Gates and System Completion

A privacy run is only finished when the access points match. We build gates to the same profile, colour and panel format as the HEE sections, so the fence line reads as one continuous design. The ordering logic is deliberately simple: section + post + gate = complete fence.

Where a project needs a different face treatment on the same structural system, the HEF T&G privacy panel and the HEG pvc T&G panel share the same tongue-and-groove construction, and the HED privacy vinyl fence 6ft height covers projects that want a 72" privacy line with a different panel build.

Quality Control, Certificates and Warranty

Production runs through six controlled stages: extrusion, cutting, drilling, notching, packaging and storage. An independent quality-control group inspects each extruder's output every hour and carries out additional random checks, so a deviation is caught at the line rather than at the loading dock.

• CE, ROHS and UL94 certificates held for the relevant product scope
• SGS, ASTM, ISO 9001 and TUV Global Manufacturer certification
• Traceable raw materials: virgin PVC resin, titanium dioxide and pigments
• 30-year limited warranty on the vinyl fence range
• OEM and ODM orders supported, including new profile and style development

For project handover we supply the section packing list, component drawings and installation video guidance, and we can prepare documentation aligned to the acceptance requirements of the destination market.

Information We Use to Configure Your Solution

A quotation for the HEE system is built from the site, not from a catalogue page. These are the inputs that let us return a complete section, post and gate schedule:

• Total run length and corner count — converts into section quantity and the line, end, corner and 3-way post split
• Required height and width — 72" and 96" are standard; other dimensions are produced to order
• Panel format — 11.3" or 6" slats, and whether the two are mixed across elevations
• Colour schedule — post, rail and cap colours, including contrast combinations
• Gate positions, widths and swing direction — so gates are built into the same order
• Site exposure and footing method — drives post size selection and the footing schedule
• Destination port and packing preference — with 0.166 CBM per section as the loading basis

Frequently Asked Questions

What is included in one HEE section?

One section comprises a pre-notched top rail (2" x 3-1/2" x 94"), a pre-notched middle rail (2" x 6" x 94"), a pre-notched bottom rail (2" x 6" x 94") with an aluminum insert, eight 11.3" wide or sixteen 6" wide T&G panels at 50" length, and two 1" x 1" x 46.8" U-channels. Posts, post caps and gates are ordered alongside the section.

Can the fence be supplied at heights other than 72 inches?

Yes. 72" is our standard height and 96" is our standard width, and we produce different heights and widths to order. Changing the height changes the panel field, so the rail positions and panel lengths are re-set for that order rather than adapted on site.

Which panel format suits a commercial or exposed site?

The aluminum insert in the bottom rail is what makes the HEE assembly suitable for commercial applications, and it is present in both panel formats. For exposed sites we pair it with 5" x 5" posts and a footing schedule matched to the wind load, which we confirm from the site information supplied with the enquiry.

Do the posts need to be cemented?

We recommend treating vinyl posts exactly as wood posts are treated locally. Where cementing timber posts is normal practice in the region, cement the vinyl posts to the same depth and diameter. The posts arrive pre-routed, so the only site work at the post line is setting and alignment.

Can matching gates be supplied with the fence?

Yes. Gates are built to match the HEE fence in profile, colour and panel format, and gate posts are routed for the hinge and latch side as part of the same order. Supplying gate positions and swing direction with the enquiry keeps the whole run on one production schedule.

How much container space does the fence occupy?

Each section occupies 0.166 CBM, which gives a reliable starting point for container loading estimates once the section count and gate quantities are known. We confirm the loading quantity and packing arrangement against the final order before shipment.
