HEB PVC Lattice Top Privacy Fence: Full-Privacy Panels with a Lattice Crown

Deqing Huazhijie Railing & Fencing Co., Ltd. has produced PVC fence systems in Huzhou, near Shanghai, since 2003. The HEB panel is our lattice-top privacy fence: a solid tongue-and-groove privacy screen finished with a decorative lattice section above the top rail, so a property line gets full screening at eye level and a lighter architectural silhouette above it. Profiles are extruded, rails notched, posts routed and sections packed in our own plant, which keeps the panel, post and gate interfaces inside one set of tolerances.

Each run is supplied as a complete kit — section, post and matching gate — rather than as loose profiles, so a distributor, contractor or project manager receives parts that assemble in the order they were designed. As a HEB PVC lattice top privacy fence manufacturer, we build the panel around the site, not around a single fixed catalogue size.

Where the HEB panel fits

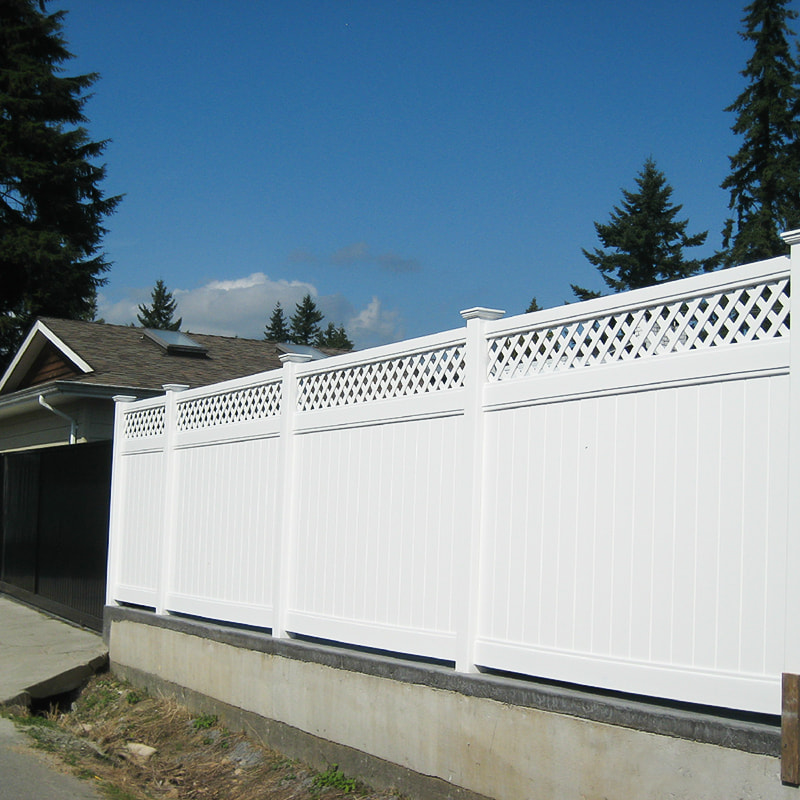

• Residential perimeter and side-yard screening where privacy and a finished top edge both matter
• Villas, country yards and estate boundaries with mixed planting and hardscape
• Farm and warehouse perimeters that need a defined, low-maintenance boundary
• Balcony and terrace enclosures, and temporary screening during construction phases

Component Breakdown of a Standard HEB Section

The panel is a stacked assembly: two tongue-and-groove infill options sit between notched rails, and the lattice is captured above the top rail. Every part below is a standard component of the 72" x 96" section.

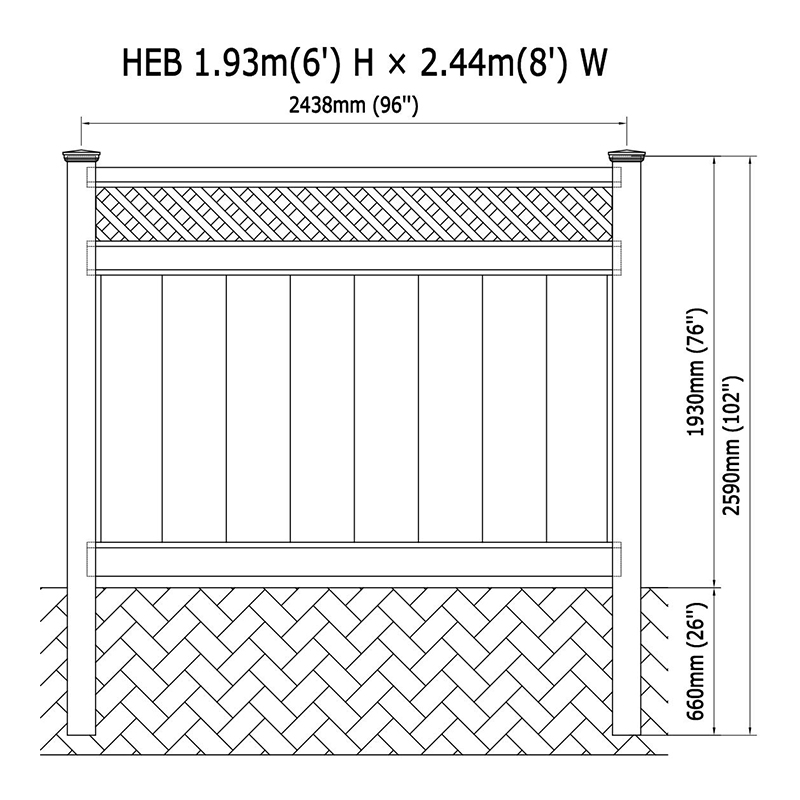

Reading the Specification: Height, Width, Posts and Rails

Standard section height is 72" and standard width is 96". Both are working dimensions rather than limits — different heights and widths are produced to suit the run, the gate position and the local boundary requirement.

• Post selection: 4" x 4" for standard residential runs, 5" x 5" where a heavier line, longer spans or a commercial setting calls for more section.
• Routing: posts arrive pre-routed for Line, End, Corner or 3-way positions, or blank where the site is drilled on installation.
• Rails: bottom, middle and top rails are pre-notched at 94" so the panel drops into position without field cutting.
• Infill: 8 wider boards or 16 narrower boards per section, both 7/8" thick and 50" long, giving a coarser or finer panel face.
• Packing: one section occupies 0.166 CBM, which sets the container loading plan for bulk orders.

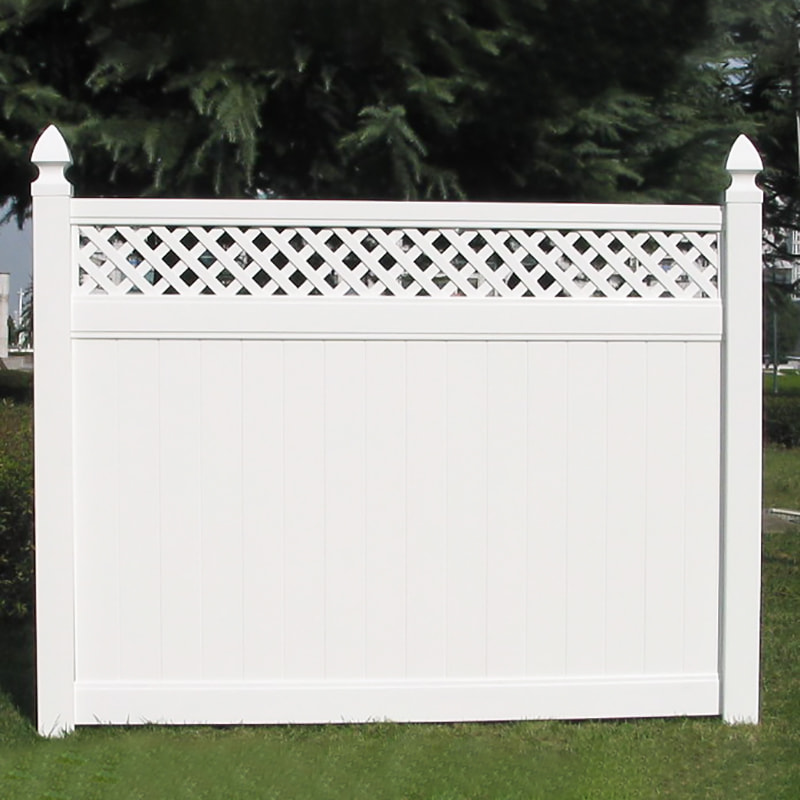

The Lattice Top: What It Does and How It Is Held

The lattice is a 11.8" x 90.8" moulded section that sits above the top rail and is captured on both vertical edges by 1" x 1" x 60" U-channels. That arrangement keeps the lattice flat and aligned across the run instead of relying on the panel below to hold it.

Functionally, the lattice raises the visual height of the fence without adding a solid mass at the top, which keeps the boundary from reading as a wall. Privacy is delivered by the tongue-and-groove panel below; the lattice is the finish. Where a project needs a different crown treatment, the same panel platform is used across our privacy range, including the HEA PVC privacy panel fence 6'x8' and the HEC PVC picket top panel fence.

Colors, Post Caps and Design Coordination

Panel, rail and post profiles are produced in White, Tan, Grey and Cream. Because the components are made in the same plant, posts, rails and caps can be specified in different colors to create a two-tone fence without a mismatch in tone or surface finish.

• New England cap — traditional stepped profile for residential boundaries
• Flat cap — low, clean line for modern and commercial settings
• Gothic cap — pointed profile for a more decorative run
• Mixed-color builds — contrasting posts, rails or caps on request

Installation Sequence and Site Interfaces

The HEB system installs much like a wood fence, with the routing already done. Posts are set first, then rails are inserted into the routed post holes, the tongue-and-groove boards are stacked between the rails, and the lattice is slid into its U-channels before the caps are fitted.

1. Set and align posts at the marked spacing; treat PVC posts as you would wood posts, including cementing where that is normal local practice.
2. Insert bottom, middle and top rails into the routed post openings.
3. Stack the T&G boards between the rails and check the panel is square in the opening.
4. Fit the lattice into the U-channels above the top rail.
5. Attach post caps last and clean down the run.

Wind performance depends on the panel style, the post installation and the rail configuration, so post depth, footing and spacing are agreed against the site conditions before the order is released. Installation video guidance is provided with the shipment.

Material, Weathering and In-House Quality Control

Profiles are extruded from 100% virgin PVC with no recycled content and no lead, stabilised with UV inhibitors, impact modifiers and stabilisers. Titanium dioxide at 10 parts per 100 is used for non-chalking performance, and pigments and resin are traceable to their source. The published service range is -40 to 70 degrees, and the system is backed by a 30-year limited warranty.

• Process route: extrusion, cutting, drilling, notching, packing, storage — all under one roof in Huzhou, China
• Independent quality-control group inspecting each extruder line hourly, plus random checks
• Certification evidence available: CE, RoHS and UL94, alongside SGS, ASTM, ISO 9001 and TUV manufacturer documentation
• Surface behaviour: resistant to cracking, chipping, peeling and rot; graffiti and staining removed with detergent, a pressure washer or, in stubborn cases, 400-grit sandpaper

Gates, Custom Work and Delivery Scope

Matching gates are produced to the same profile set and color as the panel, so a driveway or side access opening reads as part of the same fence line. The order formula is deliberately simple: section + post + gate = complete fence.

OEM and ODM work is routine for us. We develop new fence profiles and styles from a customer drawing or sample, and customer-specified sizes are produced alongside the standard range. Related lattice and rail formats are available where a project mixes panel types, such as the HBJ PVC lattice fence for railing-height runs.

Information We Use to Configure Your Solution

A quotation is prepared from the working point of the run, not from a catalogue number alone. The table below lists what we need and how each item changes the configuration.

Frequently Asked Questions

What is the standard size of the HEB lattice top privacy fence?

A standard section is 72" high and 96" wide, with a 11.8" x 90.8" lattice crown above the top rail. Different heights and widths are produced to order, so the section can be matched to the run rather than the run adapted to the section.

Which post sizes and routings are available?

Posts are supplied at 4" x 4" or 5" x 5" and 102" long, pre-routed as Line, End, Corner or 3-way, or supplied blank where the site prefers to drill on installation.

Can the panel be supplied with a matching gate?

Yes. Gates are built to the same profiles and color as the panel, and the standard order structure is section plus post plus gate for a complete fence line.

How are the posts installed?

PVC posts are installed the same way as wood posts. Where cementing wood posts is normal local practice, we recommend cementing the PVC posts as well, with footing depth and spacing agreed against the site conditions.

What colors and post caps can be specified?

White, Tan, Grey and Cream are standard, with New England, Flat and Gothic post caps. Posts, rails and caps can be combined in different colors for a two-tone fence.

Do you accept OEM and ODM orders for this panel?

We do. New profiles and styles are developed from a customer drawing or sample, and customer-specified sizes are produced alongside the standard range, with installation video guidance supplied for the assembled system.
