HEF T&G privacy panel

Deqing Huazhijie Railing & Fencing Co., Ltd. builds the HEF T&G privacy panel as a complete, pre-notched vinyl fence section for residential boundaries, villa perimeters, farm and country-yard screening, and light commercial enclosure. We have produced PVC fence profiles in Huzhou, Zhejiang, near Shanghai, since 2003, and the HEF panel is one of the tongue-and-groove privacy builds we extrude, notch, and pack as a shippable kit. Each section leaves our floor as boards, rails, U-channels, and posts, with matching gates available so a project closes as a single order.

As a HEF T&G privacy panel manufacturer in China, we work from the working point rather than a catalogue default: height, width, board face, post routing, cap style, and gate count are all set before extrusion.

How the Tongue-and-Groove Build Works

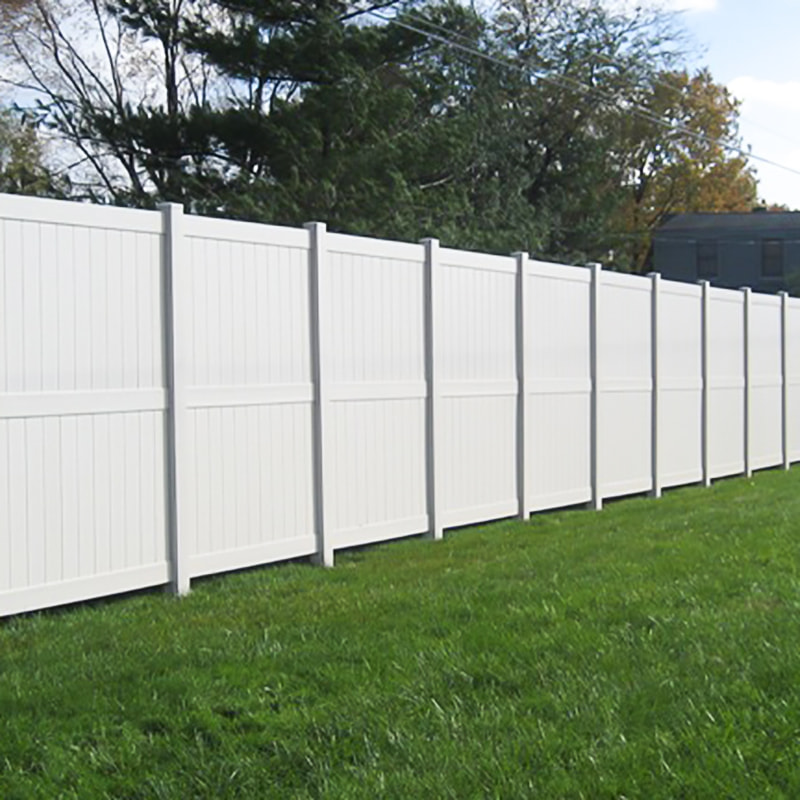

The HEF panel is a full-privacy system. Tongue-and-groove boards interlock along their edges and are captured between a routed top rail, a middle rail, and a bottom rail, with a 1" x 1" U-channel closing each end of the section. Because the boards lock edge to edge instead of sitting in open slots, the finished face reads as a continuous surface with no see-through gaps and no fasteners driven through the visible face.

• Full privacy face — interlocking boards close the panel across its full height.
• Pre-notched rails — every rail arrives notched for board insertion, so site work is assembly rather than fabrication.
• Serviceable boards — a damaged board can be released from the U-channel and replaced without dismantling the run.

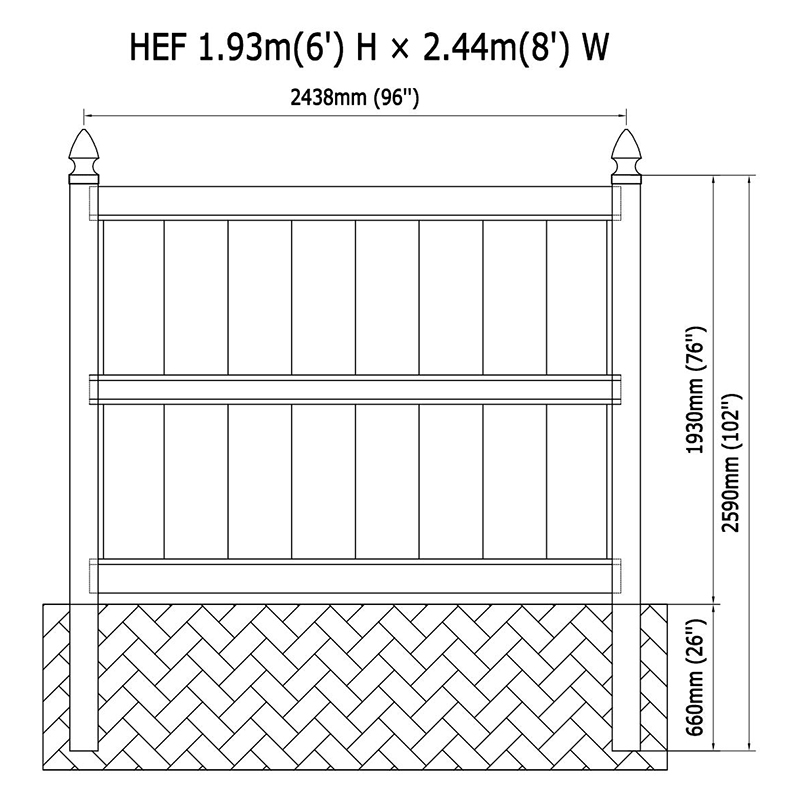

• Standard module — 72" high x 96" wide, produced to other heights and widths on request.

Section Anatomy: What Ships in One HEF Panel

One HEF section is a defined bill of profiles. The table below reflects the standard 72" x 96" configuration; lengths and quantities shift with the ordered height and width.

Choosing Between the 16-Board and 32-Board Faces

Both faces deliver the same privacy result; the difference is visual rhythm and how the run reads at distance. Wide boards give a calmer, plank-like elevation, while narrow boards produce a denser vertical pattern that suits long boundary walls and architectural facades.

Where a project mixes styles, the HEF panel sits alongside our HEE 6' height T&G panel PVC fence and the HEG PVC T&G panel on the same post line, so a single run can change character without changing the post grid.

Posts, Routing and Layout Planning

Posts are supplied pre-routed, which is where most of the installation time is saved. We route to the layout you send: line posts for straight runs, end posts at terminations, corner posts at direction changes, three-way posts at T-junctions, and blank posts where a gate hinge or a site condition needs field drilling.

• 4" x 4" posts — standard residential sections and lighter wind exposure.
• 5" x 5" posts — heavier runs, taller panels, and commercial or exposed sites.
• Post caps — New England Cap, Flat Cap, or Gothic Cap, in the same or a contrasting colour.
• Colour mixing — posts, rails, and caps can be specified in different colours from the standard palette.

Material, Colour and Climate Behaviour

The HEF panel is extruded from 100% virgin PVC with UV inhibitors, impact modifiers, and stabilisers, and it is supplied uncoated — the colour runs through the profile rather than sitting on the surface. Our formulation uses DuPont TiO2 and US or German brand pigments, and the compound is lead-free throughout.

• Colours — White, Tan, Grey, Cream.
• Service temperature — stated range of -40°C to 70°C.
• Surface behaviour — engineered against chalking, cracking, chipping, peeling, and rot.
• Routine care — a garden hose rinse; a mild abrasive cleaner for stubborn marks; ordinary detergent for graffiti.

Commercial Reinforcement and Wind Load

The aluminum insert in the bottom rail is the detail that moves the HEF panel from residential work into commercial applications, because it stiffens the lowest rail where racking loads concentrate. Wind performance is a system result, not a single profile property: panel height, rail count, post size, post spacing, and the embedment method all contribute. We confirm post spacing and the concrete-set recommendation against the exposure and height you specify, and we treat post setting the same way local practice treats wood posts.

Gates, Packing and the Complete Fence Order

A fence is ordered as sections plus posts plus gates. Matching gates are produced to the same profile and colour as the panel, so the boundary closes without a visual break, and gate hardware is specified at the same time as the hinge post routing. Each section occupies 0.166 CBM, which is the figure we use for container loading plans and for confirming how many sections and posts fit a target shipment.

Installation Sequence

1. Set posts to the layout drawing, using the pre-routed holes to confirm orientation before backfilling or concreting.
2. Slide the bottom, middle, and top rails into the routed post holes, with the aluminum insert seated in the bottom rail.
3. Feed the tongue-and-groove boards into the notched rails from the open side of the section.
4. Close both ends with the 1" x 1" U-channels.
5. Fit post caps and hang gates on the prepared hinge posts.

We supply video installation guidance with the order, and our technicians answer assembly questions during the build rather than after it.

Quality Control and Compliance Evidence

Production runs through extrusion, cutting, drilling, notching, packing, and storage, with an independent quality-control group inspecting each extruder's output hourly and auditing finished goods at random. Raw materials are traceable, and our quality system is supported by SGS, ASTM, ISO 9001, and TUV Global Manufacturer certification, alongside CE, ROHS, and UL94 certificates for the relevant products. Finished fence systems carry a 30-year limited warranty.

OEM and ODM work is part of normal production here: we develop new fence profiles and styles from a customer's drawing or sample, and we produce to customer-specified sizes and colours. Projects that need a different privacy elevation can be reviewed against our HEA PVC privacy panel fence 6'x8' as an alternative section build.

Information We Use to Configure Your Solution

Send the following and we can return a section-by-section configuration with quantities and loading figures:

• Total linear run, plus a site plan or sketch showing corners, terminations, and T-junctions.
• Required panel height and section width, if they differ from 72" x 96".
• Board face preference: 16 wide boards or 32 narrow boards.
• Colour selection for boards, rails, posts, and caps, including any mixed-colour scheme.
• Post size (4" x 4" or 5" x 5") and the count of line, end, corner, three-way, and blank posts.
• Gate quantity, opening width, and swing direction.
• Site wind exposure and the intended post embedment method.
• Destination port, packaging and labelling requirements, and any OEM or ODM specification.

Frequently Asked Questions

What is the standard size of the HEF T&G privacy panel?

Standard height is 72" and standard width is 96". Both dimensions are produced to order at other values, so a project can match an existing fence line or a fixed bay spacing.

How many boards are in one section?

Either 16 boards at 7/8" x 11.3" x 28" or 32 boards at 7/8" x 6" x 28". The choice changes the visual rhythm of the face, not the privacy performance.

Is the HEF panel suitable for commercial projects?

Yes. The bottom rail carries an aluminum insert for commercial strength, and posts are available in 5" x 5" with pre-routed line, end, corner, and three-way configurations. We confirm post spacing and embedment against the height and exposure of the site.

Do you supply gates to match the panel?

Matching gates are available in the same profiles and colours. Gate quantity, opening width, and swing direction are confirmed with the order so hinge posts are routed correctly.

How much container space does one section take?

Each section occupies 0.166 CBM. We use that figure, together with post counts and gate sizes, to build the loading plan for your shipment.

What maintenance does a vinyl T&G panel need?

A garden hose rinse handles normal soiling. Stubborn marks respond to a mild abrasive cleaner, and graffiti can usually be removed with ordinary detergent and water, with a pressure washer or paint thinner for tougher cases.
