HEG pvc T&G panel

Introducing our high-quality PVC Tongue and Groove (T&G) Panels, the perfect solution for both residential and commercial applications. Designed for durability and aesthetic appeal, these panels are available in an array of colors, allowing you to choose the perfect shade to complement your space.

Our panels come in a standard height of 72 inches, with various height options available to meet your specific needs. The standard width of 96 inches ensures easy installation, while customizable widths allow for versatility in design. Each panel features robust 4"x 4" or 5"x 5" posts, pre-routed for convenient installation as Line, End, Corner, or 3-way configurations.

The panels are equipped with several cap options, including the New England Cap, Flat Cap, and Gothic Cap, giving you the freedom to select a style that best suits your project. Each panel also includes a pre-notched bottom rail (2"x 6"x 94''), middle rail (2"x 6"x 94''), and top rail (2"x 3-1/2"x 94''), ensuring structural integrity and ease of assembly.

Each panel section has a volume of 0.166CBM, and we also offer matching gates to complete your installation. Transform your space with our PVC T&G Panels—where durability meets style. For inquiries about loading quantities or custom dimensions, please contact us.

Product Description

Usage:Garden Fence,Home,Farm,Vilia, Warehouse,Country Yard,Balcony,Temporary,Privacy Fence.

Frame Material:100% Virgin PVC/ Plastic,Not Coated

Easy to install,More elastic and high impact resistance,Vinyl Is Durable and Low Maintenance.

Pvc posts, Rails, 2 or 3 Tongue & Groove panels

Customize Your Fence with Different Color Posts, Rails or Caps

How to make a order:Its simple, just add Section + Post + Gate = Complete Fence

Fence Top Style Pvc T&G panel
Color White, Tan, Grey, Cream
Height Standard height 72", Different heights available
Width Standard width 96", Different widths available
Post 4"x 4" or 5"x 5" or optional x 102'', pre routed as Line,End,Corner,3-ways or blank.
Post Cap New England Cap,Flat Cap,Gothic Cap
Bottom Rail 2"x 6"x 94''Lx1pcs, pre notched
Middle Rail 2"x 6"x 94''Lx1pcs, pre notched
Top Rail 2"x 3-1/2"x 94''Lx1pcs, pre notched
Picket 11/2"x 1 1/2" x12.6''Lx 17pcs
U-Channel 1"x 1"x 46.8''Lx2pcs
Aluminum Insert Aluminum insert in bottom rail for commercial strength
T&G Panel 7/8"x 11.3"x 46''L x 8pcs or 7/8"x 6"x 46''L x 16pcs
Volume of Section 0.166CBM, loading QTTY inquiry
Matching Gate Available

Contact Us for More Details

Don't hesitate to contact when you need us!

SUBMIT

About
Deqing Huazhijie Railing & Fencing Co.,Ltd.
Deqing Huazhijie Railing & Fencing Co.,Ltd.
Deqing Huazhijie Railing & Fencing Co.,Ltd. is China HEG pvc T&G panel suppliers and HEG pvc T&G panel company, which is located near Shanghai, established in 2003, is a professional manufacturer engaged in the research, development, production, sale, and service of PVC fence and PVC flooring. We are located in Huzhou, which has convenient transportation access. Dedicated to strict quality control and thoughtful customer service, our experienced staff members are always available to discuss your requirements and ensure full customer satisfaction.
If you select a current product from our catalog or want help with your application, you can go ahead and discuss your sourcing requirements with our customer service center.
Certificate Of Honor
  • Deqing Huazhijie Railing & Fencing Co.,Ltd.
  • Deqing Huazhijie Railing & Fencing Co.,Ltd.
  • Deqing Huazhijie Railing & Fencing Co.,Ltd.
  • Deqing Huazhijie Railing & Fencing Co.,Ltd.
  • Deqing Huazhijie Railing & Fencing Co.,Ltd.
News
PVC Privacy Fence Industry knowledge

Deqing Huazhijie Railing & Fencing Co., Ltd. is a HEG pvc T&G panel manufacturer based in Huzhou, Zhejiang, near Shanghai. We have extruded, cut, drilled and notched lead-free PVC fence profiles in our own plant since 2003, and the HEG panel is the tongue-and-groove privacy section we build for residential boundaries, commercial perimeters and mixed-use sites that need a solid, low-maintenance screen.

Ordering logic: Section + Post + Gate = complete fence. Every HEG section ships with its rails, T&G slats and U-channels; posts and gates are specified separately against the run layout.

How the HEG Tongue-and-Groove Section Is Built

The HEG panel is a routed rail-and-slat assembly. Each vertical slat carries a tongue on one edge and a groove on the other, so adjacent slats interlock and hold alignment without visible face fasteners. The slat stack is captured between a pre-notched bottom rail, a middle rail and a top rail, while two U-channels close the outer edges of the section.

  • Wide slat build: 7/8" x 11.3" x 46" T&G panel, 8 pieces per section — broader slat face, fewer vertical joints.
  • Narrow slat build: 7/8" x 6" x 46" T&G panel, 16 pieces per section — tighter joint rhythm across the same opening.
  • Edge closure: 1" x 1" x 46.8" U-channel, 2 pieces per section.
  • Bottom rail reinforcement: an aluminum insert runs inside the bottom rail for commercial-strength spans.

Section Anatomy and Shipped Components

Component Profile Quantity per section Function
T&G panel slats 7/8" x 11.3" x 46" 8 pcs Wide-slat privacy infill
T&G panel slats (alternative) 7/8" x 6" x 46" 16 pcs Narrow-slat privacy infill
Bottom rail 2" x 6" x 94" 1 pc, pre-notched Carries slat stack, accepts aluminum insert
Middle rail 2" x 6" x 94" 1 pc, pre-notched Mid-height stiffening and slat capture
Top rail 2" x 3-1/2" x 94" 1 pc, pre-notched Closes the section head
Picket 1-1/2" x 1-1/2" x 12.6" 17 pcs Rail-to-rail vertical elements
U-channel 1" x 1" x 46.8" 2 pcs Closes both outer slat edges
Aluminum insert Fits bottom rail 1 pc Commercial-strength bottom rail
Post 4" x 4" or 5" x 5", optional 102" length Per run layout Pre-routed line, end, corner, 3-way or blank
Post cap New England, Flat or Gothic 1 pc per post Finishes the post head

Each assembled section measures 0.166 CBM, which is the figure we use to calculate container loading for a given height and width combination.

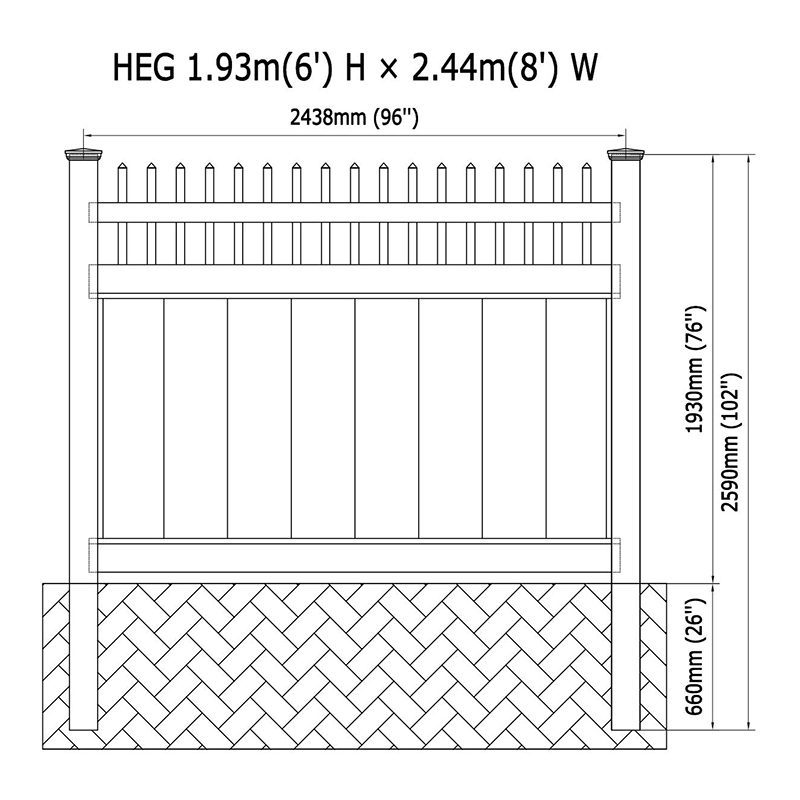

Specification Meaning: Height, Width, Post and Cap

Standard section height is 72 inches and standard width is 96 inches. Both are quoted as standard rather than fixed — different heights and widths are produced to order, so a run does not have to be forced into a single module. Posts are supplied in 4" x 4" or 5" x 5", with an optional 102-inch length, and arrive pre-routed for the position they will occupy.

  • Line post: straight run between two sections.
  • End post: terminates a run.
  • Corner post: turns the run through 90 degrees.
  • 3-way post: junction where a run branches.
  • Blank post: unrouted, for field routing or non-standard junctions.

Cap style is a separate selection: New England, Flat or Gothic. Colors are White, Tan, Grey and Cream, and slats, rails, posts and caps can be specified in different colors within the same order to create contrast without changing section geometry.

Application Fit

Application Typical configuration Why it fits
Residential privacy boundary 72" x 96" section, 4" x 4" posts, Flat or New England cap Solid screen at standard height with a matched gate
Commercial and warehouse perimeter 5" x 5" posts, aluminum insert in bottom rail Heavier post and reinforced bottom rail on longer exposed runs
Villa and garden enclosure Mixed-color slats, rails and caps Color contrast without altering section geometry
Balcony and courtyard screening Reduced height and width produced to order T&G infill blocks sightlines in tight footprints
Staged or temporary site screening Standard sections with blank posts for field routing Sections can be re-laid as the site layout changes

Material, Extrusion and Process Control

HEG sections are produced from 100% virgin PVC — not coated, no recycled material — with UV stabilization built into the compound. Our formulation uses DuPont TiO2 at 10 parts per 100 to resist chalking, together with US or German brand pigments, and raw materials are traceable through production. The finished profile is lead-free and holds its service range from -40°C to 70°C.

  • In-house process: extrusion, cutting, drilling holes, notching, packaging and storage.
  • Quality control: an independent quality-control group inspects each extruder's production every hour, with additional random examination.
  • Certification: CE, RoHS and UL94, supported by SGS, ASTM, ISO 9001:2000 and TUV Global Manufacturer Certificate documentation.

Installation, Interfaces and Site Coordination

Posts arrive pre-routed and rails are pre-notched, so assembly follows the same sequence as a wood fence: set the posts, insert the rails into the post routing, drop the T&G slats into the rails, then fit the post caps. Treat PVC posts the way you would treat wood posts on the same site — where local practice calls for cemented wood posts, cement the vinyl posts to the same depth and method.

  • Gates: matched gates are produced for the HEG panel so frame geometry and swing follow the fence line.
  • Assembly guidance: installation video support covers the assembly sequence and post setting.
  • Field routing: blank posts allow non-standard junctions to be routed on site.
  • Cleaning: normal exposure needs only a garden hose rinse; a mild abrasive cleaner handles stubborn marks.

Information We Use to Configure Your Solution

A quotation is built from the run layout rather than from a single panel size. Send the following and we return a section, post and gate schedule with loading figures.

  • Total linear run and section count, with a dimensioned plan or sketch.
  • Post positions by type: line, end, corner, 3-way or blank.
  • Required height and width where these differ from 72" x 96".
  • Slat preference: 8-piece wide slat or 16-piece narrow slat.
  • Post size 4" x 4" or 5" x 5", and where the 102-inch post length is needed.
  • Color selection for slats, rails, posts and caps, including mixed-color schemes.
  • Cap style: New England, Flat or Gothic.
  • Gate count, opening width and hinge side.
  • Site conditions: wind exposure, ground type and frost depth for post setting.
  • Loading target, destination port and any OEM or ODM branding requirements.

Packaging, Loading and Delivery Scope

Each assembled section occupies 0.166 CBM, which sets the container loading figure for a given height and width combination; we confirm loading quantity against the final section schedule rather than a generic panel count. Sections, posts, caps and gates are packed as a matched set so site assembly does not depend on parts arriving in separate shipments. OEM and ODM orders are produced to drawing, and our fence profiles ship to Canada, the USA, Europe, Australia and New Zealand.

Within the same privacy range, the HEF T&G privacy panel and the HEE 6' height T&G panel use the same routed rail logic at different section proportions, while the HEA pvc privacy panel fence 6'x8' covers the standard 6' x 8' privacy format.

Frequently Asked Questions

What is the standard size of the HEG PVC T&G panel?

Standard height is 72 inches and standard width is 96 inches. Different heights and widths are produced to order, and each assembled section measures 0.166 CBM for loading calculation.

How many T&G slats are in one section?

Either 8 pieces of 7/8" x 11.3" x 46" or 16 pieces of 7/8" x 6" x 46", closed by two 1" x 1" x 46.8" U-channels. The choice changes the slat face width and joint density, not the section footprint.

Do the posts come pre-routed?

Yes. Posts are supplied in 4" x 4" or 5" x 5", with an optional 102-inch length, and are routed as line, end, corner, 3-way or blank to match the run layout.

Can a matching gate be ordered with the panel?

Matching gates are available for the HEG panel. Provide the opening width and hinge side with the section schedule and the gate is produced to the same color and cap selection.

Which colors and cap styles are available?

White, Tan, Grey and Cream, with New England, Flat or Gothic caps. Slats, rails, posts and caps can be specified in different colors within one order.

What material is used and what warranty applies?

The profile is 100% virgin PVC, lead-free, with no recycled material and DuPont TiO2 at 10 parts per 100 for chalking resistance. Products carry a 30-year limited warranty, supported by CE, RoHS and UL94 certification and SGS, ASTM, ISO 9001:2000 and TUV documentation.
