HBJ pvc lattice fence

Deqing Huazhijie Railing & Fencing Co., Ltd. has produced PVC fence systems in Deqing, Huzhou — near Shanghai — since 2003. The HBJ PVC lattice fence is our lattice-infill system for pool surrounds, front-yard boundaries, garden divisions, balcony and railing work. We extrude the profiles in-house, notch and route the rails and posts, and ship each run as a buildable kit of sections, posts, caps and matching gates rather than a bundle of loose profiles.

Where the HBJ Lattice Fence Belongs

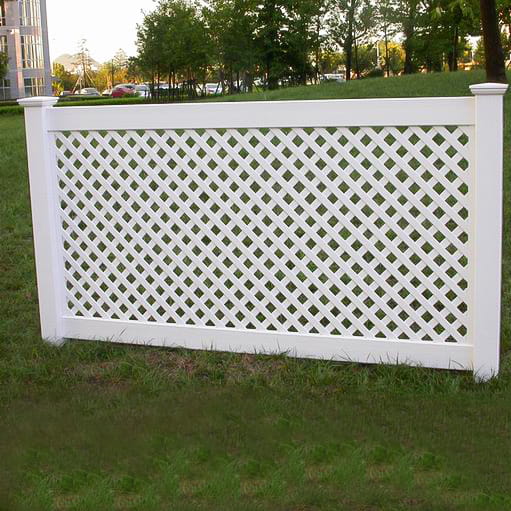

The lattice panel gives a semi-open screen: it defines an edge and blocks direct sightlines at seated eye level while still letting air and light through. That makes it a natural fit where a solid privacy panel would look heavy or obstruct airflow.

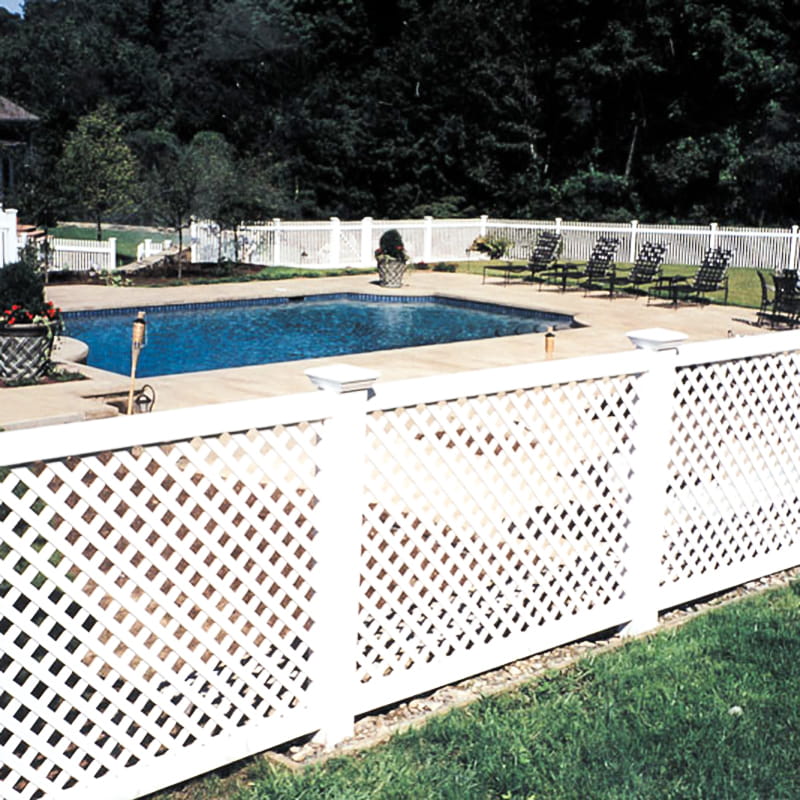

• Pool surrounds and pool-deck perimeters — a visible boundary that does not read as a solid wall.

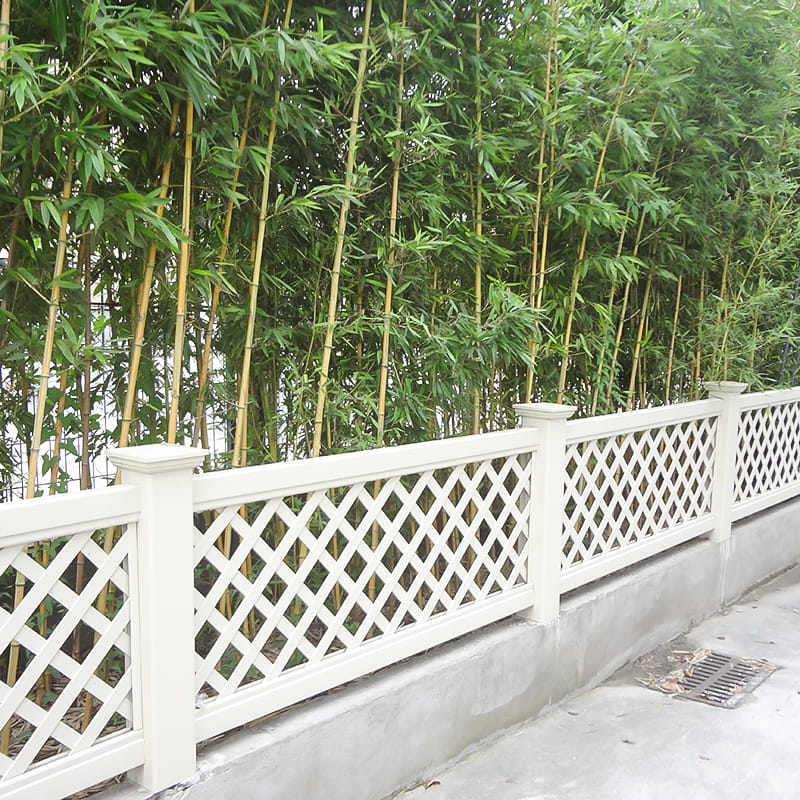

• Front yards and garden divisions — a decorative top edge that keeps planting visible behind the fence line.
• Balcony and railing infill — lighter visual mass on elevated structures.
• Estate districts, parks, rental properties and multi-unit sites — low maintenance and consistent colour across long runs.

Section Anatomy: What Each Specification Means

A complete HBJ run is ordered as section + post + gate. The table below is the working specification we quote against; every line is a variable you can confirm or change before extrusion.

Configuration Choices We Build To

Colour, height, width, post size and cap style are fixed before the extrusion run, because routing and notching are set to the same drawing. Four colours are held as standard: white, tan, grey and cream.

• Post size — 4 x 4 in for standard residential runs; 5 x 5 in where the run is taller, more exposed, or carries a gate leaf.
• Routing pattern — line, end, corner, 3-way or blank, so the installer does not cut post holes on site.
• Cap profile — New England, flat or gothic, applied after the fence is assembled.
• Rail variant — different rails are available, including handrail profiles, where the run doubles as a railing.

Material Formulation and Climate Behaviour

The HBJ profile is 100% virgin PVC, uncoated, produced as a lead-free formulation. Titanium dioxide and UV inhibitors are part of the compound rather than a surface treatment, which is what keeps colour stable and limits chalking over time. Impact modifiers and stabilisers give the profile the elasticity the lattice and rails need to take handling and wind loading without surface cracking, chipping, peeling or rot.

The material is specified for service from -40 to 70 degrees Celsius, and the fence is designed to withstand normal wind loads. Actual performance on a given site depends on the style selected, post embedment and the number and position of horizontal rails — all of which we confirm from the layout drawing before quoting.

Installation Sequence and Site Interfaces

Installation follows the same logic as a wood fence, but with factory routing replacing site cutting. Posts are set first, then rails are inserted into the routed post holes, lattice panels drop into the notched rails, and caps go on last.

1. Set out post centres from the approved layout and confirm gate openings.
2. Excavate and set posts; treat PVC posts as you would wood posts, including cementing where that is local practice.
3. Insert the pre-notched top and bottom rails into the routed post holes.
4. Fit the lattice panel into the rail notches; the aluminium insert stays in the bottom rail.
5. Hang gates, then fit post caps and check alignment along the full run.

We supply video installation guidance with each order so the crew works to the same sequence we used when the routing was set.

Quality Control and Acceptance Evidence

Production runs through extrusion, cutting, hole drilling, notching, packing and storage, with an independent quality-control group inspecting each extruder's output hourly plus random checks across the shift. Raw materials — PVC resin, titanium dioxide and pigments — are traceable, which is what makes a colour match repeatable on a reorder.

• CE, RoHS and UL94 certificates held for the relevant products.
• SGS, ASTM and ISO 9001 quality-system documentation available for project submittals.
• 30-year limited warranty on the fence system, transferable to the original purchaser.

Gates, Caps and Adjacent Systems

Gates are made to match the HBJ fence so the elevation reads continuously across the opening. Where a project needs a different visual weight, we also build the HEB PVC lattice top privacy fence for a solid panel with a lattice crown, the HBE 48"x96" three-rail pool fence for open pool perimeters, and the HBA PVC vertical railing fence for railing-led layouts. As a HBJ pvc lattice fence manufacturer, we keep the same post, cap and colour families across these systems so a mixed site stays visually consistent.

Information We Use to Configure Your Solution

A quotation is only as good as the inputs behind it. These are the items that change routing, material take-off and packing, so we ask for them together.

Packaging, Delivery and Documentation

Sections, posts, caps and gates are bundled by run so the installer can work bay by bay instead of sorting a mixed load. At 0.08 CBM per section, loading is calculated from the confirmed bay count and post schedule, which keeps container fill predictable for distributors consolidating several orders.

Each shipment carries the packing list, component schedule and installation video guidance. OEM and ODM work is routine for us — new profiles and styles are developed from customer drawings, and custom sizes are produced alongside the standard range.

Frequently Asked Questions

What heights and widths can the HBJ lattice fence be produced in?

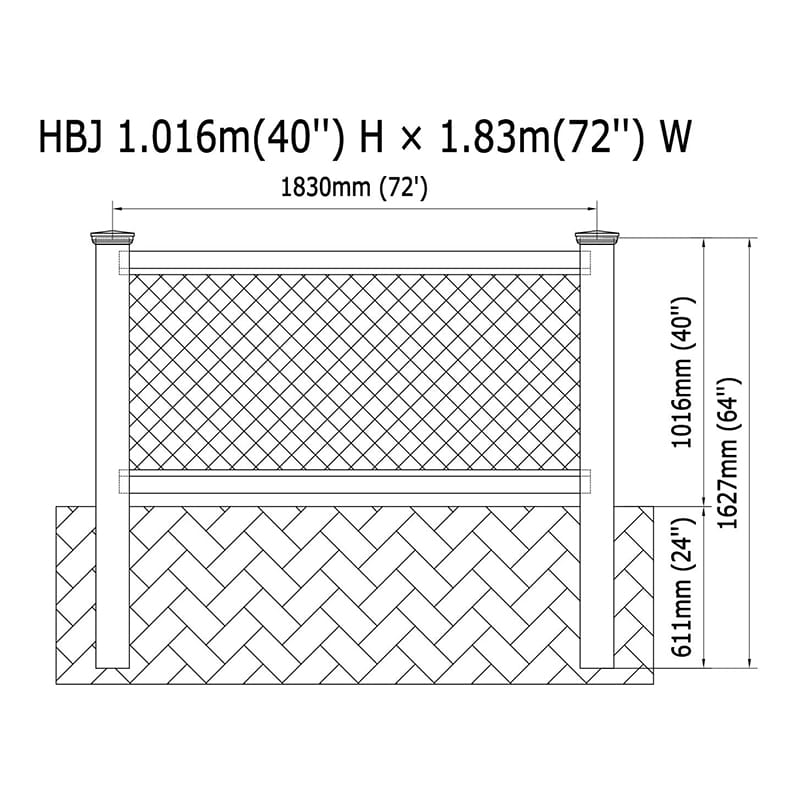

The standard section is 40 in high and 72 in wide. Different heights and different widths are available, and because routing and notching are set to the order drawing, a custom bay size is a production decision rather than a site modification.

Is the lattice panel structural or purely decorative?

It is decorative infill that also contributes to the section's rigidity. The main structural contribution comes from the pre-notched top and bottom rails, with an aluminium insert running inside the bottom rail for commercial-grade strength.

Should a project use 4 x 4 in or 5 x 5 in posts?

Both are produced pre-routed. The 4 x 4 in post suits standard residential runs; the 5 x 5 in post is the usual choice for taller runs, more exposed sites and gate posts, where the additional wall section resists the higher loads at the hinge and latch points.

Can gates be supplied to match the fence?

Yes. Matching gates are available and are built to the confirmed opening width and post spacing, so the gate frame, rails and colour follow the same specification as the fence sections.

What maintenance does the fence need?

A garden hose rinse handles normal dust and pollen. Stubborn marks respond to a cleaner containing a mild abrasive suitable for fibreglass surfaces, and most paint or graffiti can be removed with ordinary detergent and water, a pressure washer, or in difficult cases a paint thinner. The formulation contains no lead and requires no painting, sealing or termite treatment.

How do I start an order or an OEM run?

Send the layout drawing, finished height and width, post size, gate schedule, colour and cap style, plus the destination port and any compliance documents your submittal requires. We confirm the routing pattern and section take-off, then issue a quotation against that configuration. New profiles and styles are developed from customer drawings when the standard range does not match the project.
