HBE 48"x96"3 rails pool fence

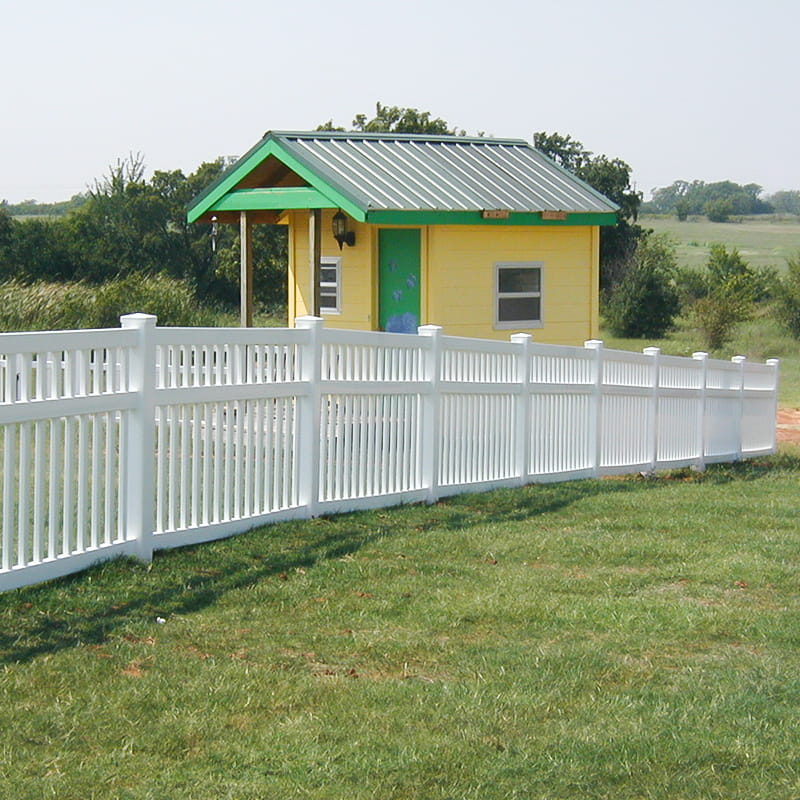

Deqing Huazhijie Railing & Fencing Co., Ltd. has produced PVC fencing since 2003 at our plant in Deqing, Zhejiang, close to Shanghai. The HBE 48"x96"3 rails pool fence is our three-rail pool and railing system: a 48-inch-high, 96-inch-wide section assembled from 100% virgin PVC profiles, supplied as sections, posts and matching gates for residential pools, commercial pool decks, front yards, garden boundaries and balcony railing runs.

We are a PVC fence manufacturer working from extrusion through cutting, drilling and notching under one roof, so the HBE section arrives pre-notched and the posts arrive pre-routed. Site work stays at assembly and footing placement instead of fabrication.

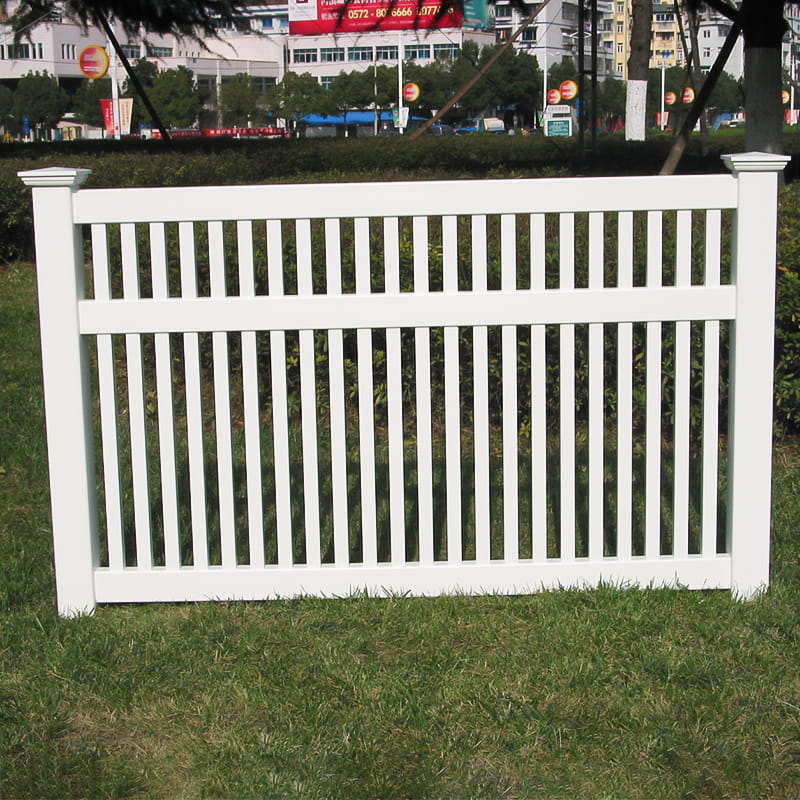

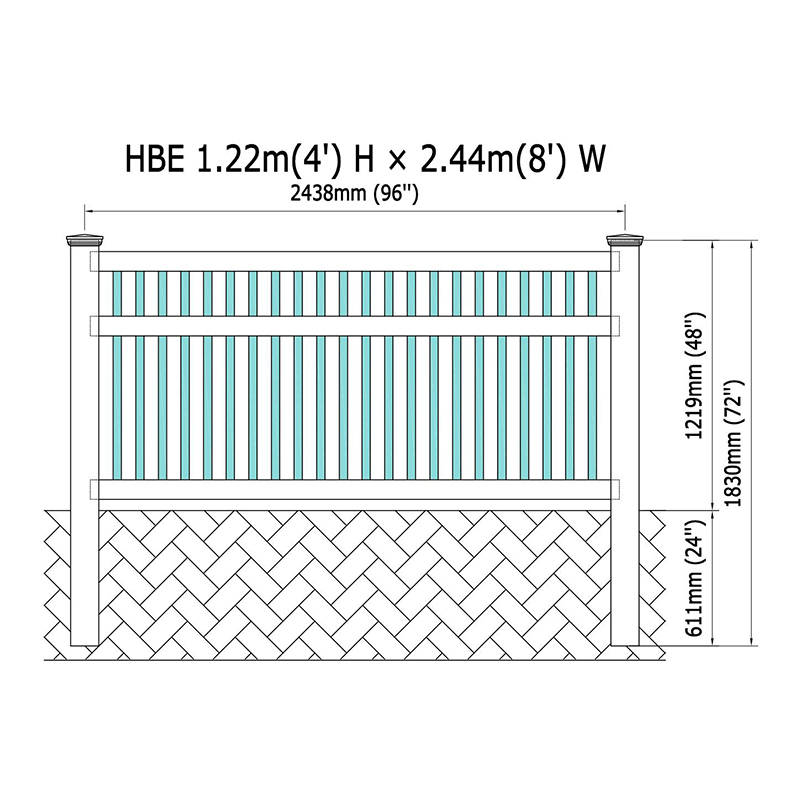

• Standard section: 48" high x 96" wide, three rails, 22 pickets at standard spacing
• Colors: White, Tan, Grey and Cream
• Posts: 4"x 4" or 5"x 5", optional 72" height, routed to your layout
• Bottom rail carries an aluminum insert for commercial-strength stiffness
• Matching gate available in the same profile family

Component Breakdown of the HBE Section

Each HBE section is a fixed bill of profiles. Knowing which piece does what makes it simpler to plan freight, specify replacements and confirm that a drawn layout will assemble the way it was intended.

Because rails are pre-notched and pickets are cut to 40", a standard run assembles without field cutting. Non-standard heights and widths are produced to order rather than adapted on site.

Section + Post + Gate: How a Complete Run Is Configured

We quote the HBE system as three line items: sections, posts and gates. Run length sets the section count, the layout drawing sets how many posts are line, end, corner or three-way, and the access points set gate quantity and swing direction.

Configuration choices we build into the quotation:

• Height and width — 48" x 96" standard; other heights and widths produced on request
• Color — White, Tan, Grey or Cream, matched across sections, posts and gates
• Post size — 4"x 4" for typical residential runs, 5"x 5" where spans, gate loads or commercial traffic call for a heavier post
• Rail variant — three-rail pool configuration as standard, with handrail-style options available in the same railing family, such as the HBC 48" pvc handrail fence
• Picket spacing — standard spacing as supplied; tighter or wider spacing discussed against your code requirement
• Gate package — matching gate, hinge and latch set sized to the post

Post Routing and Layout Configurations

Posts leave our plant pre-routed to the layout you approve, which removes the most common source of on-site error in a vinyl pool fence. The routing pattern is fixed at order stage, so the layout drawing is the document that drives production.

• Line post — mid-run, rails pass through on two opposite faces
• End post — terminates a run at a wall, gate or property edge
• Corner post — accepts a 90-degree change of direction
• Three-way post — junction where a run branches or returns
• Blank post — reserved for gate hinge or strike side, or for field drilling

Where a project mixes pool fencing with a different elevation, we can supply complementary profiles from the same material family, including the HBG plastic rail fence for rail-style boundaries and the HEA pvc privacy panel fence 6'x8' where a screen is required on the same site.

Material, Climate and Load Behaviour

Profiles are extruded from 100% virgin PVC with no recycled content and no lead. UV stabilization uses DuPont TiO2 at 10 parts per 100 together with US or German pigments, and the raw materials we use are traceable through production. The formulation is rated for service from -40°C to 70°C, which covers Canadian, northern US, European and Australasian outdoor conditions.

Wind performance depends on the fence style, how the posts are installed and how many horizontal rails carry the load — not on a single figure. Three rails plus the aluminum insert in the bottom rail give the section noticeably more resistance to racking and rail pull-out than an all-vinyl bottom rail, which is why we recommend this configuration for exposed pool decks and commercial installations.

Installation Sequence and Site Interfaces

The HBE system installs much like a wood fence, with the fabrication already done. The sequence we document for installers:

1. Set out post centres from the approved layout drawing and confirm gate positions
2. Excavate and set posts in concrete wherever local practice cements wood posts
3. Insert rails into the routed post holes, bottom rail first
4. Insert pickets into the notched rails at the specified spacing
5. Fit post caps after the fence is standing
6. Hang gates and set latch alignment against the strike post

We provide technical support and video installation guidance for the assembly steps, and we confirm footing depth, frost line and gate swing before the order is released.

Quality Control and Compliance Evidence

Extrusion, cutting, drilling, notching, packing and storage run in sequence in our own facility. An independent quality-control group inspects each extruder's production every hour and carries out random checks alongside that schedule, so profile wall thickness, notch position and color consistency are monitored through the run rather than at the end of it.

Certification on file includes CE, RoHS and UL94, together with SGS, ASTM, ISO 9001:2000 and TUV Global Manufacturer certification. We issue the relevant documents with the shipment for projects that need them at customs or at handover.

Information We Use to Configure Your Solution

A firm HBE quotation and a production-ready routing schedule come from a short, specific project brief. The items below are what we ask for:

• Run length, layout sketch or site plan with corners, returns and gate positions marked
• Required height and width, if different from 48" x 96"
• Color selection and whether sections, posts, caps and gates must match an existing installation
• Post size preference and required post height, including the 72" option
• Gate quantity, opening width and swing direction
• Footing method, frost depth and soil condition at the site
• Wind exposure and whether the run is residential or commercial
• Destination port, target quantity and any container loading constraint
• Any local pool barrier code, HOA rule or project specification the fence must satisfy
• Whether you assemble on site from our pre-notched components or need a different packing split

We also take OEM and ODM work, including new profile and style development where a market needs a fence that is not already in our catalogue. As a HBE 48"x96"3 rails pool fence manufacturer, we build to the drawing you approve rather than to a stock assumption.

Maintenance, Spare Parts and Serviceability

Vinyl pool fencing is a low-maintenance product, and the HBE section is designed so that individual components can be replaced without dismantling a whole run. Under normal conditions a garden hose rinse is enough; for stubborn marks we recommend a cleaner containing a mild abrasive suitable for fiberglass bathtubs. Graffiti and paint usually lift with ordinary detergent and water, a pressure washer, or paint thinner for tougher cases, with 400 grit sandpaper as a last step.

Replacement rails, pickets, posts, caps and gate hardware are supplied against the original section specification, so a damaged picket or rail can be reordered years later and still match the installed fence.

Frequently Asked Questions

What is included when I order the HBE 48"x96"3 rails pool fence?

A complete order is sections, posts and gates. Each section contains one bottom rail with aluminum insert, two top and middle rails, 22 pickets at standard spacing, and the post caps you select. Posts are pre-routed to the layout pattern. Gates are quoted separately so the opening width and swing can be matched to the site.

Can the fence be produced in a height or width other than 48" x 96"?

Yes. The 48-inch height and 96-inch width are our standard, and different heights and widths are produced on request. Send the required dimensions with the layout and we will confirm rail lengths, picket quantity and section volume for freight planning.

Should I specify 4"x 4" or 5"x 5" posts?

Both are available, with an optional 72" height. The 4"x 4" post suits typical residential pool and garden runs. The 5"x 5" post is the usual choice for longer spans, heavier gate loads and commercial pool decks where the fence takes more lateral load.

Is this configuration suitable for commercial pool decks?

It is designed for both residential and commercial applications. The aluminum insert in the bottom rail is the commercial-strength element, and the three-rail layout with standard picket spacing keeps sightlines open for lifeguard and pool supervision while maintaining a continuous barrier.

Do you supply gates that match the fence?

Yes. Matching gates are made in the same profile family and color, and we size the gate to the post and opening you specify. Hinge and latch hardware is quoted with the gate so the swing and strike side are set before production.

What warranty and documentation come with the fence?

Our vinyl fencing carries a 30-year limited warranty. Certification documents including CE, RoHS, UL94, SGS, ASTM, ISO 9001:2000 and TUV Global Manufacturer certification are available with the shipment, and we provide technical support and video installation guidance for the assembly sequence.
