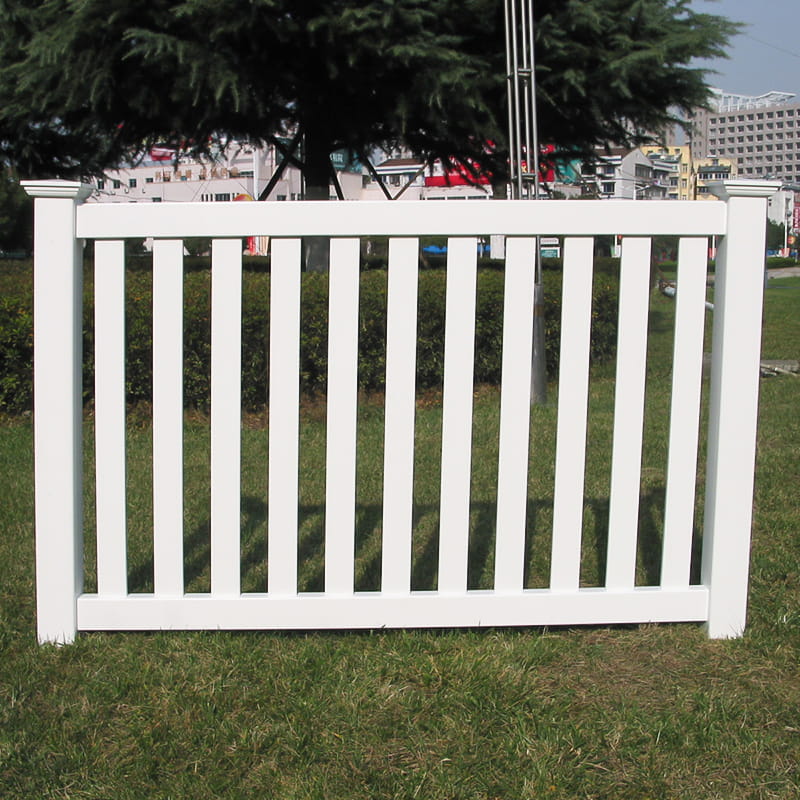

HBC 48" pvc handrail fence

Our PVC Handrail Fence, a versatile solution that combines elegance and durability. Available in classic colors like White, Tan, Grey, and Cream, this fence enhances any outdoor space with its refined appearance.

Standing at a standard height of 48 inches, with options for different heights and widths, it’s customizable to meet your needs. Each post, available in 4"x 4" or 5"x 5", is pre-routed for easy installation as Line, End, Corner, or 3-way configurations.

Featuring robust New England, Flat, or Gothic caps, our fence also includes pre-notched top and bottom rails for seamless assembly. An aluminum insert in the bottom rail provides commercial-grade strength, ensuring longevity and stability. The standard picket dimensions of 7/8"x 3"x 40" are designed for optimal spacing and structural integrity, making this fence the ultimate choice for both aesthetics and functionality. Matching gates are also available to complete your fencing project.

Product Description

Great for pool fencing, front yard fencing or garden fencing,Balcony and Railing fence use.

Frame Material:100% Virgin PVC/ Plastic,Not Coated

Easy to install,More elastic and high impact resistance,Vinyl Is Durable and Low Maintenance.

Different rails available,like handrail.

Four suitable colored: White, Tan, Grey, Cream

How to make a order: Its simple, just add Section + Post + Gate = Complete Fence

Fence Top Style Pvc handrail fence
Color White, Tan, Grey, Cream
Height Standard height 48", Different heights available
Width Standard width 96", Different widths available
Post 4"x 4" or 5"x 5" or optional x 72'', pre routed as Line,End,Corner,3-ways or blank.
Post Cap New England Cap,Flat Cap,Gothic Cap
Bottom Rail 2"x 3-1/2"x 94''x1pcs, pre notched
Top Rail 2"x 3-1/2"x 94''x1pcs, pre notched
Aluminum Insert Aluminum insert in bottom rail for commercial strength
Picket 7/8"x 3"x 40'' x 15pcs (standard spacing)
Volume of Section 0.08CBM, loading QTTY inquiry
Matching Gate Available

Contact Us for More Details

Don't hesitate to contact when you need us!

SUBMIT

About
Deqing Huazhijie Railing & Fencing Co.,Ltd.
Deqing Huazhijie Railing & Fencing Co.,Ltd.
Deqing Huazhijie Railing & Fencing Co.,Ltd. is China HBC 48" pvc handrail fence suppliers and HBC 48" pvc handrail fence company, which is located near Shanghai, established in 2003, is a professional manufacturer engaged in the research, development, production, sale, and service of PVC fence and PVC flooring. We are located in Huzhou, which has convenient transportation access. Dedicated to strict quality control and thoughtful customer service, our experienced staff members are always available to discuss your requirements and ensure full customer satisfaction.
If you select a current product from our catalog or want help with your application, you can go ahead and discuss your sourcing requirements with our customer service center.
Certificate Of Honor
  • Deqing Huazhijie Railing & Fencing Co.,Ltd.
  • Deqing Huazhijie Railing & Fencing Co.,Ltd.
  • Deqing Huazhijie Railing & Fencing Co.,Ltd.
  • Deqing Huazhijie Railing & Fencing Co.,Ltd.
  • Deqing Huazhijie Railing & Fencing Co.,Ltd.
News
PVC Pool Fence/Railing Fence Industry knowledge

Deqing Huazhijie Railing & Fencing Co., Ltd. has produced PVC fencing and railing at our Huzhou facility near Shanghai since 2003. The HBC 48" PVC handrail fence is our handrail-profile system for pool decks, front yards, gardens, balconies and railing runs: a routed, pre-notched assembly made from 100% virgin PVC with a reinforced bottom rail. Sections, posts and matching gates are supplied as one coordinated package, and the same profiles ship to Canada, the United States, Europe, Australia and New Zealand.

A Handrail-Profile Fence Built for Pool Decks, Yards and Balconies

The HBC system carries a handrail-style top rail instead of a flat picket cap, which gives the run a railing character suited to open sightlines and safety-oriented perimeters. It is assembled from pre-routed posts, pre-notched rails and 40" pickets, so a complete fence is built from three orderable elements rather than site-cut lumber.

  • Swimming pool perimeters and pool deck enclosures
  • Front yard and garden boundary fencing
  • Balcony and railing fence use, including multi-unit and hospitality projects
  • Distributor and contractor programmes requiring repeatable, pre-cut components

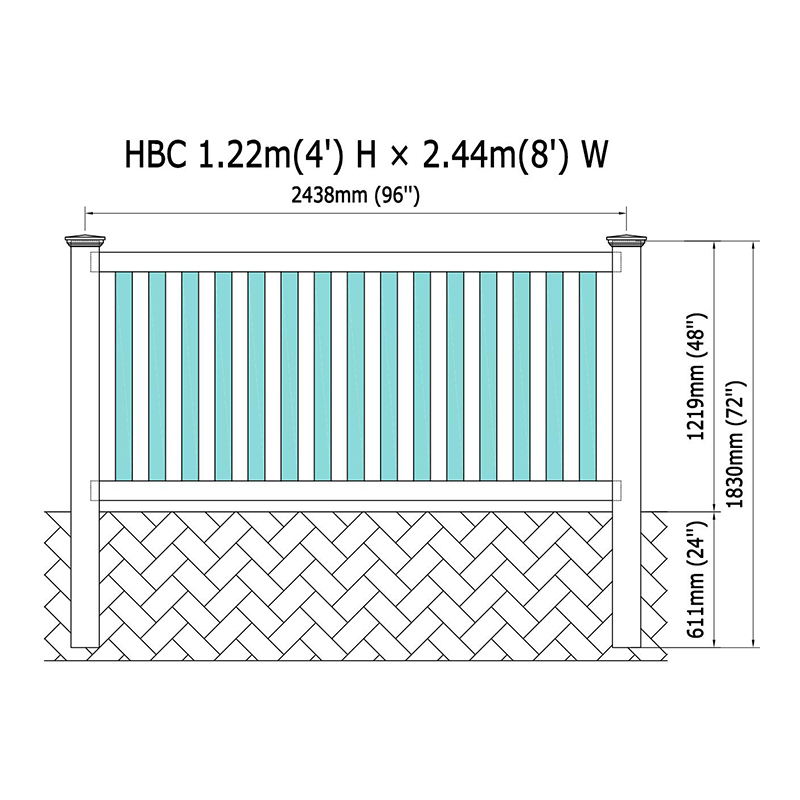

Section Anatomy: Standard Dimensions and Component Roles

Standard dimensions below are the base configuration we quote from. Heights, widths, post sizes and rail profiles are adjusted to the project, and the section volume figure is the one we use for container loading estimates.

Component Standard specification Options and notes
Overall height 48" (4 ft) Different heights available on request
Section width 96" (8 ft) Different widths available for non-standard runs
Post 4" x 4" or 5" x 5", pre-routed Line, End, Corner, 3-way or blank routing; 72" length option
Post cap New England, Flat or Gothic cap Selected to match the elevation style
Top rail 2" x 3-1/2" x 94", pre-notched, 1 pc per section Handrail and other rail profiles available
Bottom rail 2" x 3-1/2" x 94", pre-notched, 1 pc per section Aluminum insert fitted for commercial-grade strength
Pickets 7/8" x 3" x 40", 15 pcs per section Standard spacing for structural integrity
Section volume 0.08 CBM Used for loading quantity and freight planning
Gate Matching gate available Built to the opening width and hinge side

Post Layout, Routing and Configuration Options

Posts arrive pre-routed, so the layout drawing determines what we drill. Line posts carry two rail penetrations, End posts one, Corner posts two at 90 degrees, and 3-way posts three where a run branches. Blank posts are supplied where the site fabricator prefers to route on location.

  • 4" x 4" posts for standard residential runs; 5" x 5" where a heavier elevation is specified
  • Heavier wall post-and-rail configuration with notched rails for greater resistance to pullout
  • Post spacing follows the 96" section width unless a custom width is quoted
  • Gate posts are identified separately so hinge and latch loads are carried correctly

Colors, Caps and Rail Profiles

Four colors cover most orders: White, Tan, Grey and Cream. Pigments are sourced from US or German suppliers and are traceable, and the compound carries 10% DuPont TiO2 to resist chalking under UV exposure. Cap style and rail profile are chosen together, because a Gothic cap over a handrail top rail reads very differently from a Flat cap on the same run.

Rails are not limited to the standard 2" x 3-1/2" profile. Handrail profiles and other rail options are available, and the same extrusion capability supports custom profiles for OEM and ODM programmes. Related systems in the same family include the HBE 48"x96" 3-rail pool fence, the HBA PVC vertical railing fence and the HBG plastic rail fence.

Structural Performance: Aluminum Insert, Wind and Temperature

The aluminum insert in the bottom rail is the difference between a decorative picket run and a commercial-grade one. It stiffens the lower rail against sag between posts and against the point loads that occur on pool decks and public walkways. Notched rails seat into routed posts, which keeps the joint mechanical rather than relying on fasteners alone.

  • Wind performance depends on the fence style, how the posts are installed and the rail configuration; we confirm the intended exposure with the project
  • Formulation is specified for temperature resistance from -40 to 70 degrees, covering freeze-thaw cycles and hot-summer exposure
  • Engineered against surface cracking, chipping, peeling and rot; no termite or chemical treatment required
  • 100% virgin PVC throughout, lead-free, with no recycled material in the compound

Gates, Complete-System Ordering and Delivery Scope

Ordering follows one formula: Section + Post + Gate = Complete Fence. We quote the three elements against the layout drawing so nothing is short on site, and gates are built to match the fence profile, color and cap style. Section volume of 0.08 CBM lets us calculate loading quantity and container fill before the order is confirmed.

Packaging is staged after notching and drilling, and finished components are stored before dispatch. We supply installation video guidance with the order, and our technical team answers fit and assembly questions during the build.

Manufacturing and Quality Control at Our Huzhou Factory

Production runs through extrusion, cutting, hole drilling, notching, packaging and storage. An independent quality-control group inspects each extruder every hour and carries out random checks in addition, so profile dimensions and surface finish are monitored through the run rather than only at final inspection.

Raw materials are traceable: DuPont TiO2, US or German pigments and PVC resin. Our certificates include CE, ROHS and UL94, together with SGS, ASTM, ISO 9001:2000 and TUV Global Manufacturer Certificate documentation. Huazhijie vinyl fencing carries a 30-year limited warranty, and OEM and ODM orders are welcome, including new profile and style development from customer drawings.

Installation Sequence and Site Preparation

  1. Set posts to the layout drawing; treat vinyl posts as wood posts and cement them where local practice requires it
  2. Insert pre-notched rails into the routed post holes at the correct height
  3. Slide the 7/8" x 3" pickets into the rail notches at standard spacing
  4. Fit post caps last, after the run is aligned and the gate is hung

Because components are pre-cut and pre-routed, site work is assembly rather than fabrication. Confirm post embedment depth, frost line and gate swing clearance before the layout is frozen.

Information We Use to Configure Your Solution

Send the following and we return a configuration with quantities, loading estimate and quotation. Where a drawing is not yet available, a dimensioned sketch or a linear-run list is enough to start.

  • Total linear run, corner count and a layout sketch or drawing
  • Required height and section width, if not 48" x 96"
  • Post size and routing types: Line, End, Corner, 3-way or blank
  • Color, cap style and rail profile, including handrail preference
  • Gate openings, hinge side and latch direction
  • Site conditions: wind exposure, soil type, frost depth and pool-deck fixing
  • Order quantity, destination port and any OEM or ODM branding requirements

Frequently Asked Questions

What heights and widths can the HBC 48" handrail fence be supplied in?

The standard section is 48" high and 96" wide. Different heights and widths are available, and we quote them against your layout rather than forcing a standard module onto a non-standard run.

Is the bottom rail reinforced?

Yes. An aluminum insert runs inside the bottom rail to provide commercial-grade strength, which is what allows the same profile to be used on pool decks and public walkways as well as residential yards.

Can this fence be used around a swimming pool?

Pool fencing is one of its primary applications, along with front yards, gardens, balconies and railing runs. The handrail top rail gives a continuous graspable line, and the reinforced bottom rail resists the loads typical of pool-deck traffic.

What does a complete order include?

Sections, posts and matching gates, quoted together as Section + Post + Gate. Posts are pre-routed to the layout, rails are pre-notched, and pickets are cut to 7/8" x 3" x 40" at standard spacing. Installation video guidance is supplied with the order.

Do you accept OEM and ODM orders for custom profiles and colors?

We do. New fence profiles and styles are developed from customer requirements, and custom sizes are available alongside the four standard colors. As a HBC 48" pvc handrail fence manufacturer working from our own extrusion lines, we can hold a profile specification across repeat orders.

How is the fence maintained after installation?

A garden-hose rinse handles normal soiling. Stubborn marks respond to a mild abrasive cleaner suitable for fiberglass, and most paint or graffiti can be removed with ordinary detergent and water. No painting, staining or sealing is required over the service life.
