HBF 7/8"x3" small picket fence

Deqing Huazhijie Railing & Fencing Co., Ltd. has produced PVC fence systems in Huzhou, Zhejiang — a short drive from Shanghai — since 2003, running our own extrusion, cutting, drilling and notching lines. As a HBF 7/8"x3" small picket fence manufacturer, we deliver the section as a complete kit of pre-routed posts, pre-notched rails, pickets, caps and a matching gate. It is built for pool surrounds, front-yard boundaries, garden edges and balcony or railing infill where an open picket profile, low maintenance and a lead-free PVC formulation decide the specification.

A Three-Rail Picket Section Supplied as a Kit

The HBF is assembled on site rather than shipped as a welded panel. Each section is built from one bottom rail, a top and a middle rail, and two picket profiles that alternate at standard spacing to give the fence its rhythm. Posts arrive pre-routed, so rail ends drop straight into the post openings and pickets drop into the rail notches.

• Bottom rail: 2" x 3-1/2" x 94", pre-notched, with an aluminum insert for commercial strength.
• Top and middle rails: 2" x 3-1/2" x 94" each, pre-notched.
• Pickets: 7/8" x 6" x 40" (7 pcs) and 7/8" x 1-1/2" x 40" (8 pcs) at standard spacing.
• Posts: 4" x 4" or 5" x 5", pre-routed as Line, End, Corner, 3-way or blank.
• Caps: New England, Flat or Gothic post cap.

Ordering follows a simple build-up: section + post + gate = complete fence. The frame is 100% virgin PVC, uncoated, so the color runs through the profile rather than sitting on the surface.

How to Read the HBF Specification

Two numbers in the model name carry most of the engineering meaning. The 7/8" is the picket face width — the visible dimension that sets how dense the fence reads from the street or from the pool deck. The 3 refers to the three-rail frame: top, middle and bottom rail, which is what gives the section stiffness across a 96" span and resists sag over the life of the run.

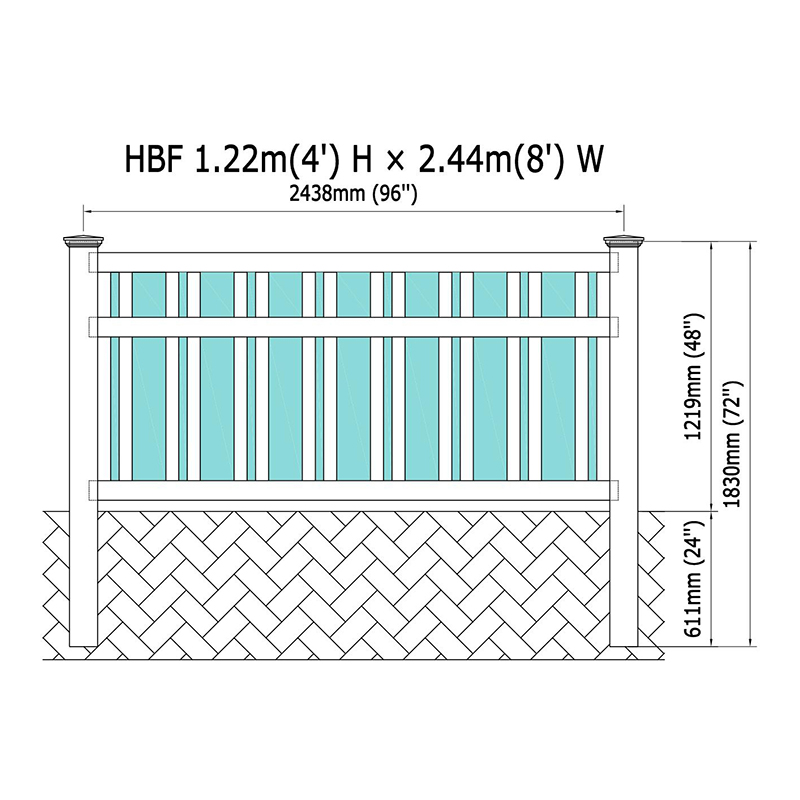

Standard section height is 48" and standard width is 96", with other heights and widths available on the same profile set. A packed section measures 0.08 CBM, which is the figure we use when calculating container loading for a project.

Configuration Options We Build To

Application Fit: Pool, Front Yard, Garden and Railing Infill

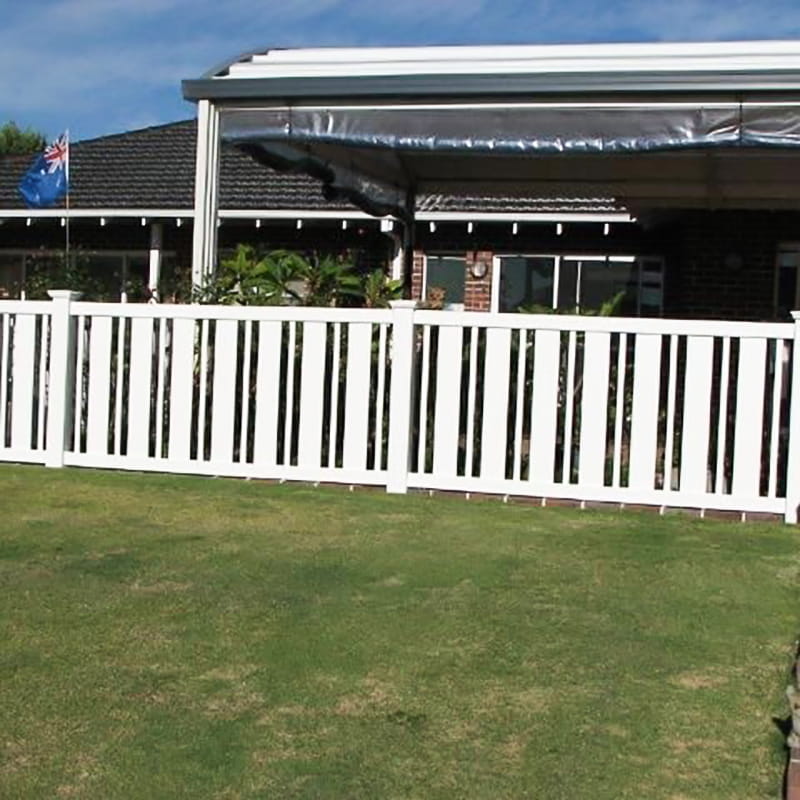

The open picket pattern keeps sightlines clear, which is why the HBF is used around pools and along front boundaries where visibility matters as much as containment. The aluminum-reinforced bottom rail carries the load where a section spans between posts, and the matching gate closes the run without a change of style.

Where a project needs a denser picket face or a taller picket rail, the same frame logic carries across our range — the HAF 1"x1" small picket fence uses a heavier picket, and the HBD 7/8"x6" picket rail fence extends the picket length for a taller elevation.

Installation, Post Routing and Gate Interfaces

Posts are routed at the factory to the position they occupy in the run — Line, End, Corner, 3-way or blank — so the installer does not cut rail openings on site. Rails slide into the post openings, pickets drop into the pre-notched rails, and post caps are fitted after the fence is standing. We recommend treating PVC posts the same way as wood posts: where local practice calls for cementing wood posts, cement the vinyl posts to the same depth.

Wind performance depends on the style, the post installation and the number of horizontal rails, so the fixing detail is part of the configuration conversation rather than an afterthought. Gates are made to match the fence and are supplied with the hinge side and swing direction set to the opening.

Material, Process Control and Compliance Evidence

The profile is 100% virgin PVC with no recycled content and no lead, stabilized with UV inhibitors and impact modifiers. Titanium dioxide at 10 parts per hundred protects the surface against chalking, and pigments are sourced from US or German suppliers so color batches stay traceable. The formulation is rated for service from -40 °C to 70 °C.

Production runs through extrusion, cutting, hole drilling, notching, packaging and storage under one roof. An independent quality-control group inspects each extruder's output hourly and pulls additional random checks, which is how wall thickness, notch position and color consistency are held across a long order.

• CE, ROHS and UL94 certification documentation.
• SGS, ASTM and ISO 9001 quality documentation, plus a TUV Global Manufacturer Certificate.
• 30-year limited warranty on the vinyl fence and railing system.
• Lead-free, non-toxic formulation with no termite or rot exposure.

Post caps are available in New England, Flat and Gothic profiles, and a HAG crown cap for picket fence can be specified where a more decorative post head is wanted.

Information We Use to Configure Your Solution

Packaging, Delivery Scope and Project Support

Each section packs to 0.08 CBM, and rails, pickets, posts and caps are bundled by position so the installer can work through the run in sequence. We support OEM and ODM orders, including custom profiles, sizes and colors developed against a client's own drawing, and we supply installation video guidance alongside the shipment.

For distributors and project teams, the handoff includes the section schedule, post routing list, gate schedule and the certificate set for the order. Where a project needs engineering input on rail configuration, handrail integration or a new fence profile, our technical staff work from the layout drawing and the working point of the installation.

Frequently Asked Questions

What do the numbers in HBF 7/8"x3" mean?

The 7/8" is the picket face width, which sets the visual density of the fence. The 3 denotes the three-rail frame — top, middle and bottom rail — that carries the pickets and stiffens the section across the span.

Can the HBF be supplied at a height or width other than 48" x 96"?

Yes. 48" height and 96" width are our standard section dimensions, and we produce other heights and widths on the same profile set. Post length can also be extended to 72" where a taller post is needed.

Is the HBF suitable for a pool enclosure?

It is one of the applications the section was designed around, together with front yard, garden and balcony or railing use. The open picket pattern keeps the pool visible from the house, and the aluminum insert in the bottom rail adds commercial strength to the span. Final barrier height and gate requirements are set by the local pool code, so we configure the section to the height and gate layout the project specifies.

How are the posts prepared, and do they need cementing?

Posts arrive pre-routed as Line, End, Corner, 3-way or blank, so rail openings are already in the correct face. We recommend handling vinyl posts the same way as wood posts: if wood posts are cemented in your area, cement the vinyl posts to the same depth.

What colors, caps and gates are available with the HBF?

Standard colors are White, Tan, Grey and Cream. Post caps come in New England, Flat and Gothic profiles, with a crown cap option for a decorative head. Matching gates are available and are made to the clear opening, hinge side and swing direction of the project.

What information do you need to quote an HBF order?

Send the linear run and post layout, required height and width, color, post size and routing types, gate openings, and any packaging or documentation requirements. With those inputs we return a section, post and gate schedule, the packed volume for container planning, and the certificate set that applies to the order.
