HAG crown cap for picket fence

HAG Crown Cap for Picket Fence from a PVC Fence Manufacturer

Deqing Huazhijie Railing & Fencing Co., Ltd. has produced PVC fence profiles and complete vinyl fence systems in Deqing, Huzhou, close to Shanghai, since 2003. The HAG crown cap for picket fence is one of the top styles we extrude, cut, route and notch in our own plant, supplied either as a finished section kit or as routed components for fabricators who assemble and install locally.

The crown cap runs along the top of the picket line, closing the picket ends and giving the fence a continuous crowned profile instead of an open picket top. It is specified on front-yard picket fencing, garden boundaries, pool surrounds and light commercial perimeters where a traditional picket appearance is required with the maintenance profile of vinyl. As a custom HAG crown cap for picket fence suppliers, we build the section around the fence line, not around a fixed catalogue size.

Where the Crown Cap Top Fits

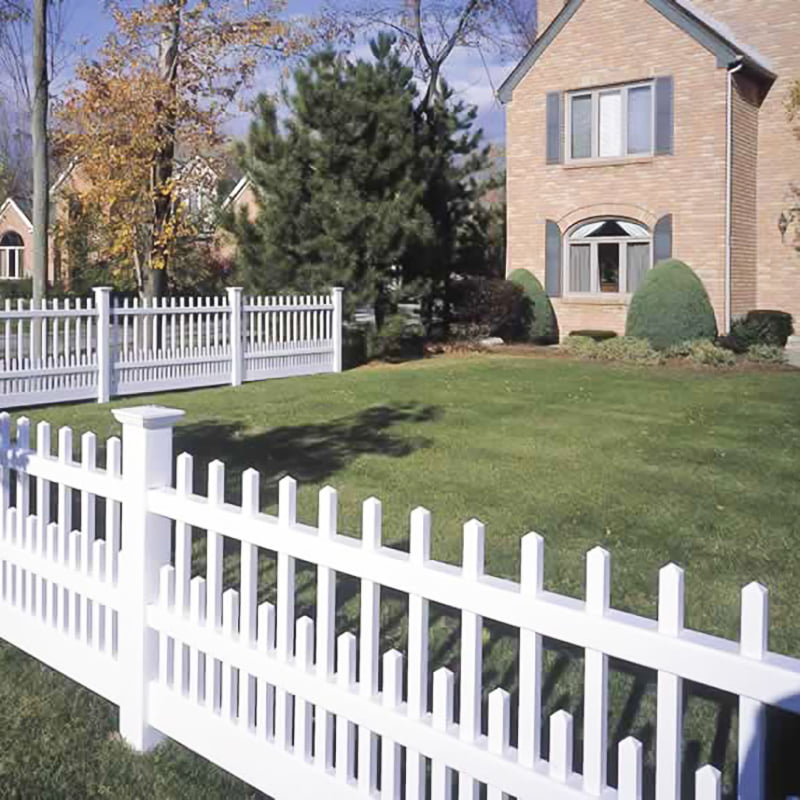

• Residential front yards and boundaries — a picket run with a finished top edge that reads as traditional fencing from the street.
• Gardens, parks and estate districts — low to medium height sections that define a boundary without blocking sightlines.
• Pool and railing surrounds — crown cap picket sections combine with HBA pvc vertical railing fence where a project mixes picket and railing elevations.
• Wood picket replacement — the same post spacing and picket rhythm, without rot, termites or repainting.
• Distributor and OEM programmes — section kits packed for resale, or profiles supplied to a fabricator's own routing pattern.

Standard Section Configuration

Reading the Specification

Height and width

The 48" x 96" section is the working baseline: 48" of picket above grade and 96" between post centrelines, which keeps the picket count and rail span in a predictable rhythm. Height changes drive picket length and the number of rails; width changes drive picket quantity and rail length. Both are cut to the project drawing rather than rounded to a stock size.

Picket size and spacing

Standard pickets are 1-1/2" x 1-1/2" x 40" at 21 pieces per section. Narrower pickets with wider gaps give a lighter, more open elevation; wider pickets or tighter spacing give a denser screen. The crown cap is extruded to match the picket face so the top line stays flush across the run.

Post routing and post caps

Posts arrive pre-routed as line, end, corner, 3-way or blank, which removes on-site routing and keeps rail heights consistent across a long run. Post caps are fitted after the fence is standing, so the New England, flat or gothic cap can be confirmed late in the project without holding up the section order.

Rails and the aluminum insert

Both rails are 2" x 3-1/2" x 94" and pre-notched to accept the pickets. The aluminum insert in the bottom rail adds stiffness where sections are long, where wind exposure is high, or where the fence is used on commercial and pool perimeters.

Material and Formulation

Sections are extruded from 100% virgin PVC with no recycled content and no lead. The formulation uses DuPont non-chalking TiO2 at 10 parts per 100, together with US or German brand pigments and domestically produced PVC resin; all incoming materials are traceable. The compound is built for long-term durability, flexibility and weatherability, with a working temperature range of -40°C to 70°C.

Colours, Caps and Matching Components

White, tan, grey and cream cover the majority of residential and estate specifications; colour is held across pickets, rails, posts, caps and gates so a completed run reads as one system. Projects that mix elevations can pair the crown cap picket section with HAE1 traditional dog ear picket or a privacy panel such as HAD2 white vinyl fence 4'Hx8'W along the same post line.

Installation and Site Interfaces

The section kit contains all rails and pickets, so a complete fence is created by adding sections, posts and gates. Components are precut and pre-routed for standard installation: rails slot into the routed post holes, pickets slot into the notched rails, and caps are attached last. The heavier wall post-and-rail configuration with notched rails increases resistance to pullout.

• Posts are set the same way as wood posts; where local practice is to cement wood posts, vinyl posts are cemented to the same depth.
• Post spacing follows the section width, so the 96" baseline should be confirmed against the actual fence line before cutting rails.
• Gate posts take the gate leaf and hardware load and are routed accordingly.
• Installation video guidance and technical support are provided with the order.

Quality Control and Acceptance

Production runs through extrusion, cutting, hole drilling, notching, packing and storage under one roof, from raw material to delivery. An independent quality-control group inspects each extruder's output every hour and carries out additional random checks, so wall thickness, colour and routing are verified during the run rather than at the end of it.

For project acceptance we supply the section and component list against the approved drawing, colour and profile references, and the certificate set. Sections are packed at 0.08 CBM each, and a 40HQ order is typically delivered within 7-10 days.

Information We Use to Configure Your Solution

Frequently Asked Questions

What is the HAG crown cap for picket fence made from?

It is extruded from 100% virgin PVC with no recycled material and no lead, using DuPont non-chalking TiO2 at 10 parts per 100 and US or German pigments. The profile is uncoated and carries a V-0 fire rating.

Can the section be supplied in a height or width other than 48" x 96"?

Yes. 48" height and 96" width are the standard working sizes, and both are cut to the project drawing. Height changes picket length and rail count; width changes picket quantity and rail length.

Does the section arrive pre-routed and pre-notched?

Posts are pre-routed as line, end, corner, 3-way or blank, and both rails are pre-notched to accept the pickets. The kit includes all rails and pickets, so assembly is adding sections, posts and gates. We can also supply profiles unrouted for fabricators who route to their own pattern.

Which colours and post caps are available?

White, tan, grey and cream, held consistently across pickets, rails, posts, caps and gates. Post caps are available as New England, flat or gothic and are fitted after installation.

Can a matching gate be supplied with the fence?

Yes. Gates are made to match the crown cap picket profile and colour, with gate posts routed to take the leaf and hardware. Gate sizing is confirmed with the fence line layout so the opening lands on a post rather than mid-section.

How is the order packed and shipped?

Each assembled section occupies 0.08 CBM, and packing is planned against the container type and the delivery sequence on site. A 40HQ order is typically delivered within 7-10 days. OEM and ODM orders are welcome, including custom profiles, colours and section sizes.

What warranty and support come with the fence?

Huazhijie vinyl fence and railing carry a fully transferable, non-prorated 30-year limited warranty covering materials, repair or replacement, freight and labour. Technical support and video installation guidance are provided with the order, and spare profiles and components are supplied from the same extrusion tooling.
