HAD2 White Vinyl Fence 4'Hx8'W: A Complete Picket Section, Shipped Knockdown

As the HAD2 white vinyl fence 4'Hx8'W manufacturer, Huazhijie ships every section as a complete 48 in. × 96 in. picket kit: pre-notched top and bottom rails, 15 pickets, and a pre-routed post that accepts the rails without field routing. Deqing Huazhijie Railing & Fencing Co., Ltd. has extruded and fabricated PVC fence profiles in Deqing, Huzhou, near Shanghai, since 2003, and the HAD2 panel sits inside our PVC picket fence range alongside traditional dog ear and small picket profiles.

• Panel kit contents: top rail, bottom rail, 15 pickets, pre-routed post and post cap.
• Standard size: 48 in. high × 96 in. wide, with other heights and widths available.
• Colors: white as standard; tan, grey and cream on request.
• System scope: sections, posts, caps and a matching gate ordered together.
• Container planning: 0.08 CBM per assembled section volume.

What Each HAD2 Specification Controls

The numbers below are the working point for a HAD2 order. Changing any one of them changes routing, packaging or the post family, so we confirm them together before extrusion.

Picket Spacing, Height and Width Configuration

Fifteen 7/8 in. × 3 in. pickets at standard spacing give the HAD2 its familiar front-yard rhythm while keeping sightlines open. Where a project needs a different visual density or a different finished line, we re-cut the rail routing and picket count rather than forcing the standard panel into the opening.

• Standard 48 in. height suits front boundaries, garden edges and pool-adjacent screening where full privacy is not required.
• Widths are cut to the module so posts land on the layout grid instead of on a cut picket.
• Picket profile changes are handled at the extrusion stage, which keeps the rail notch geometry consistent across the run.
• Color is pigmented through the profile, so a scratched picket does not expose a contrasting core.

Posts, Routing and Layout Planning

Posts arrive pre-routed to the position they will occupy in the run. That single decision — line, end, corner, 3-way or blank — is what we need from the layout drawing before cutting begins, because a corner post cannot be substituted for a line post on site.

• 4 in. × 4 in. posts for standard residential runs; 5 in. × 5 in. posts where a heavier gate or longer unsupported span is involved.
• 72 in. post length gives setting depth below grade plus the finished fence height above it.
• Aluminum insert in the bottom rail stiffens the section for commercial and higher-traffic installations.
• Post caps in New England, flat or gothic profiles close the post after installation.

Material Formulation, Weather and Fire Performance

The HAD2 is extruded from 100% virgin PVC and is not coated, so there is no skin to peel and no wood core to absorb water. Because the material does not take on moisture, rot, termite damage and the repainting cycle that follows them are removed from the maintenance budget.

• Formulation: lead-free virgin vinyl with UV inhibitors, impact modifiers and stabilizers; no recycled content.
• Weather range: rated for service from -40 °C to 70 °C.
• Fire performance: V-0 flammability rating.
• Impact behavior: elastic, high-impact resistant profiles that tolerate ground movement and minor contact.
• Compliance evidence: CE, ROHS and UL94 records, with SGS and ISO 9001 quality-system documentation available for project files.

Installation Sequence and Site Interfaces

The HAD2 assembles in the same order as a wood fence, which means crews already familiar with post-and-rail work need no new tooling. Profiles move through extrusion, cutting, hole drilling, notching, packaging and storage in our plant, so the routed holes and notches are already in place when the crate is opened.

1. Set the pre-routed posts on the layout grid, using the same footing practice the site would apply to wood posts.
2. Insert the notched rails into the routed post openings; the notch resists pull-out and locks the rail height.
3. Slide the pickets into the rail openings and seat them evenly across the section.
4. Fit post caps and picket caps last, after the fence line is true.
5. Hang the matching gate on its posts and check swing clearance against the finished opening.

Quality Control and Acceptance Evidence

An independent quality-control group inspects each extruder's production every hour and carries out additional random checks across the shift. Raw materials — PVC resin, DuPont TiO2 and US or German pigments — are traceable back through the batch, which is what allows a defect to be tied to a specific extrusion run rather than to the whole order.

• Dimensional checks on rail length, notch position, picket count and post routing before packing.
• Color and surface inspection against the approved sample for the order.
• Section count and volume verified against the loading plan; 0.08 CBM per section.
• 30-year limited warranty on the vinyl fence system, with documentation issued with the shipment.

Gates, Caps and Matching Components

A picket run is only finished when the openings are finished. We build a matching gate to the HAD2 profile so the panel line, picket spacing and color continue through the entrance, and we supply the HAG crown cap for picket fence where a decorative top line is specified. Where the design calls for a different picket head, the HAE1 traditional dog ear picket uses the same rail and post family, so a mixed elevation can be built from one component set.

For projects that need a taller, more enclosed boundary, the HBA pvc vertical railing fence shares our post and cap range and can be specified alongside HAD2 picket sections on the same site.

Information We Use to Configure Your Solution

A HAD2 quotation is built from the project data below. Send what you have and we will confirm the rest with you rather than quoting against assumptions.

Frequently Asked Questions

What is included in one HAD2 4'Hx8'W section?

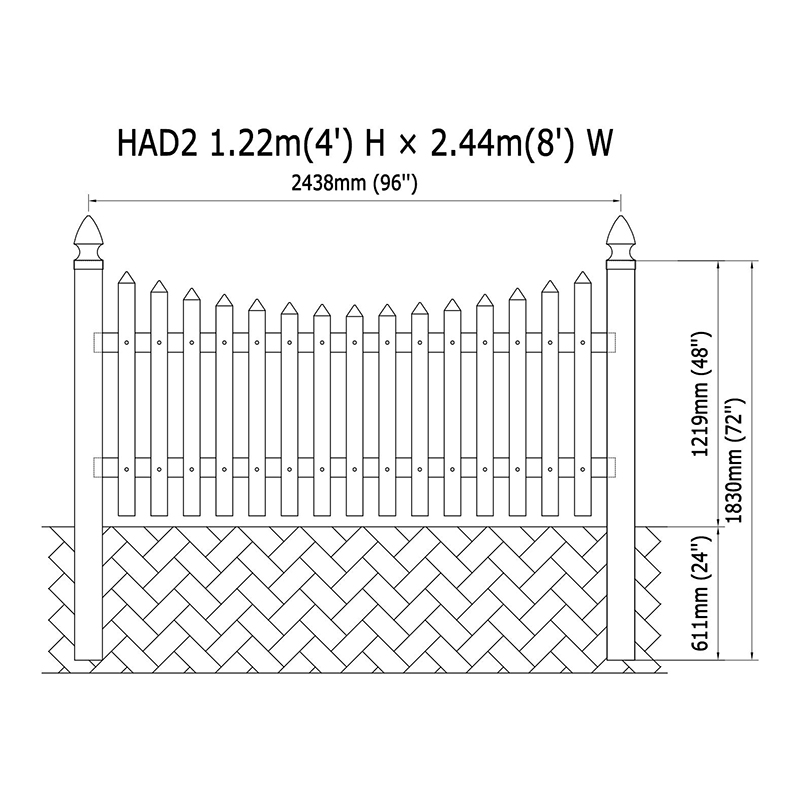

One section contains a pre-notched top rail and bottom rail at 2 in. × 3-1/2 in. × 94 in., fifteen 7/8 in. × 3 in. × 39 in. pickets at standard spacing, and a pre-routed post with its cap. The bottom rail can be supplied with an aluminum insert for commercial strength. Posts are ordered by type — line, end, corner, 3-way or blank — so the section count and the post count are quoted together.

Can the panel be produced in other heights, widths or colors?

Yes. The 48 in. height and 96 in. width are our standard, and other heights and widths are available. White is the standard color, with tan, grey and cream produced on request. Picket profile and spacing can also be changed, which is handled at the extrusion and notching stage rather than on site.

Do the posts need to be set in concrete?

We recommend treating vinyl posts the same way the site treats wood posts. Where local practice is to cement wood fence posts, cement the vinyl posts to the same depth and diameter. Post size — 4 in. × 4 in. or 5 in. × 5 in. — is selected against the fence height, the unsupported span and the wind exposure of the site.

How does the fence behave in wind and temperature extremes?

The profiles are engineered to withstand normal wind loads, with the actual load capacity depending on the fence style, the post installation and the number of horizontal rails. The material is rated for service from -40 °C to 70 °C and carries a V-0 flammability rating. Because the vinyl does not absorb water, freeze-thaw movement does not create the rot path found in wood.

Is a matching gate available for the HAD2 line?

Yes. Gates are made to match the HAD2 picket profile, spacing and color, and are sized to the finished opening. We confirm the opening width, swing direction and hinge side with the order so the gate and its posts are routed as one assembly.

What warranty and documentation ship with the order?

The vinyl fence system carries a 30-year limited warranty. Compliance and quality records — CE, ROHS, UL94, SGS and ISO 9001 — are issued with the shipment for project handover, and installation guidance is provided for crews assembling the sections for the first time.
