HAF 1"x1" small picket fence

Our "1"x1" Small Picket Fence" is the ultimate choice for enhancing your country yard. Crafted from 100% virgin PVC, this fence is designed for durability, offering high impact resistance and low maintenance. Unlike traditional wood, it won't absorb water, eliminating the risk of rot.

Installation is a breeze with our easy DIY system. Simply combine sections, posts, and gates to create your complete fence in no time. With a warranty of 30 years, you can trust in the longevity of this product.

Each panel kit includes all necessary rails and pickets, making setup straightforward. Plus, our fences are fireproof with a V-0 rating, ensuring safety and compliance with standards, backed by certifications from SGS, CE, and ISO9001. Delivery is quick, taking just 7-10 days for a 40HQ order.

Product Description

Pvc fences offer various benefits compared to other fence panels such as wood, they don't absorb water, and therefore, they can't rot.

Frame Material:100% Virgin PVC/ Plastic,Not Coated

China-made material

Different pickets available

Designed for simple and fast Do-It-Yourself installation

Panel kit includes all rails, and pickets

Fence Top Style Pvc 1"x1" small picket fence
Color White, Tan, Grey, Cream
Height Standard height 48", Different heights available
Width Standard width 96", Different widths available
Post 4"x 4" or 5"x 5" or optional x 72'',pre routed as Line,End,Corner,3-ways or blank.
Post Cap New England Cap,Flat Cap,Gothic Cap
Bottom Rail 2"x 3-1/2"x 94''x1pcs, pre notched
Top Rail 2"x 3-1/2"x 94''x1pcs, pre notched
Aluminum Insert Aluminum insert in bottom rail for commercial strength
Picket 1"x 1"x 40'' x 19pcs (standard spacing)
Volume of Section 0.08CBM, loading QTTY inquiry
Matching Gate Available

Contact Us for More Details

Don't hesitate to contact when you need us!

SUBMIT

About
Deqing Huazhijie Railing & Fencing Co.,Ltd.
Deqing Huazhijie Railing & Fencing Co.,Ltd.
Deqing Huazhijie Railing & Fencing Co.,Ltd. is China HAF 1"x1" small picket fence suppliers and HAF 1"x1" small picket fence company, which is located near Shanghai, established in 2003, is a professional manufacturer engaged in the research, development, production, sale, and service of PVC fence and PVC flooring. We are located in Huzhou, which has convenient transportation access. Dedicated to strict quality control and thoughtful customer service, our experienced staff members are always available to discuss your requirements and ensure full customer satisfaction.
If you select a current product from our catalog or want help with your application, you can go ahead and discuss your sourcing requirements with our customer service center.
Certificate Of Honor
  • Deqing Huazhijie Railing & Fencing Co.,Ltd.
  • Deqing Huazhijie Railing & Fencing Co.,Ltd.
  • Deqing Huazhijie Railing & Fencing Co.,Ltd.
  • Deqing Huazhijie Railing & Fencing Co.,Ltd.
  • Deqing Huazhijie Railing & Fencing Co.,Ltd.
News
PVC Picket Fence Industry knowledge

Deqing Huazhijie Railing & Fencing Co.,Ltd. is a PVC fence manufacturer based in Deqing, Huzhou, near Shanghai, producing extruded vinyl fence systems since 2003. The HAF 1"x1" small picket fence is our compact-picket profile for front yards, garden boundaries and country properties where an open, traditional picket line is wanted rather than a solid privacy screen. Each section is supplied as a pre-notched panel kit — rails, pickets, routed posts and caps — so a distributor, contractor or project team receives parts that assemble without on-site routing.

What the HAF Panel Kit Contains

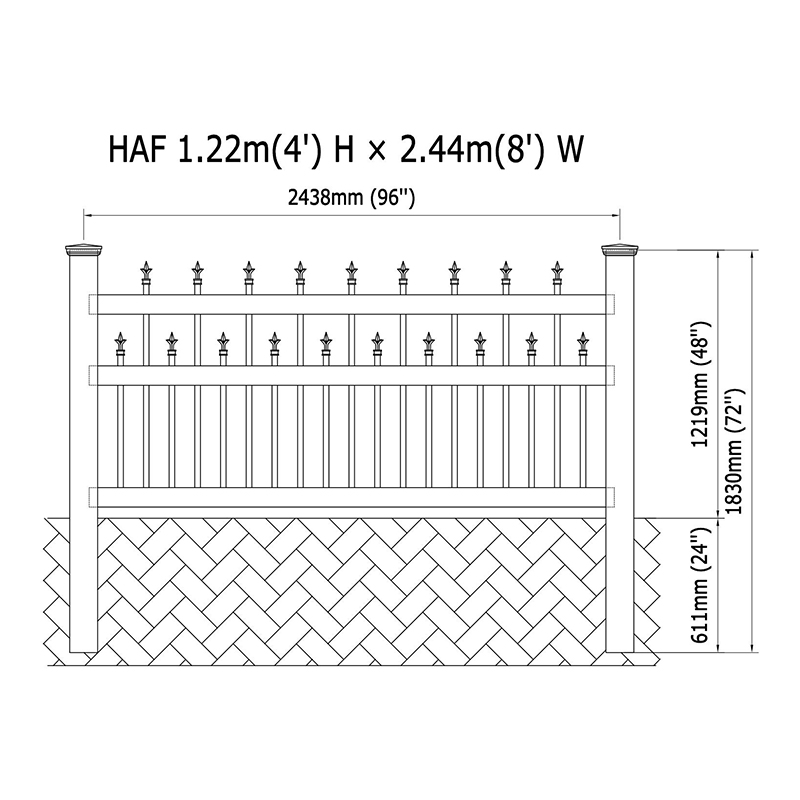

The standard HAF section is 48" high and 96" wide, built from 19 pickets measuring 1"x1"x40" at standard spacing. Top and bottom rails are 2"x3-1/2"x94" and arrive pre-notched, so pickets seat into the rail without field cutting. An aluminum insert runs inside the bottom rail to add stiffness for commercial-strength runs, and the section occupies 0.08 CBM for container planning.

Posts are supplied pre-routed in 4"x4" or 5"x5" profiles at 72", configured as line, end, corner, three-way or blank depending on how the run turns. Post caps are ordered separately in New England, flat or gothic styles, and a matching gate can be produced to the same profile and colour as the fence line.

Specification Breakdown

Component Standard Build Configurable Options
Picket 1"x1"x40", 19 pcs per section Picket spacing and picket length variants
Top rail 2"x3-1/2"x94", pre-notched, 1 pc Rail length matched to panel width
Bottom rail 2"x3-1/2"x94", pre-notched, 1 pc Aluminum insert for commercial strength
Post 4"x4" or 5"x5", 72", pre-routed Line, end, corner, three-way or blank routing
Post cap New England, flat or gothic Style and colour matched to the run
Panel size 48" high x 96" wide Other heights and widths available
Colour White, tan, grey, cream Custom colour matching on OEM/ODM orders
Gate Matching gate available Width, hinge side and latch position to layout

Material and Formulation

The HAF profile is extruded from 100% virgin PVC rather than coated or recycled stock, which is why the section does not absorb water and cannot rot the way a timber picket line does. Our formulation uses US DuPont TiO2 at 10 parts per 100 for non-chalking performance, plus US or German brand pigments and domestically sourced PVC resin, all traceable back through the batch.

The finished fence is lead-free and carries a V-0 fire rating. Service temperature range is stated at −40 °C to 70 °C, and the system is engineered to resist normal wind loads, with actual performance depending on fence style, post installation and rail configuration.

Where the 1"x1" Small Picket Fence Fits

This is an open picket line, so it defines a boundary and adds curb appeal without blocking sightlines or airflow. Typical placements include front yard perimeters, garden and lawn edges, estate district boundaries, park and community landscaping, and farm or parking area demarcation.

  • Front yards and residential boundaries — 48" height with 1" pickets gives a traditional street-facing look.
  • Garden and landscape edges — light visual weight suits planting beds and pathways.
  • Commercial and municipal runs — specify the aluminum bottom-rail insert and 5"x5" posts for longer unsupported spans.
  • Projects needing a lighter or heavier picket — the HBF 7/8"x3" small picket fence uses a slimmer picket, while the HAE1 traditional dog ear picket carries a shaped top for a more classic elevation.

Configuration Choices That Shape the Quotation

Because every HAF run is assembled from routed posts and notched rails, the configuration is fixed before extrusion. These are the variables that change a proposal most:

  • Panel height and width, including non-standard sizes for retrofit or tight property lines.
  • Post size, post length and routing type at each post position.
  • Picket spacing, which sets both the visual density and the picket count per section.
  • Bottom-rail aluminum insert for commercial or high-traffic installations.
  • Cap style — New England, flat or gothic — and whether a decorative HAG crown cap for picket fence is required on gate or corner posts.
  • Gate quantity, swing direction and hardware preparation.
  • Colour, including custom matching under OEM and ODM programmes.

Installation and Site Interfaces

Installation follows the same sequence as a timber picket fence, but without the routing work. Posts arrive pre-routed, rails arrive pre-notched, and the pickets drop into the rail openings; post caps are fitted after the fence line is set. The heavier wall post-and-rail configuration combined with notched rails increases resistance to pull-out and gives a stronger mechanical fastening.

We recommend treating vinyl posts the same way as wood posts on site — where local practice is to cement fence posts, cement the vinyl posts as well. We supply video installation guidance and technical support for crews and distributors, and the panel kit is designed for straightforward do-it-yourself assembly by the end customer.

Production Control and Acceptance Evidence

Production runs through extrusion, cutting, hole drilling, notching, packaging and storage, with all stages under our own control from raw material to dispatch. An independent quality-control group inspects each extruder's output every hour and carries out additional random examination, so profile wall thickness, colour and notch geometry are checked during the run rather than only at final packing.

Certification held across the fence range includes SGS, CE, ISO 9001, ASTM and TUV global manufacturer certification, with ROHS and UL94 evidence available for the material formulation. The HAF fence itself is supplied with a 30-year limited warranty.

Information We Use to Configure Your Solution

To prepare an accurate configuration and quotation for a HAF run, we work from the project data below. Sending these details with an enquiry shortens the review cycle considerably.

  • Total linear run length and a simple layout sketch showing corners, ends and gate positions.
  • Required panel height and width, or confirmation that the 48"x96" standard applies.
  • Colour selection and whether a custom colour match is needed.
  • Post size preference and the routing type required at each position.
  • Ground conditions and local wind exposure, so post setting and rail reinforcement can be matched.
  • Gate count, opening width and hardware expectations.
  • Order quantity, destination port and any labelling, pallet or packaging requirements.
  • Whether the order is a catalogue selection or an OEM/ODM development with new profiles or sizes.

Packaging, Delivery and Project Handoff

Sections are packed as complete kits with all rails and pickets included, which keeps component counts aligned with the layout and simplifies receiving checks. At 0.08 CBM per section, container loading can be calculated early in the project, and a 40HQ order is typically completed in 7–10 days.

Our export experience covers Canada, the USA, European countries, Australia and New Zealand, and we handle OEM and ODM orders alongside catalogue supply. For larger programmes we can develop new fence profiles and styles to a customer's drawing, and we provide installation documentation and technical guidance through handoff. As a HAF 1"x1" small picket fence manufacturer, we build the panel kit, the posts and the matching gate as one coordinated system.

Frequently Asked Questions

What exactly is included in one HAF panel kit?

One standard section includes 19 pickets at 1"x1"x40", one pre-notched top rail and one pre-notched bottom rail at 2"x3-1/2"x94", with an aluminum insert in the bottom rail. Posts, post caps and gates are specified separately according to the layout.

Can the HAF fence be supplied in heights or widths other than 48"x96"?

Yes. The 48" height and 96" width are our standard, and we produce other heights and widths to suit the property line or the project drawing. Non-standard sizes affect rail length, picket count and post routing, so they are confirmed at configuration stage.

Is the fence suitable for commercial installations rather than single residential lots?

For commercial-strength runs we specify the aluminum insert in the bottom rail and can move to 5"x5" posts. Wind performance depends on fence style, post installation and rail configuration, so we review exposure and ground conditions before confirming the build.

Does the fence need painting, sealing or ongoing maintenance?

No. The profile is 100% virgin PVC with no coating, so it does not absorb water, rot, or require repainting. Normal cleaning is a rinse with a garden hose; more stubborn marks can be removed with a mild abrasive cleaner suitable for fibreglass surfaces.

How are the posts prepared, and do they need to be cemented?

Posts arrive pre-routed as line, end, corner, three-way or blank, so rails slot straight in on site. We recommend setting vinyl posts the same way as wood posts — where local practice is to cement fence posts, cement the vinyl posts too.

Can you produce a matching gate and custom colours?

Matching gates are available in the same profile and colour as the fence line, with width and hardware preparation set to the layout. White, tan, grey and cream are standard, and custom colour matching is handled through our OEM and ODM service.
