The Alternative Semi Privacy Fence, designed to provide a perfect balance of openness and seclusion. Available in four elegant colors—White, Tan, Grey, and Cream—this fence not only enhances your property's aesthetics but also complements various architectural styles.
Standing at a standard height of 72 inches, with customizable options for different heights, the fence creates an inviting barrier while allowing light and air to flow through. Each panel has a standard width of 96 inches, but we also offer various width options to fit your unique needs.
Constructed with robust 4"x 4" or 5"x 5" posts, our fence is designed for durability. Each post comes pre-routed for easy installation as a line, end, corner, or blank post. You can also choose from attractive post caps, including the New England Cap, Flat Cap, or Gothic Cap, to add a decorative touch.
With a volume of 0.166 CBM per section, our fence is efficient to transport and install. Plus, matching gates are available to complete your fencing solution, making it easy to create a cohesive look throughout your property. Choose our Alternative Semi Privacy Fence for a stylish, functional boundary that enhances both privacy and the beauty of your outdoor area.
Inquiry
Product Description
Garden semi privacy fence,modern privacy solutions
Frame Material:100% Virgin PVC/ Plastic,Not Coated
Easy to install,More elastic and high impact resistance,Vinyl Is Durable and Low Maintenance.
Pvc posts, Rails, Picket, Lattice, 2 or 3 Tongue & Groove panels
Avaliable 4 kinds of difference post caps
Panel kit includes all rails, and pickets
| Fence Top Style | Pvc alternative semi privacy fence |
| Color | White, Tan, Grey, Cream |
| Height | Standard height 72", Different heights available |
| Width | Standard width 96", Different widths available |
| Post | 4"x 4" or 5"x 5" or optional x 102'', pre routed as Line,End,Corner,3-ways or blank. |
| Post Cap | New England Cap,Flat Cap,Gothic Cap |
| Bottom Rail | 2"x 3-1/2"x 94''x1pcs, pre notched |
| Middle Rail | 2"x 3-1/2"x 94''x1pcs, pre notched |
| Top Rail | 2"x 3-1/2"x 94''x1pcs, pre notched |
| Aluminum Insert | Aluminum insert in bottom rail for commercial strength |
| Picket | 7/8"x 3"x 68'' x 23pcs (standard spacing) |
| Volume of Section | 0.166CBM, loading QTTY inquiry |
| Matching Gate | Available |
Contact Us for More Details
Don't hesitate to contact when you need us!
Plastic fencing panels look simple from a distance: a neat row of white or colored infill between p...
READ MOREA scalloped vinyl picket fence has a way of making a boundary feel welcoming without making it feel...
READ MOREWhen someone asks us for a “portable” PVC picket fence, the first thing we do is ask where it will ...
READ MOREHorses have a talent for finding the weak point in any fence. That is exactly why so many yards kee...
READ MOREIf you have ever requested a quotation for "PVC fence profiles and panels" and received two price l...
READ MOREDeqing Huazhijie Railing & Fencing Co., Ltd. has produced PVC fencing in Huzhou, Zhejiang, near Shanghai, since 2003. The HFA alternative semi privacy fence is our mid-openness panel system: a 72 in. standard height with 7/8 in. × 3 in. pickets set at standard spacing, so daylight and air move through the panel while sightlines from the street are broken. We extrude it from 100% virgin, lead-free PVC with no recycled content, and we ship it as a routed, pre-notched kit that assembles much like a wood fence without the repainting, sealing or rot.
As a Hfa Alternative Semi Privacy Fence manufacturer, we match product configuration to the application, operating limits, interfaces and acceptance criteria defined for each project.

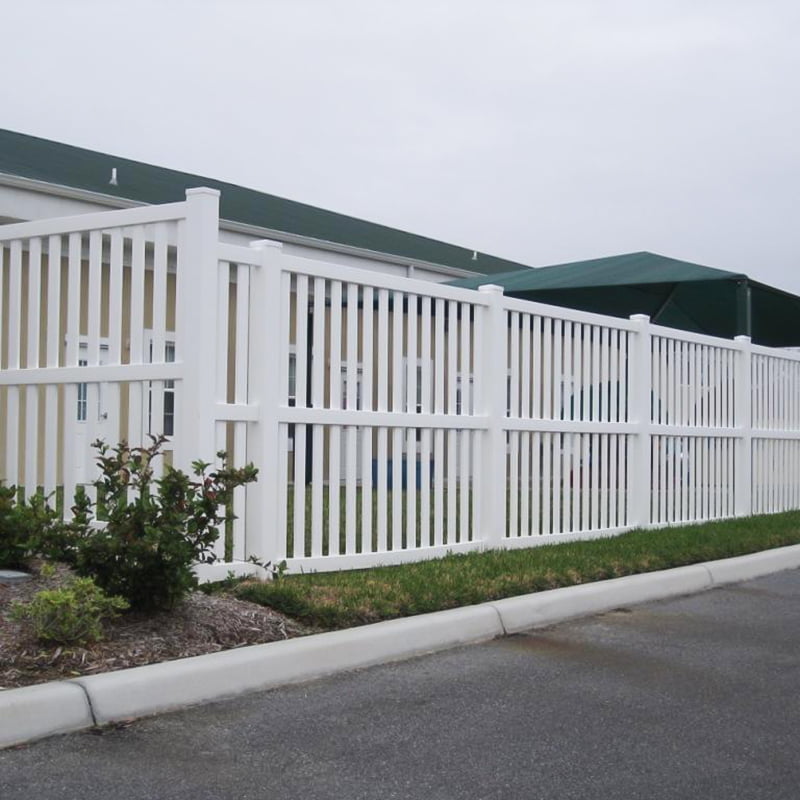

Semi privacy is a deliberate middle position. A solid tongue-and-groove panel blocks the view completely; a picket or rail fence leaves it almost entirely open. The HFA panel sits between the two, using vertical pickets with consistent gaps so the boundary reads as a defined property line rather than a solid wall.
That makes the panel useful where a full privacy screen would look heavy or would cut light from a patio, but where an open picket fence would leave too much on display. The same geometry works on a residential lot line, around a pool deck, or along a light commercial frontage.

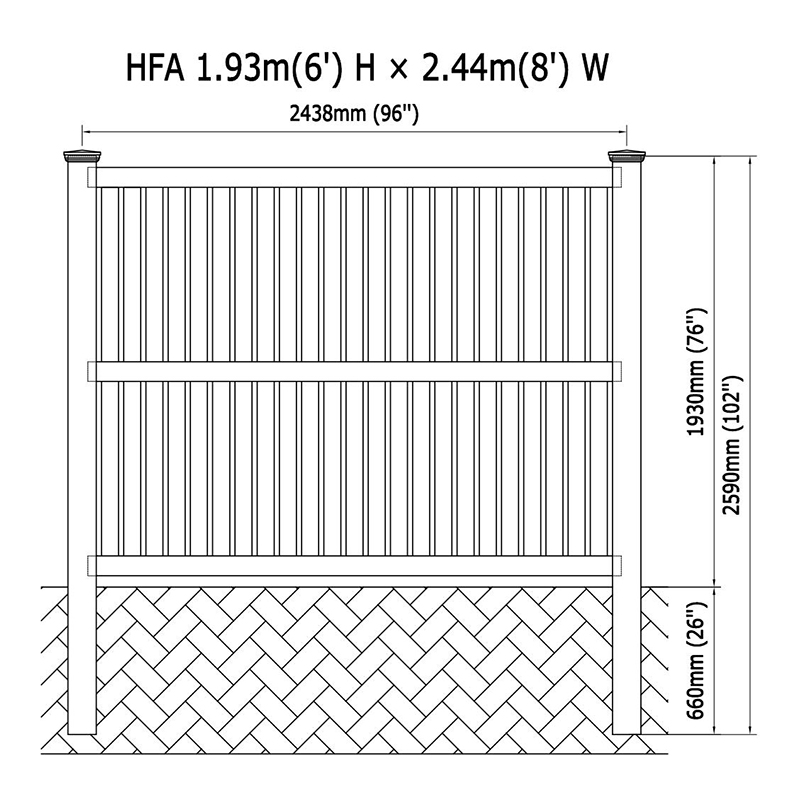

| Component | Standard specification | Configuration notes |
|---|---|---|
| Panel height | 72 in. | Other heights available to suit the run |
| Panel width | 96 in. | Other widths available for non-standard bays |
| Post | 4 in. × 4 in. or 5 in. × 5 in., 102 in. optional length | Pre-routed as line, end, corner, 3-way or blank |
| Top and middle rail | 2 in. × 3-1/2 in. × 94 in., 1 pc each | Pre-notched for picket insertion |
| Bottom rail | 2 in. × 3-1/2 in. × 94 in., 1 pc | Aluminum insert for commercial strength |
| Picket | 7/8 in. × 3 in. × 68 in., 23 pcs | Standard spacing; panel kit includes all rails and pickets |
| Post cap | New England, Flat or Gothic | Fitted after the fence is assembled |
| Section volume | 0.166 CBM per section | Used for container loading and freight planning |
| Gate | Matching gate available | Built to the same profile and color as the run |
Height sets the screening level and the wind area the post has to carry. At 72 in. the panel screens a standing adult from the street side while still letting light through the picket gaps. Lower heights suit front-yard definition; taller runs need the 5 in. × 5 in. post and closer post spacing.
Width controls bay count and the number of posts and caps in the order. A 96 in. bay is the standard module; when a run does not divide evenly, we produce the shorter bays rather than forcing the installer to cut rails on site.
Post routing is the interface that decides how the fence turns. Line posts carry the run, end posts terminate it, corner and 3-way posts handle direction changes, and blank posts are supplied where a post is needed without rail penetrations. Getting the count right at quotation stage avoids on-site drilling.
Picket spacing is fixed at standard spacing for the 23-picket panel. Where a project needs a denser or more open field, the picket count and rail notching are set accordingly at the profile stage.
The HFA panel is produced in White, Tan, Grey and Cream, all pigmented through the profile rather than coated, so the color does not depend on a surface film. Post caps are available in New England, Flat and Gothic profiles, which changes the silhouette of the run without changing the panel itself.
Panels can be configured with 2 or 3 tongue-and-groove sections where a project wants a solid lower band with an open upper field — a common request for pool surrounds and patio edges. Matching gates complete the run so the entrance does not read as a different product line.
For projects that need a fully closed boundary, our HEA PVC privacy panel fence 6'x8' covers the same footprint with a solid panel. Where a louvered look is preferred, the HFC louvered semi privacy fence uses angled slats instead of vertical pickets.
Profiles are extruded from 100% virgin vinyl with no recycled material and no lead. Titanium dioxide is added at 10 parts per 100 using DuPont TiO2 to resist chalking, and pigments are sourced from US or German suppliers. Raw materials are traceable through the production record.
Finished fencing is rated for service from −40 °C to 70 °C, which covers the climate range of our export markets in Canada, the USA, Europe, Australia and New Zealand. Our quality system holds SGS, ASTM, ISO 9001 and TUV Global Manufacturer certification, and the fence carries a 30-year limited warranty. An independent quality-control group inspects each extruder line hourly and runs additional random checks across the shift.
Posts arrive routed, rails arrive notched and components arrive precut, so site work is assembly rather than fabrication. Rails slide into the routed post openings, pickets drop into the notched rails, and post caps are fitted last. The notched rail and heavier wall section give greater resistance to pull-out than a plain butt joint.
Posts are set the same way as wood posts; where local practice is to concrete wood posts, the same applies here. We supply installation video guidance and technical support for the assembly sequence, and we can review a site layout drawing before the order is released so post types and bay widths match the actual run.
We prepare a configuration and quotation from the project data below. Sending these together shortens the turnaround considerably.
Production runs through extrusion, cutting, hole drilling, notching, packing and storage at our Huzhou plant, with the extrusion line and downstream tooling under our own control. That sequence is what allows us to route posts and notch rails to a specific layout rather than shipping generic stock.
We hold more than 500 PVC profiles and accept OEM and ODM work, including new fence profiles developed to a customer's drawing. Orders ship with a packing list and loading plan; for larger programs we can sequence deliveries against a construction schedule. Related panel formats in the same family include the HFB PVC semi-private fence panels, which share the post and rail interface.
As a China-based PVC fence manufacturer, we build the HFA panel to order rather than to a fixed catalog line, and our team works directly with contractors, distributors and project engineers on the custom HFA alternative semi privacy fence suppliers configuration that fits the site.
The picket field is open, so light and air pass through the panel and the boundary reads as semi private rather than solid. A full privacy panel such as the HEA closes the field completely. Both use the same routed post and notched rail interface, so a project can mix the two along one run.
Yes. 72 in. height and 96 in. width are the standard module, and we produce other heights and widths to suit the run. Non-standard bays are quoted from the layout, and post length is adjusted with the height.
No. The color is pigmented through the vinyl profile, and the formulation is built to resist chalking, cracking, chipping, peeling and rot over its service life. Normal cleaning is a garden hose rinse; tougher marks come off with a mild abrasive cleaner suitable for fiberglass.
Treat them as you would wood posts. Where local practice is to concrete wood fence posts, concrete the vinyl posts the same way. Posts arrive pre-routed for their position in the run, so no on-site drilling is needed for rail entry.
Yes. Matching gates are available in the same profile, color and post cap style, so the entrance reads as part of the same system. Gate quantity, opening width and hinge side are confirmed at quotation.
Each section occupies 0.166 CBM, which we use to build the container loading plan. Panels ship as flat kits — rails, pickets, posts and caps — and assemble on site, which keeps freight volume down compared with pre-assembled panels.
