HFC louvered semi privacy fence

HFC Louvered Semi Privacy Fence: Louvered Screening in a Complete Section Kit

As a Hfc Louvered Semi Privacy Fence manufacturer, we match product configuration to the application, operating limits, interfaces and acceptance criteria defined for each project.

Deqing Huazhijie Railing & Fencing Co., Ltd., established in 2003 in Huzhou near Shanghai, is the HFC louvered semi privacy fence manufacturer behind this panel. Each section arrives as a kit: ten louver slats, a pre-notched top and bottom rail, and a pre-routed post, so a run assembles in the same sequence as a wood fence but without field routing, face screws or on-site cutting of frame members.

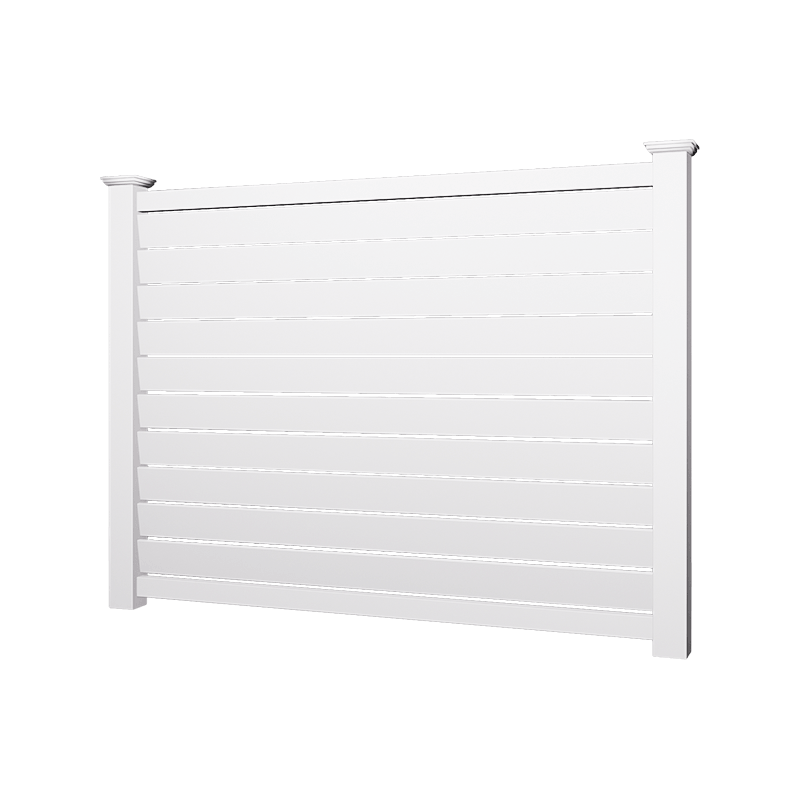

The standard section is 72 in high and 72 in wide, with other heights and widths produced to order. Ten slats at 7/8 in x 6 in x 70 in stack between the rails to interrupt direct sightlines while keeping the open gaps that let air pass along the fence line, which is what separates a semi privacy build from a solid T&G panel.

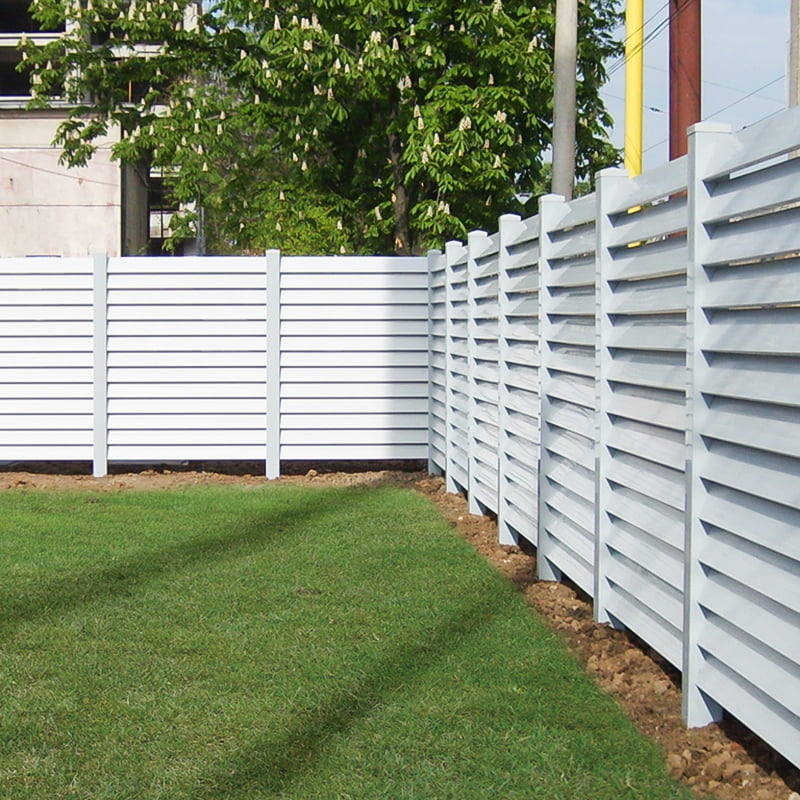

• Residential boundaries where a full solid panel would shade planting beds, block breezes or hold heat against a wall.
• Garden and courtyard perimeters that need separation from a neighbouring property without a complete visual block.
• Community, rental and light-commercial runs where appearance, low maintenance and component replacement matter over a long service life.
• Full screening projects move to the HEA PVC privacy panel fence 6'x8', and lighter-screening alternatives sit alongside this model in the HFA alternative semi privacy fence.

Section Anatomy and Specification Values

Rails and slats are cut, drilled and notched before packing, so the component dimensions below are fixed when the order is confirmed rather than adjusted on site. The 70 in rail and slat length suits the 72 in nominal section width, and the notch pattern determines how the top and bottom rails lock into the post pocket.

Post Routing, Layout Planning and Post Caps

Each post is routed for the position it occupies in the run, so a corner post and a line post are not interchangeable once they reach the site. A simple layout plan — straight runs, corners, ends, T-junctions and gate openings — is enough for us to route the correct post set and to state the section count that matches the measured run.

• Line post — rail entries on two opposite faces for a straight run.
• End post — single rail entry where a run starts or finishes.
• Corner post — rail entries on two adjacent faces.
• 3-way post — entries on three faces, typically at a T-junction.
• Blank post — unrouted and held for gate frames, future connections or site drilling.

New England, Flat and Gothic caps close the post tops and are supplied in the same color family as the fence body, so the run reads as one assembly rather than a fence with mismatched fittings.

Material Formulation, Color and Weathering

Profiles are extruded from rigid PVC with UV inhibitors, impact modifiers and stabilizers, and are through-colored rather than coated, so a surface scratch does not expose a different substrate. Lead is not used in the formulation and fence profiles are produced from virgin vinyl rather than regrind.

Non-chalking protection comes from titanium dioxide held at 10 parts per hundred, supported by pigments from US and German suppliers and PVC resin sourced domestically. Raw materials are traceable through the production process, which is what allows a formulation question on a repeat order to be answered against the original batch.

Gates, Assembly Interfaces and Installation Scope

Matching gates are produced from the same profile family, so the gate frame, hinge post and cap keep the color and section appearance of the fence line. Gate opening width, swing direction and hinge side are confirmed at order stage because the gate posts are routed separately from the run posts.

Fitting sequence follows the pattern used for wood fencing: set the posts, slide the pre-notched rails into the routed post pockets, seat the ten louver slats, then fit the caps. Rails are held by the notch and post pocket rather than by fasteners driven through the face of the section.

• Post embedment and concrete practice follow local soil, frost and wind conditions; we recommend treating vinyl posts the same way as wood posts in the same region.
• Hinge posts, end posts and gate posts carry higher point loads than mid-run line posts, so they are routed and set accordingly.
• Post caps are the last components fitted, which keeps the route and rail joints accessible during assembly.

Manufacturing Flow, Quality Control and Compliance Evidence

1. Extrusion of rails, slats and posts
2. Cutting to section length
3. Drilling of post and rail routes
4. Notching of top and bottom rails
5. Packaging of section kits
6. Warehousing and container loading

An independent quality control group inspects each extruder every hour and carries out additional random sampling, so dimensional checks continue through a production run rather than stopping at first-article approval. Extrusion capacity, drilling and notching sit in the same plant, which keeps section kits matched to the routing that was agreed for the project.

• Certificates held: CE, RoHS and UL94, with SGS, ASTM, ISO 9001:2000 and TUV Global Manufacturer Certificate documentation.
• Warranty: a 30-year limited warranty covering repair or replacement of materials, transferable and non-prorated.
• Shipping record: products are supplied across China and exported to Canada, the USA, European countries, Australia and New Zealand, among other markets.

OEM/ODM Customization, Packaging and Delivery

OEM and ODM work covers custom heights, widths, louver counts, colors and entirely new fence profiles, drawn from a catalog of more than 500 PVC profiles. Panel kits are prepared with the rails and pickets for the confirmed configuration, and sections are packed for container loading using the 0.166 CBM per-section figure for volume planning.

Packing format, carton or bundle marking, container type and load sequence are agreed before production so the delivered scope matches the receiving plan. Where a project needs private-label packaging or branded documentation, the artwork and wording are confirmed at the same stage as the routing plan.

Maintenance and Long-Term Serviceability

Normal care is a garden hose rinse. More stubborn marks come off with a mild abrasive cleaner of the type used for fiberglass surfaces, graffiti with ordinary detergent or a pressure washer, and difficult residues with a paint thinner or dry-cleaning fluid finished with 400 grit paper where needed. The material does not require painting, sealing or termite treatment.

Because a section is an assembly of discrete rails, slats and a routed post rather than a bonded panel, an individual slat or rail can be replaced inside a standing frame. Consumable parts for a project — caps, slats, rails and gate hardware — can be quoted as a running spares allowance alongside the original fence order.

Information We Use to Configure Your Solution

A quotation is built from the layout and site data rather than from a headline price per section, because routing, gate posts and pack format all change with the project. The following inputs are enough for us to return a configuration and price.

• Total linear run, section count and post spacing, including any stepped or raked sections
• Required height and width where these differ from the 72 in x 72 in standard
• Color, post cap style and gate schedule with opening widths and swing direction
• Post routing map: line, end, corner, 3-way and blank positions
• Site conditions such as wind exposure, soil type and frost depth for embedment planning
• Documentation required for handover: certificates, warranty terms, packing list and OEM artwork
• Delivery details: destination port, container preference and receiving schedule

Questions We Answer Most Often

What are the standard dimensions of the HFC louvered semi privacy fence?

The standard section is 72 in high and 72 in wide with a 70 in rail and slat length, and different heights and widths are produced to order. Posts are 4 in x 4 in or 5 in x 5 in, with longer lengths available up to 102 in.

How much privacy does a louvered section give compared with a solid panel?

Ten louver slats per section break up direct sightlines while leaving gaps that allow airflow, so it screens without sealing a boundary completely. Where full visual blocking is required, a solid T&G panel such as the HEA privacy panel fence is the appropriate build.

Can the posts be routed for corners, T-junctions and gate openings?

Yes. Posts are pre-routed as line, end, corner, 3-way or left blank, and we route each post to the position shown on the layout plan provided with the order. New England, Flat and Gothic post caps are available.

Are matching gates available for this fence line?

Matching gates are produced from the same profile family in the same colors, so the gate frame and hinge post keep the appearance of the run. Opening width, swing direction and hinge side are confirmed when the order is placed.

Does the fence need painting, sealing or termite treatment?

No. The profiles are extruded in PVC with UV inhibitors and through-color pigments, so there is no coating to renew, no rot and no termite exposure. Routine care is a rinse with water, with detergent or a mild abrasive cleaner for marks.

Can you produce custom heights, colors and OEM profiles?

We accept OEM and ODM orders covering custom sizes, colors, louver counts and new profiles, with more than 500 PVC profiles already tooled. Send the layout, size and branding requirements and we will confirm the configuration, packing format and quotation.
