HFB pvc semi-private fence panels

Deqing Huazhijie Railing & Fencing Co.,Ltd. has manufactured PVC fencing from our Deqing, Huzhou facility near Shanghai since 2003, and we supply the HFB PVC semi-private fence panel as a complete routed kit — posts, rails, pickets, caps and matching gates. The panel is our mid-privacy system: 7/8" x 6" pickets close off direct sightlines at eye level while open bands above and below keep light and airflow moving through the fence line. It suits residential boundaries, garden and courtyard divisions, and commercial landscaping where a solid privacy wall would sit too heavily on the site.

Where the HFB Panel Fits in a Project

As a Hfb Pvc Semiprivate Fence Panels manufacturer, we match product configuration to the application, operating limits, interfaces and acceptance criteria defined for each project.

The HFB PVC semi-private fence panels sit in the middle of our semi-private range, between the more open profiles and the louvered construction in the same family. Typical applications include:

• Front and side boundaries where a full privacy panel would darken the yard or block prevailing breeze.
• Community and HOA streetscapes that need a uniform fence line with landscaping still visible behind it.
• Rental, commercial and light industrial perimeters that must resist rot, termites and repainting.
• Garden, courtyard and pool-deck surrounds where local code permits a semi-open barrier.

Two related profiles cover different visual briefs: the HFA alternative semi privacy fence uses an alternative picket arrangement, and the HFC louvered semi privacy fence uses angled louver pickets for a different rhythm across the panel face. Where a project needs a closed face instead, the HEA PVC privacy panel fence 6'x8' uses tongue-and-groove construction.

Panel and Post Specifications

The HFB section is built from pre-notched rails and pre-routed posts, so the components arrive ready for assembly rather than for on-site cutting and drilling.

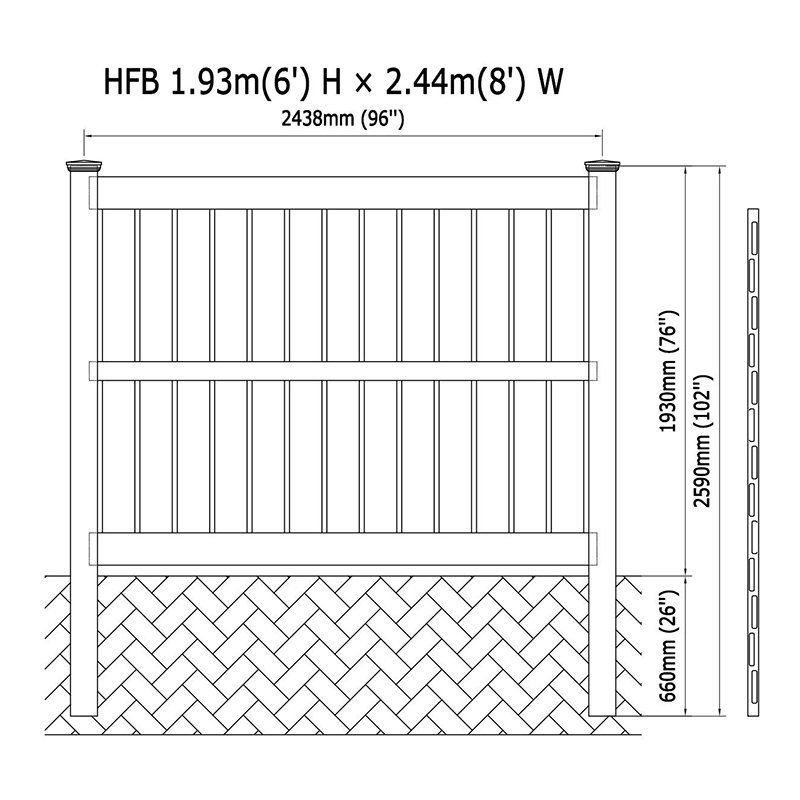

Reading the HFB Dimensions on Site

Height and privacy balance

At the standard 72" height, the panel screens seated and standing eye level while the gaps above and below the picket field keep the boundary visually lighter than a solid panel. Where a lower fence line is required by local rules or by the landscape design, we produce the same profile at reduced heights.

Picket field and spacing

Thirteen 7/8" x 6" x 63" pickets make up the standard section. The picket width and spacing determine how much of the view is interrupted, so the field is the first element to confirm when a project has a specific privacy expectation.

Freight planning

Each section occupies 0.166 CBM, which lets us calculate container loading against the total linear run before the order is fixed. Rails, pickets and posts are packed as a panel kit, with all rails and pickets included per section.

Configuration Options

• Colour: white, tan, grey and cream as standard, with the colour running through the profile rather than applied as a coating.
• Post size: 4" x 4" or 5" x 5", selected against run length, wind exposure and gate positions.
• Post routing: line, end, corner, 3-way or blank, matched to the fence layout drawing.
• Post caps: New England, flat or Gothic.
• Panel geometry: non-standard heights and widths, and 2 or 3 tongue-and-groove panel configurations.
• Gates: matching gates built from the same profile and colour.
• OEM and ODM: custom profiles, colours and packaging for distributor programmes.

Material and Climate Behaviour

The HFB panel is extruded from 100% virgin PVC with no recycled content and a lead-free formulation, supported by UV inhibitors, impact modifiers and stabilisers. Titanium dioxide is dosed at 10 parts per 100 using DuPont non-chalking TiO2, which is the main defence against the surface chalking that affects under-stabilised vinyl. Raw materials are traceable through production.

Manufacturing and Quality Control

Production runs through extrusion, cutting, drilling, notching, packaging and storage at our Huzhou plant, with the extrusion lines introduced to hold profile consistency across long runs. An independent quality-control group inspects each extruder's output every hour and carries out additional random checks, so dimensional drift is caught inside the shift rather than at dispatch.

Documentation available with orders includes SGS, ASTM, ISO 9001 and TUV Global Manufacturer Certificate evidence, alongside CE, RoHS and UL94 documentation for the relevant product lines. As a China-based PVC fence manufacturer, we also handle OEM and ODM programmes where a distributor needs its own profile, colour or packaging specification.

Installation, Interfaces and Site Preparation

HFB panels assemble in the same sequence as a wood fence, but without on-site routing. Posts arrive pre-routed for their position in the run, rails arrive pre-notched, and pickets are cut to length, so the installer sets posts, drops rails into the routed post holes, inserts pickets into the rails and fits the caps last.

• The aluminium insert in the bottom rail stiffens the lowest span, which is the point most exposed to impact and gate traffic.
• Posts are set in concrete where that is normal local practice for wood posts; footing depth follows the local frost and wind requirement.
• Gate posts and gate openings are confirmed before routing, because hinge loads change the post specification.
• Installation video guidance and technical support are provided with the order.

Information We Use to Configure Your Solution

A quotation for the HFB panel is built from the site layout rather than from a catalogue line alone. We work from the following inputs:

• Total linear run, plus the number and type of corners, ends and 3-way junctions.
• Required panel height and width, and whether the standard 72" x 96" section applies.
• Gate positions, opening widths and hinge direction.
• Colour, post size and post cap style.
• Site wind exposure, ground conditions and the local footing practice.
• Target container volume or order quantity, using 0.166 CBM per section.
• OEM requirements such as custom profiles, colour matching or private-label packaging.

Frequently Asked Questions

What is the standard HFB panel size, and can it be changed?

The standard section is 72" high and 96" wide. We produce other heights and widths on request, so a project that needs a lower boundary line or a non-standard bay can be quoted against the same profile.

What picket does the HFB panel use?

The panel uses 7/8" x 6" x 63" pickets at standard spacing, 13 pieces per section, held between pre-notched top, middle and bottom rails.

Why is there an aluminium insert in the bottom rail?

The insert reinforces the bottom rail for commercial-strength service, which matters on longer runs, on gate-adjacent bays and on fences exposed to regular contact.

Can the HFB panel be supplied with a matching gate?

Yes. Gates are built to match the panel profile and colour, and we confirm the opening width and hinge side before the post routing is fixed.

How is the panel packed and how much space does it take?

Each panel kit includes all rails and pickets for the section, and one section occupies 0.166 CBM. That figure is what we use to calculate container loading for a full order.

Is the material lead-free and UV stabilised?

The profile is extruded from 100% virgin PVC with no recycled content and a lead-free formulation, stabilised with UV inhibitors and DuPont non-chalking TiO2 dosed at 10 parts per 100.
