HSP picket top pvc semi-private fence

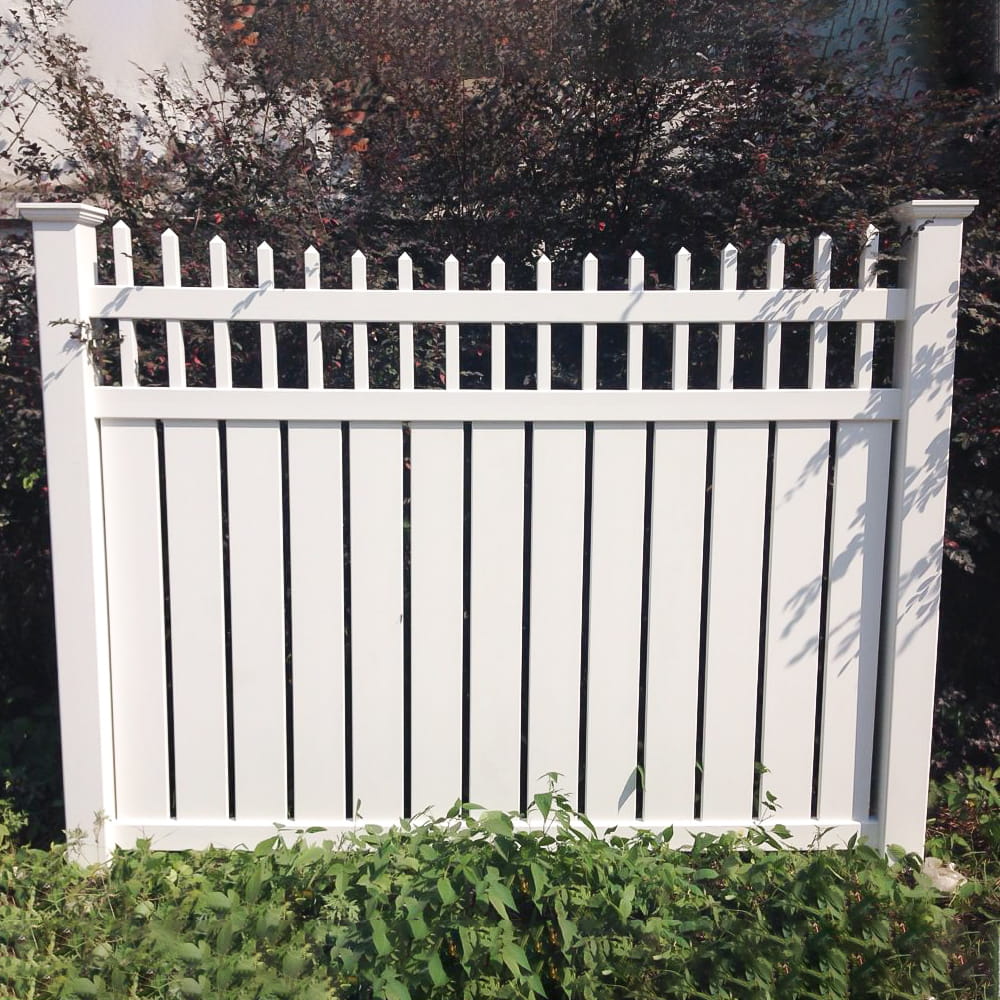

HSP Picket Top PVC Semi-Private Fence from Our Deqing Factory

As a Hsp Picket Top Pvc Semiprivate Fence manufacturer, we match product configuration to the application, operating limits, interfaces and acceptance criteria defined for each project.

Deqing Huazhijie Railing & Fencing Co., Ltd. has manufactured PVC fence profiles since 2003 at our plant in Deqing, Huzhou, near Shanghai. The HSP picket top PVC semi-private fence is extruded, cut, drilled and notched on our own lines and shipped as a complete panel kit — posts, rails, pickets, U-channels and post caps — with matching gates available. It serves residential front boundaries, garden perimeters, community edges and light commercial landscaping where the lower section screens the property and the picket top keeps the fence line open.

We work as a China-based PVC fence manufacturer for distributors, contractors and project teams, supplying the HSP as full kits or as individual components. Colour, height, post routing and cap style are fixed before production, so the delivered kit matches the site drawing rather than a generic stock panel. The complete component list and current options are set out on our HSP picket top PVC semi-private fence specification.

Where a Semi-Private Picket Top Fence Works Best

The HSP profile is a screening fence with an open top, not a solid wall. That balance decides where it belongs on a project.

• Front property lines and entry boundaries where a full panel would close off the street view.
• Garden and courtyard perimeters that need a defined edge and a consistent panel rhythm.
• Community, HOA and multi-unit boundaries where repeated sections must line up across long runs.
• Pool, patio and deck surrounds where sightlines above rail height should stay open.
• Light commercial landscaping, rental properties and show-home boundaries that need low maintenance rather than annual refinishing.

Where full screening is the requirement, our HEC PVC picket top panel fence and the HFB PVC semi-private fence panels cover the same footprint with a closed lower face.

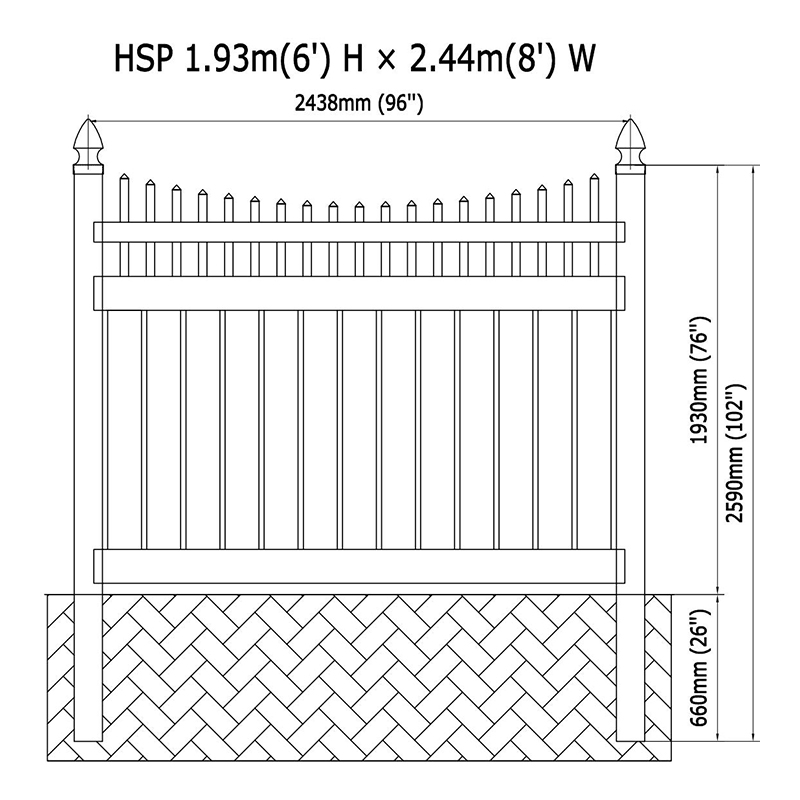

Section Anatomy and Standard Specifications

Each HSP section is a routed kit rather than a bundle of loose parts. The dimensions below describe the standard build; heights, widths and picket spacing can be adjusted for a project.

Configuration Choices Set Before Production

Because every section is routed to order, the specification is agreed before extrusion and notching begin. These are the variables that change the delivered kit.

Material, Weathering and Long-Term Maintenance

The HSP is produced from 100% virgin PVC with no recycled content and no lead. UV performance comes from titanium dioxide at 10 parts per 100, together with US or German brand pigments, and the raw materials are traceable through our records. The compound is formulated for long-term durability, flexibility and weatherability rather than for a short decorative life.

• Service temperature range of -40 to 70 degrees for installed sections.
• Designed to withstand normal wind loads; actual performance depends on fence style, post installation and rail configuration.
• Resists surface cracking, chipping, peeling and rot, and is not affected by termites.
• No painting, staining or sealing required after installation.
• Routine cleaning with a garden hose; a mild abrasive cleaner handles stubborn marks, and most paint or graffiti lifts with ordinary detergent and water.
• Covered by a 30-year limited warranty.

Installation, Interfaces and Site Coordination

The HSP installs in the same sequence as a wood fence, but with factory routing that removes most on-site cutting. Posts arrive pre-routed, rails arrive pre-notched, and the panel kit contains all rails and pickets for the section.

1. Set the posts to the line, end, corner and 3-way positions shown on the layout, using the same cementing practice normally applied to wood posts in the area.
2. Insert the bottom, middle and top rails into the routed post holes, keeping the aluminium insert in the bottom rail.
3. Slide the pickets into the notched rails and secure the picket ends with the 1 in x 1 in U-channels.
4. Fit the New England, Flat or Gothic post caps after the fence is standing.
5. Hang matching gates on the heavier gate posts and check swing clearance before final tightening.

We provide technical support and video installation guidance with the order, and the same routing logic applies to the picket profiles used across our range, including the HAE1 traditional dog ear picket.

Quality Control and Acceptance Evidence

Production runs through extrusion, cutting, drilling, notching, packaging and storage, with each stage controlled in-house. An independent quality-control group inspects every extruder production hourly and carries out additional random checks, so profile wall thickness, colour and routing are verified before a section is packed.

• Certification held includes CE, RoHS and UL94, alongside SGS, ASTM, ISO 9001:2000 and TUV Global Manufacturer Certificate documentation.
• Raw materials are traceable, including DuPont TiO2, US or German pigments and PVC resin.
• Sections are packed at 0.166 CBM each, which allows container loading to be calculated from the confirmed section count.
• Kit contents are checked against the agreed bill of components before dispatch.

Information We Use to Configure Your Solution

A quotation and production release are prepared from the project data below. The more complete the input, the faster the configuration can be confirmed.

• Total fence run length, section count, and the position of ends, corners and 3-way junctions.
• Required height and width, and whether the standard 72 in x 96 in section applies.
• Post size and the routing type required at each post position.
• Colour selection and post cap style.
• Gate positions, opening widths and swing direction.
• Site conditions: soil type, frost depth, slope along the run and wind exposure.
• Local post-setting practice, so the post length and embedment suit the installation method.
• Destination port, container type and target loading quantity.
• Any project documentation or compliance requirement to be issued with the shipment.
• Whether an OEM or ODM profile, colour or packaging specification is needed.

Frequently Asked Questions

What are the standard dimensions of the HSP picket top PVC semi-private fence?

The standard section is 72 in high and 96 in wide. Different heights and widths are available, and the picket spacing is set during routing, so a project can be matched without changing the profile design.

Is the bottom rail reinforced?

Yes. The 2 in x 6 in x 94 in bottom rail is pre-notched and carries a 1 in aluminium insert, which gives the section commercial-grade strength at the point where load and ground contact are highest.

Which colours and post caps can be supplied?

Sections are produced in White, Tan, Grey and Cream. Post caps are available in New England, Flat and Gothic styles, and the cap is selected at the same time as the colour and post routing.

Can matching gates be supplied with the fence?

Yes. Gates are made to match the HSP profile and colour, and the gate posts are specified with the heavier post option where the opening requires it.

How is the fence packed and shipped?

Each section ships as a kit containing the rails, pickets, U-channels and post caps, with posts supplied to the routing schedule. A section occupies 0.166 CBM, which allows the loading quantity to be calculated from the confirmed section count and container type.

Does the fence need painting or sealing after installation?

No. The lead-free virgin PVC formulation is maintenance-free, and normal cleaning is a rinse with a garden hose. Stubborn marks can be removed with a mild abrasive cleaner, and the product carries a 30-year limited warranty.
