HAA1 1.5"x1.5" horizontal picket fence

HAA1 1.5"x1.5" Horizontal Picket Fence from Huazhijie

Deqing Huazhijie Railing & Fencing Co., Ltd. has produced PVC fence profiles and finished fence systems from Huzhou, Zhejiang since 2003, with extrusion, cutting, drilling, notching and packing handled in our own plant near Shanghai. The 1.5"x1.5" horizontal picket fence manufacturer line is our horizontal-top picket system: 1-1/2" square pickets carried between a notched top rail and an aluminium-reinforced bottom rail, supplied as a kit of sections, posts and matching gates.

The system is specified for garden and front-yard boundaries, villa and estate perimeters, farm and country-yard enclosures, warehouse and balcony screening, and temporary or privacy lines where a painted-wood picket look is wanted without the repainting, rot and termite cycle. Every component arrives pre-routed and pre-notched, so a project is ordered as section + post + gate rather than as loose profiles to be cut and drilled on site.

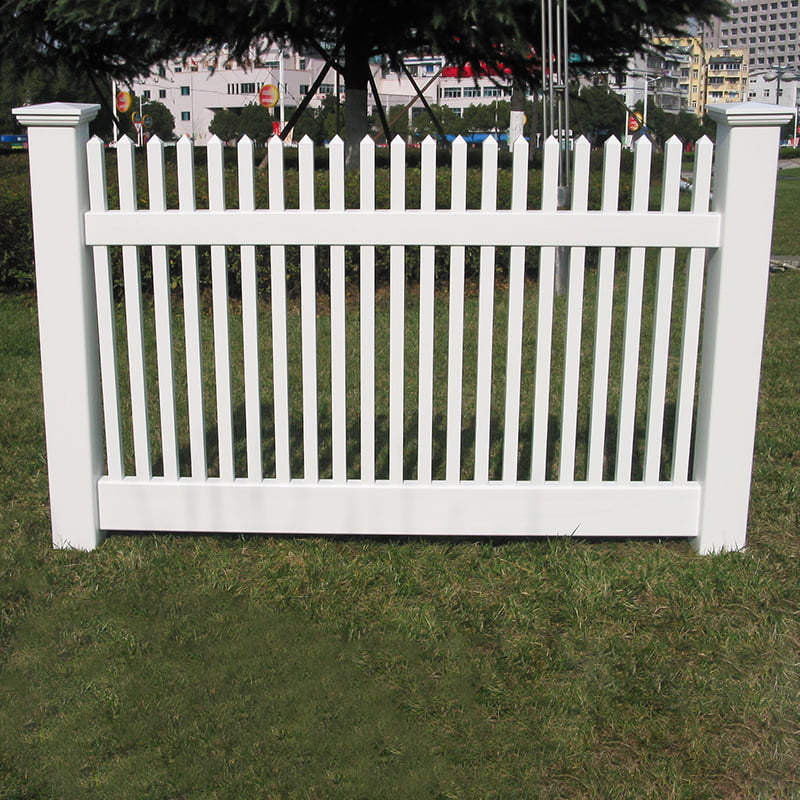

Panel Anatomy and What Each Specification Controls

Each dimension in the HAA1 build carries a function. Picket size sets the visual weight and the stiffness of the infill, rail depth sets the clear span between posts, and the bottom-rail insert governs how the section behaves under wind load and beside a gate.

Pre-notched rails and pre-routed posts are what remove field fabrication from the schedule. Rails drop into the routed post holes, pickets drop into the notched rails, and the cap closes the assembly once the post is set and plumb.

Where the HAA1 Profile Fits

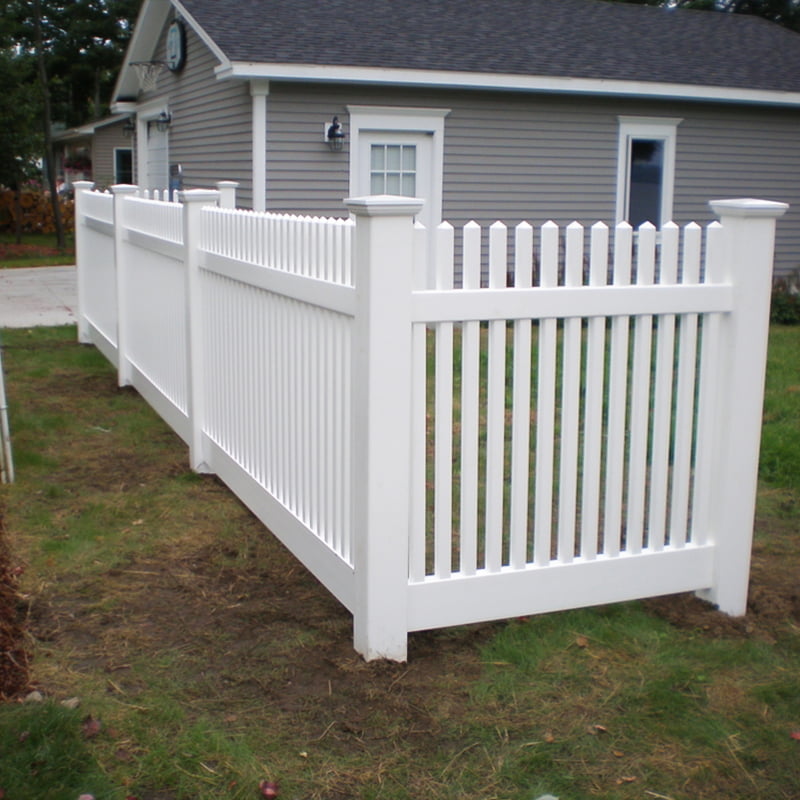

• Front yards and garden boundaries — the horizontal top-picket line reads as a traditional picket fence while keeping an open sightline to planting.
• Villa and estate perimeters — consistent section geometry across long runs, with corner and 3-way posts routed to match the layout drawing.
• Farm, ranch and country yard — no repainting, no termite treatment and no rot at ground level, which matters where maintenance access is limited.
• Warehouse, yard and light commercial screening — the aluminium insert in the bottom rail supports longer unsupported spans and heavier gate-side loading.
• Balcony and terrace — lighter section weights suit upper-level installation where structural loading is a constraint.
• Temporary and event lines — sections can be re-used and re-set because components are mechanical, not glued or welded.

Where a project needs a different silhouette rather than a different material, the PVC picket fence range covers scalloped, arched, dog-ear and special-shaped tops built on the same extrusion and routing platform.

Configuration Options

• Height: 48" standard, with other heights produced to the project requirement.
• Width: 96" standard section, with other widths available to suit post spacing and site dimensions.
• Post size: 4" x 4" or 5" x 5"; the heavier post is normally chosen for gate posts and exposed corners.
• Post routing: Line, End, Corner, 3-way or blank, matched to the layout so no drilling happens on site.
• Cap style: New England, Flat or Gothic.
• Picket spacing: standard 22-picket layout, adjustable for a denser or more open appearance.
• Colour: White, Tan, Grey or Cream, with OEM and ODM profiles and colours developed on request.

Gates, Posts and Complete Fence Assembly

A complete fence is ordered as sections plus posts plus gates. Gate leaves are built in the same picket profile and colour as the run, and the hinge and latch posts are routed at the factory so the leaf swings on the intended plane. Where a run turns a corner or tees into an existing line, the corner and 3-way posts are supplied pre-routed to the drawing rather than as blanks.

Matching PVC fence gates are produced alongside the panel order, which keeps colour batch, wall thickness and cap style consistent between the run and the opening.

Material, Fire Performance and Compliance Evidence

The HAA1 profile is extruded from 100% virgin PVC with no recycled content and no lead, and it is not coated — the colour runs through the wall rather than sitting on the surface. Titanium dioxide at 10 parts per 100 and traceable pigments from US or German suppliers are used to control chalking and colour drift under UV exposure. The formulation is rated V-0 for fire performance, and the finished system is documented for service from -40 °C to 70 °C.

Certification documentation for this product covers SGS, CE and ISO 9001, and the company holds CE, ROHS and UL 94 documentation. The customs classification for the fence is HS code 3925900000. A 30-year limited warranty applies to the finished system.

Manufacturing and Quality Control

Production runs through six controlled stages: extrusion, cutting, drilling, notching, packing and storage. An independent quality-control group inspects each extruder's output every hour and carries out additional random checks, so wall thickness, notch position and colour are verified during the run rather than only at final packing.

Raw materials are traceable back to their supplier batch, which allows a specific production lot to be reviewed if a project raises a question after delivery. Sections are packed to protect routed edges and notched faces in transit, and loading plans are calculated from the 0.08 CBM section volume so container fill is known before the order is confirmed.

Installation and Site Interfaces

• Post setting: treat PVC posts as you would wood posts — where local practice is to concrete wood posts, concrete the vinyl posts to the same depth.
• Section insertion: rails slide into the routed post holes and pickets into the notched rails; no cutting or drilling is required for a standard layout.
• Gate posts: specify the heavier post option and confirm swing direction on the layout so routing matches the hinge side.
• Thermal movement: leave the recommended clearance at rail ends so the section can expand and contract across the service temperature range.
• Handover: installation video guidance and technical support are provided with the order.

Maintenance and Serviceability

Routine care is a garden hose rinse. Stubborn marks come off with a mild abrasive cleaner of the type used on fibreglass baths, graffiti with ordinary detergent, a pressure washer or paint thinner, and residual spots with 400-grit sandpaper. Because the components are mechanical, a damaged picket, rail, post or cap can be replaced individually without dismantling the run.

Replacement pickets, rails, posts and caps are supplied in the original colour and profile, and the same extrusion platform supports the HAA2 special-shaped picket fence where a project later extends with a different top detail.

Information We Use to Configure Your Solution

A quotation is prepared from the working point rather than from a catalogue line. The following inputs let us fix the section, post and gate schedule and return a firm configuration.

• Total linear run, plus a layout sketch or drawing showing corners, ends and tees.
• Required height and section width, or the site dimensions if these are still open.
• Colour, cap style and picket spacing preference.
• Number of gates, leaf widths and swing direction.
• Exposure conditions — wind, snow and temperature range at the site.
• Ground conditions and the intended post-setting method.
• Container target or order quantity, so loading and packing are planned together.
• OEM or ODM requirements, including profile, colour, branding and documentation.

Frequently Asked Questions

What is included in one HAA1 section?

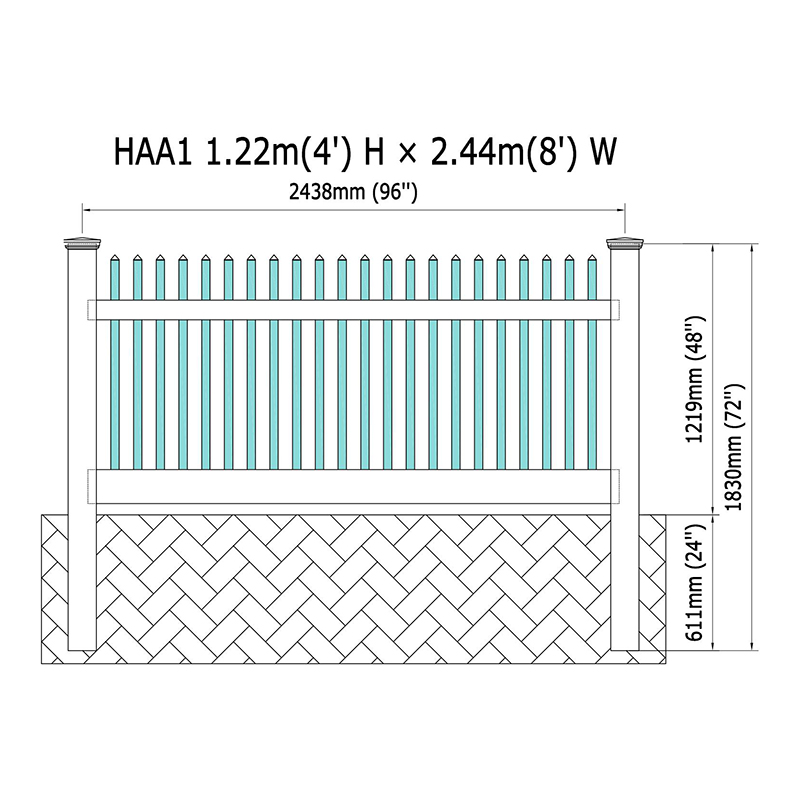

A standard section contains one pre-notched top rail at 2" x 3-1/2" x 94", one pre-notched bottom rail at 2" x 6" x 94" with an aluminium insert, and 22 pickets at 1-1/2" x 1-1/2" x 39". Posts, caps and gates are ordered separately so the post routing matches the layout.

Can the fence be produced in heights and widths other than 48" x 96"?

Yes. 48" high and 96" wide are the standard section dimensions, and other heights and widths are produced to the project requirement. Changing the height changes the picket length and rail position, so those are confirmed before extrusion.

How does the fence perform in high-UV or cold climates?

The formulation uses 10 parts per 100 titanium dioxide and traceable UV-stable pigments to limit chalking and colour change, and the system is documented for service from -40 °C to 70 °C. Wind performance depends on the fence style, post setting and rail configuration, which is why we ask for site exposure when configuring a run.

Do the posts need to be set in concrete?

We recommend treating vinyl posts the same way as wood posts. Where concreting wood fence posts is normal practice in your area, concrete the vinyl posts to the same depth and diameter.

Can gates be matched to the same picket profile?

Yes. Gates are made to match the HAA1 line in the same profile, colour and cap style, and the hinge and latch posts are routed at the factory so the leaf swings on the intended plane.

What is the production and delivery position?

Production for a 40HQ order is quoted at approximately 7–10 days. Because section volume is 0.08 CBM, we calculate the container loading plan with the quotation so quantity, packing and freight are agreed together.
