HAA2 special-shaped picket fence

Deqing Huazhijie Railing & Fencing Co.,Ltd. is a PVC fence manufacturer based in Deqing, Zhejiang, near Shanghai, producing extruded vinyl fence profiles since 2003. The HAA2 special-shaped picket fence is one of the picket systems we build to order: a routed, pre-notched panel with 1-1/2" x 1-1/2" pickets and a shaped picket top, supplied as a complete kit of sections, posts and matching gates.

We extrude, cut, drill and notch every component in our own plant, so the panel that reaches site is already prepared for assembly. What follows is the standard HAA2 specification, the options we can change, and the project information we use to prepare a configuration and quotation.

The HAA2 Panel: Profile, Dimensions and Kit Content

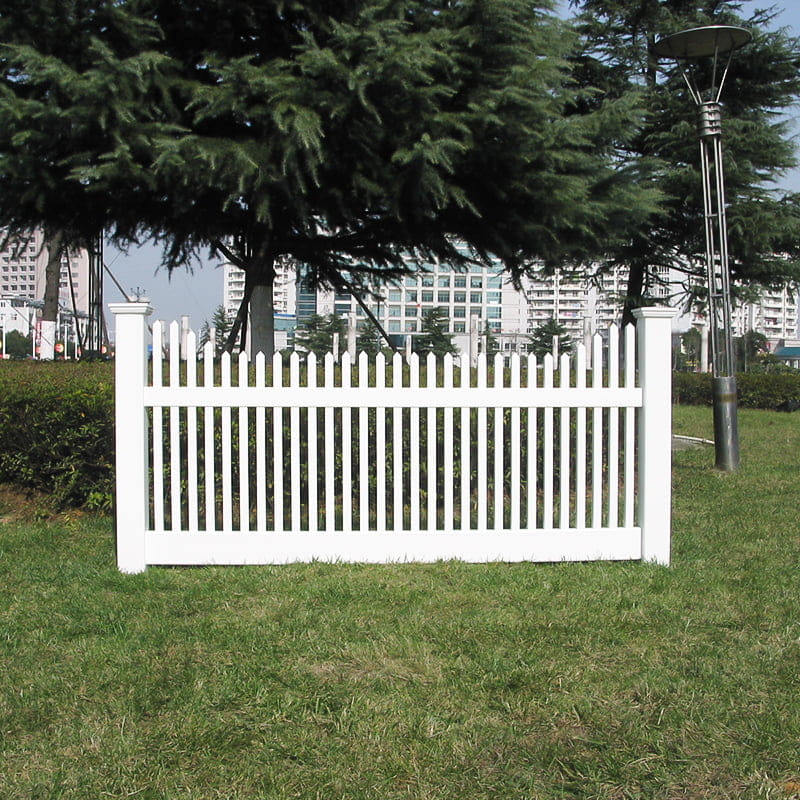

The HAA2 is a routed picket system rather than a site-cut assembly. Each standard section carries 22 pickets set into a pre-notched top rail and bottom rail, with the picket tops shaped to give the fence its distinctive silhouette. Posts arrive pre-routed for the rail positions required by the run layout.

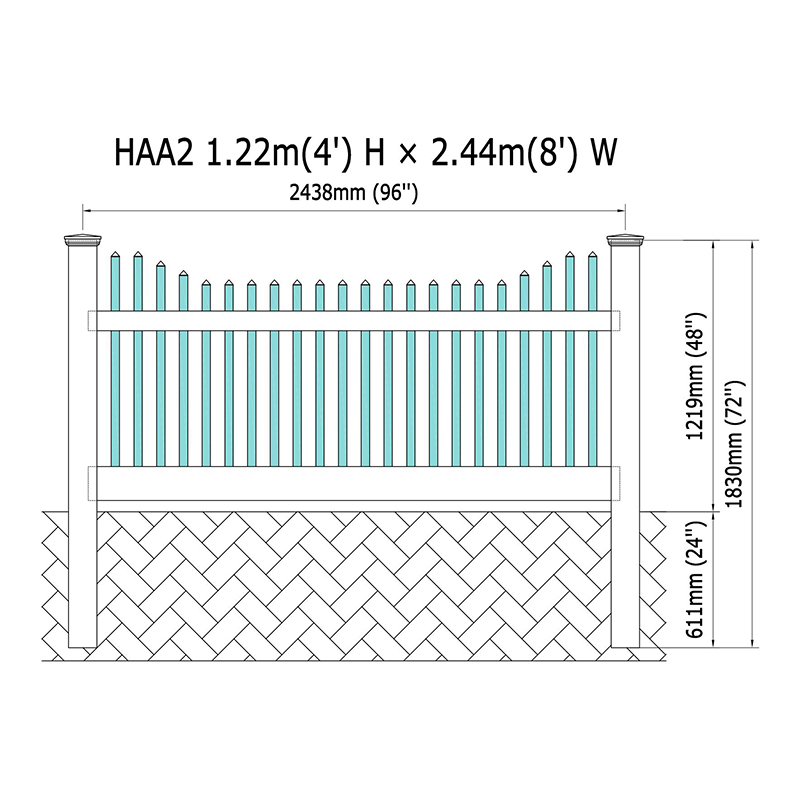

• Standard section: 48" high x 96" wide, 0.08 CBM per section
• Picket: 1-1/2" x 1-1/2" x 39", 22 pieces at standard spacing
• Top rail: 2" x 3-1/2" x 94", pre-notched, 1 piece
• Bottom rail: 2" x 6" x 94", pre-notched, 1 piece
• Aluminum insert: fitted inside the bottom rail for commercial strength
• Posts: 4" x 4" or 5" x 5", 72" standard, pre-routed as Line, End, Corner, 3-way or blank
• Post caps: New England, Flat or Gothic

The ordering logic is deliberately simple: section + post + gate = complete fence. That keeps the bill of materials readable for a distributor packing a container and for a contractor pricing a run.

What Each Specification Controls

Every dimension in the HAA2 kit does a job on site. Reading the specification as a set of functions makes it easier to decide where the standard build is sufficient and where a change is worth making.

Configuration Options We Build To

Height and width

Standard height is 48" and standard width is 96". Both are variables rather than fixed points — different heights and different widths are available, and we adjust picket length, rail length and picket count together so the panel stays proportional rather than simply stretched.

Colour

The HAA2 is produced in White, Tan, Grey and Cream. Pigments are sourced from US or German brands and are traceable, which matters when a repeat order has to match an earlier shipment.

Post routing and run layout

Posts are pre-routed as Line, End, Corner, 3-way or blank. Supplying the routing from the factory removes the most error-prone step on site and keeps rail heights consistent across a long boundary. Blank posts are available where a run terminates against a wall or a structure.

Caps and gates

New England, Flat and Gothic caps let the same panel read as traditional or contemporary. Matching gates are produced for the HAA2, so the entrance detail follows the fence line instead of breaking it. Gate hardware and post reinforcement are confirmed against the gate leaf width at quotation stage.

Where the HAA2 Fits

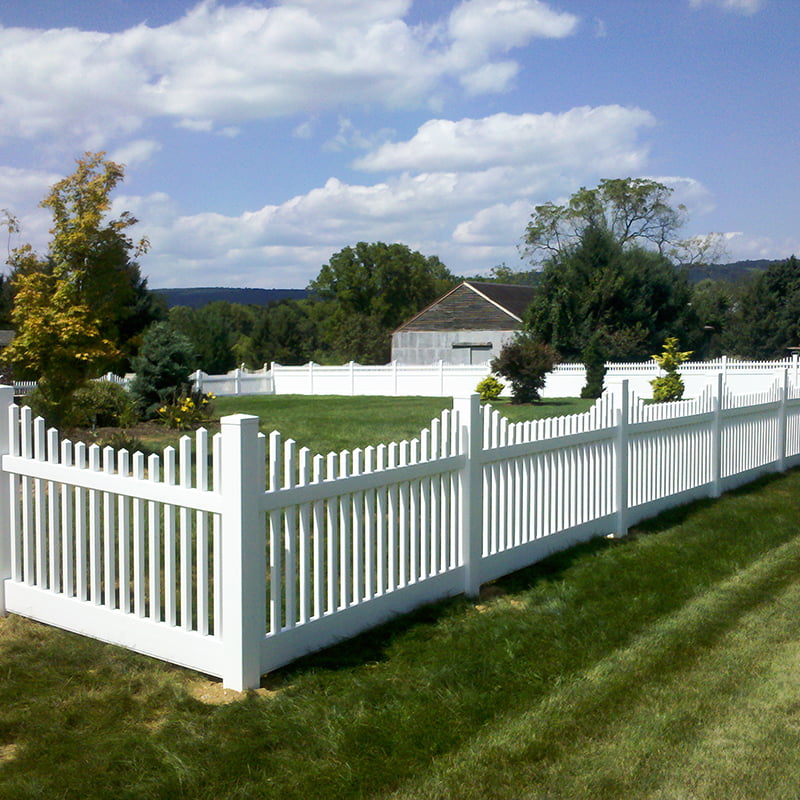

The HAA2 is a semi-open boundary. The picket pitch gives a defined edge and a clear sightline through the fence, which suits front boundaries, garden divisions and perimeter definition where full screening is not the objective. Typical installations include:

• Front yards and garden boundaries on residential plots
• Villa and estate perimeter definition where visibility is wanted
• Farm, country yard and rural property boundaries
• Warehouse and light commercial frontage
• Balcony and temporary screening where a demountable look is acceptable

Where a project needs a solid, closed elevation instead, our PVC privacy fence range covers that requirement. Where the design calls for a curved top line rather than the HAA2 profile, the HAB3 PVC arched picket fence uses the same routed construction logic.

Material, Climate and Fire Performance

The HAA2 is extruded from 100% virgin PVC with no recycled content and no lead, and it is supplied uncoated. Titanium dioxide at 10 parts per 100 is used for non-chalking performance, so the surface holds its colour under UV exposure instead of powdering.

• Water: the material does not absorb water, so it does not rot, swell or support termites
• Temperature: rated for service from -40°C to 70°C
• Flammability: V-0 rated formulation
• Impact: high impact resistance with useful elasticity, so a knocked picket flexes rather than shattering
• Maintenance: a garden hose rinse handles normal soiling; a mild abrasive cleaner suited to fibreglass handles stubborn marks

Production and Quality Control

Production runs through extrusion, cutting, drilling, notching, packaging and storage, all inside our 4,800 m² facility. Because the profile, the picket holes and the post routing are produced on the same line sequence, the fit between components is set before the goods leave the plant.

An independent quality-control group inspects each extruder's output every hour and carries out additional random checks. Raw materials — PVC resin, TiO2 and pigments — are traceable, which is what allows us to reproduce a colour and a wall thickness on a later order. The HAA2 is covered by SGS, CE and ISO 9001 certification, and the company holds CE, ROHS and UL94 certification for its PVC products.

Installation and Site Interfaces

Assembly follows the same sequence as a wood fence, with the preparation already done. Rails insert into the routed post holes, pickets drop into the notched rails, and post caps go on last. We recommend treating vinyl posts exactly as wood posts would be treated in the same location — where local practice is to set posts in concrete, vinyl posts are set in concrete.

• Confirm post spacing against the 96" section width before digging
• Use the aluminum insert in the bottom rail on long spans and commercial runs
• Reinforce and brace gate posts according to the gate leaf width
• Allow for thermal movement at rail ends rather than forcing components tight
• Keep the routed faces clean and free of concrete splash during post setting

We provide technical support and video installation guidance with the order, so the crew assembling the first panel has a reference for the sequence and the clearances.

Information We Use to Configure Your Solution

A quotation for the HAA2 is built from the run, not from a catalogue number alone. The following inputs let us return a complete bill of materials and a loading estimate in one pass:

• Total linear run, number of corners, and any terminations against walls or structures
• Required height and section width, if these differ from 48" x 96"
• Colour selection and whether it must match an existing shipment
• Post size, post routing types and post cap style
• Gate quantity, leaf width, hinge side and hardware preference
• Wind exposure, ground conditions and whether the run is residential or commercial
• Order quantity, destination port and any OEM or ODM branding requirement

Send these details through and we will confirm the panel configuration, the post schedule and the gate schedule as a single package. Custom profiles and customer-specific sizes are part of our normal work, and we develop new fence profiles and styles against a customer's drawing or sample.

Delivery, Packaging and Handoff

Each section occupies 0.08 CBM, which makes container loading straightforward to plan once the section count is fixed. A 40HQ order is typically delivered in about 7–10 days. The HS code for the product is 3925900000.

Components are packed by type so that posts, rails, pickets, caps and gates can be issued to the installation crew in the order they are needed. The HAA2 carries a 30-year limited warranty, and we supply the technical documentation and installation guidance that goes with it. As a HAA2 special-shaped picket fence manufacturer, we handle the full scope from profile extrusion to the matched PVC fence gate that closes the run.

Frequently Asked Questions

What is the standard HAA2 section size?

48" high x 96" wide, with 22 pickets at 1-1/2" x 1-1/2" x 39", one 2" x 3-1/2" pre-notched top rail, one 2" x 6" pre-notched bottom rail and an aluminum insert in the bottom rail. Each section measures 0.08 CBM.

Can the HAA2 be produced in other heights and widths?

Yes. Different heights and different widths are available, and we adjust picket length, rail length and picket count together so the panel proportions stay correct. Customer-made sizes are part of our standard offering.

Which colours and post caps are available?

White, Tan, Grey and Cream, with New England, Flat or Gothic post caps. Posts are 4" x 4" or 5" x 5" at 72" standard, pre-routed as Line, End, Corner, 3-way or blank.

Do the posts need to be set in concrete?

Treat vinyl posts the same way wood posts would be treated in the same ground conditions. Where local practice is to cement wood fence posts, cement the vinyl posts as well. Gate posts should be reinforced according to the gate leaf width.

Are matching gates available?

Yes. Gates are produced to match the HAA2 fence line, and we confirm leaf width, hinge side and hardware against the post schedule at quotation stage.

What certification and warranty apply?

The HAA2 is covered by SGS, CE and ISO 9001 certification, with CE, ROHS and UL94 certification held for the PVC product range. The formulation is V-0 rated for flammability and the fence carries a 30-year limited warranty.
