HAB3 pvc arched picket fence

Deqing Huazhijie Railing & Fencing Co., Ltd. has manufactured PVC fence systems in Huzhou, Zhejiang, near Shanghai, since 2003. The PVC arched picket fence manufacturer line is our arched-top picket panel: a pre-notched rail-and-picket kit extruded from 100% virgin PVC and supplied as sections, posts and gates that assemble into a complete run. It is specified for front yards, villa boundaries, farm and country-yard perimeters, garden edges and light commercial frontage where a traditional picket silhouette is wanted without the rot, repainting and termite exposure of timber.

Arched Picket Profile: Where It Fits

The arched top defines the HAB3. Pickets rise to a gentle curve across the 96" section width, which reads as a classic residential picket line while keeping the panel open enough for air movement and sightlines. The arch is formed by picket length rather than a separate decorative insert, so the panel keeps one uniform material family across every component and no dissimilar part has to be replaced separately.

Placements we build HAB3 runs for:

• Front yard and driveway edging where a low-to-mid height boundary is required
• Villa and estate perimeters needing a consistent street-facing elevation
• Farm, ranch and country-yard boundaries where impact resistance matters more than privacy
• Garden and park borders, balcony and terrace screening
• Light commercial frontage and warehouse yard demarcation

Where full visual screening is the requirement, our PVC picket fence and privacy panel builds cover solid and lattice-top configurations in the same material system. HAB3 is the open picket option.

Standard Section Build and Component Specifications

Every HAB3 section ships as a pre-notched kit. The build below is the standard reference; heights, widths and picket counts are adjusted per project.

Delivery for a full 40HQ container is approximately 7–10 days from order confirmation. HS code for customs classification is 3925900000.

Reading the Specification: Height, Width, Picket Spacing and Posts

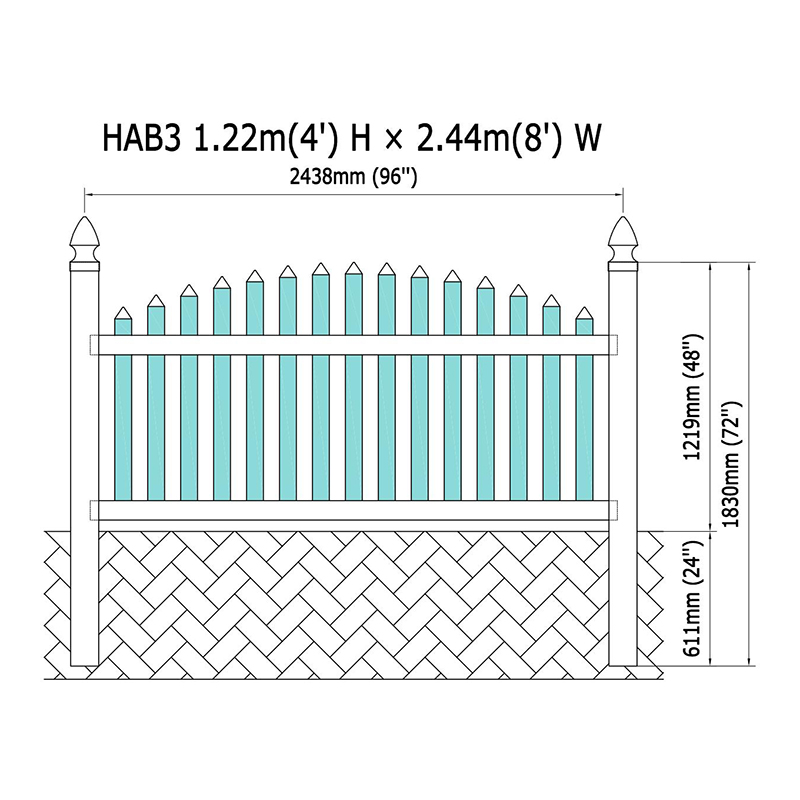

Standard section height is 48" and standard width is 96". Both are nominal references, not limits — we cut to the height and width your layout requires, and picket spacing is fixed at the time of routing so the arch geometry stays consistent from the first section to the last.

Posts and routing

Posts are supplied at 4" x 4" or 5" x 5" and 72" length as standard, pre-routed to the position each one occupies in the run: line, end, corner, three-way or blank. Routing in our factory removes the on-site hole-cutting step that most often introduces alignment error, and it keeps rail spacing identical from post to post.

Rails and the aluminum insert

Top and bottom rails are 2" x 3-1/2" x 94" and pre-notched to accept the pickets. The bottom rail carries an aluminum insert for commercial strength — this is the component that resists rail sag over long spans and is why HAB3 holds up in farm and yard applications where panels take occasional livestock or equipment contact.

Material, Formulation and Climate Boundaries

HAB3 is extruded from 100% virgin PVC — rigid polyvinyl chloride resin compounded with UV inhibitors, impact modifiers and stabilizers — and is not a coated substrate. There is no recycled content and no lead in the formulation. We use US DuPont TiO2 at 10 parts per 100 and US or German brand pigments, all traceable back to batch.

The formulation sets the operating boundaries:

• Temperature range: −40°C to 70°C
• Fire performance: V-0 rated
• Water: does not absorb water, so no rot or decay
• Maintenance: no painting, staining or sealing
• Chalking: TiO2 loading is specified to resist surface chalking

Colors are White, Tan, Grey and Cream. Pigment is compounded through the profile rather than applied to the surface, so the finish does not depend on a coating that can scratch through to a different color underneath.

Configuration Options and Matching Gates

HAB3 is ordered as Section + Post + Gate = Complete Fence, which lets a full run be specified without loose component counting.

• Height: 48" standard; other heights available
• Width: 96" standard; other widths available
• Post: 4" x 4" or 5" x 5", routed line / end / corner / 3-way / blank
• Post cap: New England, flat or gothic
• Color: White, Tan, Grey, Cream
• Gate: matching gate built to the same profile and color
• Bottom rail: aluminum insert for commercial strength

Gates are made to match the fence, so a driveway or side-access opening does not break the elevation. We also produce PVC fence profiles and accessories in the same system, which matters when a run needs non-standard post spacing or a transition to an existing fence line. Matching PVC fence gates are available for every HAB3 configuration.

Production, Quality Control and Acceptance Evidence

Production runs through extrusion, cutting, drilling, notching, packaging and storage. An independent quality-control group inspects each extruder's production every hour and carries out random checks in addition, so a deviation is caught at the line rather than at final packing.

Certification and test documentation supplied with HAB3 orders covers SGS, CE and ISO 9001. The material is lead-free and V-0 rated for fire performance, and we hold CE, ROHS and UL94 certificates at company level. The product carries a 30-year limited warranty. We welcome OEM and ODM orders and develop new fence profiles and styles against a customer drawing or sample.

Installation Sequence and Site Interfaces

HAB3 installs much like a wood picket fence, with the routing already completed. Rails insert into the routed post holes, pickets insert into the notched rails, and post caps go on after the fence is set. The heavier wall post-and-rail configuration and the notched rails give greater pullout resistance and stronger fastening than an assembly drilled on site.

Post setting is the one interface that depends on your site. Treat PVC posts the same as wood posts: where local practice is to cement wood fence posts, cement the PVC posts to the same depth and in the same manner. Frost depth, soil type and wind exposure determine embedment, and wind performance depends on the style, the post installation and the number of horizontal rails. We supply video installation guidance and technical support for the assembly sequence.

Information We Use to Configure Your Solution

A HAB3 quotation is built from the run, not from a catalog number. The inputs below are what we work from to fix routing, picket count, post positions and packing.

We return a professional and reasonable quotation as quickly as possible, and for new products we work through the drawing or sample with you before routing and tooling are fixed.

Frequently Asked Questions

What is the standard HAB3 section size?

48" high x 96" wide, with 15 pickets at 7/8" x 3" x 39" at standard spacing. Other heights and widths are available, and picket spacing is set when the rails are routed.

Does the HAB3 need painting or sealing?

No. It is 100% virgin PVC and not coated, and it does not absorb water, so there is no rot or decay cycle to interrupt. A garden hose rinse handles normal dirt; a cleaner containing a mild abrasive suitable for fiberglass handles more stubborn marks.

Can the fence follow a slope or a step in the ground?

Post routing is fixed at our factory, so grade changes and steps need to be identified before routing is set. Send the run layout with levels marked and we will route the posts and cut sections to match.

Are gates available to match the HAB3 fence?

Yes. Gates are made to match the fence profile and color, so a driveway or side-access opening keeps the same elevation as the run. Give us the opening width and swing direction with the order.

What certifications and warranty come with the fence?

Orders are supplied with SGS, CE and ISO 9001 documentation. The material is lead-free and V-0 rated for fire performance, and the product carries a 30-year limited warranty.

How long does delivery take, and can you produce custom sizes?

Delivery is approximately 7–10 days for a 40HQ container from order confirmation. We welcome OEM and ODM orders and develop new profiles and styles against a customer drawing or sample, including custom heights, widths and colors.
