HAB2 7/8"x3" outdoor picket fence

Transform your outdoor space with our 7/8"x3" Outdoor Picket Fence, specifically designed for farm use and outdoor applications. Crafted from 100% Virgin PVC, this durable and high-impact resistant fence offers a range of advantages over traditional wooden fencing.

Material Quality: Made from 100% virgin PVC, our fence is not coated, ensuring long-lasting performance without the risk of rot or decay.

Easy Installation: Designed for simple Do-It-Yourself installation, the panel kit includes all necessary rails and pickets, making setup a breeze.

Durability: With excellent elasticity and impact resistance, this vinyl fence is built to withstand the elements while requiring minimal maintenance.

Fire Resistance: Rated V-0 for fireproofing, providing an extra layer of safety for your property.

Certification: Our fence meets high industry standards with certifications from SGS, CE, and ISO9001, ensuring quality you can trust.

Long Warranty: Enjoy peace of mind with a 30-year warranty, reflecting our commitment to durability and customer satisfaction.

Quick Delivery: Orders are shipped within 7-10 days for a 40HQ container, ensuring your fencing needs are met promptly.

Customization Options:Choose from a variety of picket designs to perfectly match your aesthetic. Ordering is straightforward—simply combine the sections, posts, and gates to create your complete fence solution.

Product Description

Usage: Garden Fence,Home,Farm,Vilia, Warehouse,Country Yard,Balcony,Temporary,Privacy Fence.

Frame Material: 100% Virgin PVC/ Plastic,Not Coated

Characteristic: Easy to install,More elastic and high impact resistance,Vinyl Is Durable and Low Maintenance.

HS CODE:3925900000

Fire Proof: V-0

Certificate: SGS,CE,ISO9001

Warranty: 30 Years

Delivary Time: About 7-10 days as a 40HQ

How to make a order: Its simple, just add Section + Post + Gate = Complete Fence

Fence Top Style Pvc scalloped picket fence
Color White, Tan, Grey, Cream
Height Standard height 48", Different heights available
Width Standard width 96", Different widths available
Post 4"x 4" or 5"x 5" or optional x 72'', pre routed as Line,End,Corner,3-ways or blank.
Post Cap New England Cap,Flat Cap,Gothic Cap
Bottom Rail 2"x 3-1/2"x 94''x1pcs, pre notched
Top Rail 2"x 3-1/2"x 94''x1pcs, pre notched
Aluminum Insert Aluminum insert in bottom rail for commercial strength
Picket 7/8"x 3"x 39'' x 15pcs (standard spacing)
Volume of Section 0.08CBM, loading QTTY inquiry
Matching Gate Available

Contact Us for More Details

Don't hesitate to contact when you need us!

SUBMIT

About
Deqing Huazhijie Railing & Fencing Co.,Ltd.
Deqing Huazhijie Railing & Fencing Co.,Ltd.
Deqing Huazhijie Railing & Fencing Co.,Ltd. is China HAB2 7/8"x3" outdoor picket fence suppliers and HAB2 7/8"x3" outdoor picket fence company, which is located near Shanghai, established in 2003, is a professional manufacturer engaged in the research, development, production, sale, and service of PVC fence and PVC flooring. We are located in Huzhou, which has convenient transportation access. Dedicated to strict quality control and thoughtful customer service, our experienced staff members are always available to discuss your requirements and ensure full customer satisfaction.
If you select a current product from our catalog or want help with your application, you can go ahead and discuss your sourcing requirements with our customer service center.
Certificate Of Honor
  • Deqing Huazhijie Railing & Fencing Co.,Ltd.
  • Deqing Huazhijie Railing & Fencing Co.,Ltd.
  • Deqing Huazhijie Railing & Fencing Co.,Ltd.
  • Deqing Huazhijie Railing & Fencing Co.,Ltd.
  • Deqing Huazhijie Railing & Fencing Co.,Ltd.
News
PVC Picket Fence Industry knowledge

HAB2 7/8"x3" Outdoor Picket Fence for Farm, Garden and Perimeter Work

Deqing Huazhijie Railing & Fencing Co.,Ltd. has extruded PVC fence profiles in Huzhou, Zhejiang since 2003, and the HAB2 7/8"x3" outdoor picket fence is one of the picket systems we produce, notch and pack in-house. Each section is built around a 7/8" x 3" picket carried on 2" x 3-1/2" rails, supplied as a kit of pickets, pre-notched rails and pre-routed posts so a complete run assembles on site without field routing or welding.

The format fits farm boundaries, front yards, villa perimeters, country yards, warehouse frontage and other outdoor lines that call for a traditional picket profile in a material that will not rot, splinter or need repainting. As a 7/8"x3" outdoor picket fence manufacturer, we build each section to the height, width, colour and post layout the project requires, and we quote from the working layout rather than from a single stock size.

Ordering logic: Section + Post + Gate = Complete Fence. Give us the run length and the post layout, and we return a section count, a post schedule by type, a gate list and a container loading plan.

What the 7/8" x 3" Picket Format Delivers

A 7/8" picket face is narrow enough to read as a classic picket line and thick enough to hold its shape under impact. At 3" wide, each picket presents a solid face with a defined shadow line between pickets, which is what gives the fence depth when it is viewed from the street.

  • Picket: 7/8" x 3" x 39", 15 pieces per standard 96" section at standard spacing.
  • Top rail: 2" x 3-1/2" x 94", pre-notched, one piece per section.
  • Bottom rail: 2" x 3-1/2" x 94", pre-notched, one piece per section, with an aluminium insert for commercial strength.
  • Post: 4" x 4" or 5" x 5" x 72", pre-routed as Line, End, Corner, 3-way or blank.
  • Section volume: 0.08 CBM, which drives the packing and loading calculation on bulk orders.

A 39" picket on a 48" section leaves the picket tips standing above the top rail, the proportion that separates a picket fence from a flat panel fence. Picket count per section follows the section width and the spacing you specify, so a wider module or a tighter spacing changes both the picket quantity and the section weight.

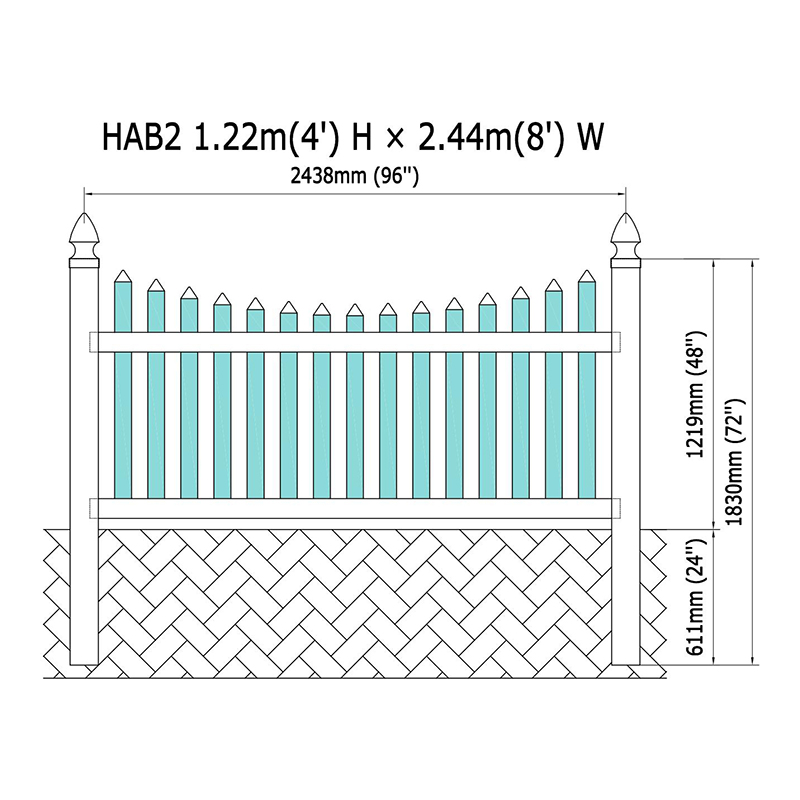

Standard Section Specification

Component Standard specification Notes
Picket 7/8" x 3" x 39", 15 pcs per section Standard spacing; count follows width and spacing
Top rail 2" x 3-1/2" x 94", pre-notched 1 pc per section
Bottom rail 2" x 3-1/2" x 94", pre-notched 1 pc per section, aluminium insert fitted
Post 4" x 4" or 5" x 5" x 72" Pre-routed Line, End, Corner, 3-way or blank
Post cap New England, Flat or Gothic Matched to post size
Section height 48" standard Other heights available
Section width 96" standard Other widths available
Colour White, Tan, Grey, Cream Colour runs through the profile
Material 100% virgin PVC, uncoated Lead-free formulation
Fire performance V-0 rated UL94 referenced in our certificate set
Section volume 0.08 CBM Used for container loading estimates
HS code 3925900000 Declared on export documentation
Warranty 30-year limited warranty Against rot, decay and structural failure

Configuration Options and Post Layout

Colour, height, width, post size and top profile are all fixed at order stage. The standard build is a 48" high, 96" wide section in white, tan, grey or cream, and the same section can be produced at other heights and widths where the site or the local market expects a different module. Post routing is the part of the order that most often decides whether installation runs smoothly, so we confirm the post schedule against the fence line drawing.

Post type Where it is used Routing supplied
Line Mid-run joint between two sections Routed for the rails it receives
End Run termination at a wall, gate or open end Single-side routing
Corner 90° direction change in the fence line Two routing faces
3-way T junction where a side run meets a main run Three routing faces
Blank Gate posts and non-standard junctions Unrouted, drilled on site

Post caps are supplied as New England, Flat or Gothic to match the post size. The top profile shown for this model is a scalloped picket line; the wider PVC picket fence range also covers straight spade and arched tops, so a single property can carry a consistent picket language across front, side and rear runs. Matching gates are produced to the same section height and colour, and gate hardware is quoted with the gate schedule.

Material, Fire Performance and Compliance Evidence

The profile is extruded from 100% virgin vinyl with no recycled content and no lead, and it is not coated, so the colour is carried through the material rather than sitting on a surface film that can chip away from a picket edge.

  • UV stability: 10 parts per 100 DuPont titanium dioxide for non-chalking weathering performance.
  • Pigments and resin: US or German brand pigments with traceable PVC resin, so a repeat order matches the original colour.
  • Fire performance: V-0 rated formulation, with UL94 referenced in our certificate set.
  • Certification: SGS, CE and ISO 9001 quality system evidence; ROHS compliance on the material declaration.
  • Temperature range: stated working range from -40°C to +70°C.
  • Warranty: 30-year limited warranty covering rot, decay and structural failure.

Installation, Posts and Site Interfaces

Because posts arrive pre-routed and rails arrive pre-notched, the on-site work is setting posts, seating rails and fixing pickets. Rails are supplied at 94" to seat into the pre-routed posts on a 96" section module, so the run does not depend on field notching accuracy.

  • Post setting: posts are set in concrete and checked against a string line and level before rails are loaded.
  • Bottom rail strength: the aluminium insert in the bottom rail carries long runs and gate-adjacent sections where sag would otherwise show.
  • Sloping ground: sections are stepped between posts so the picket line stays level rather than following the grade.
  • Gates: matching PVC fence gates are produced to the same height and colour, with hinge and latch positions confirmed against the blank gate posts.
  • Tools required: drill, level, string line, concrete and a saw for trimming post tops.
  • Installation support: video installation guidance is provided with the order for crews assembling the system for the first time.

Manufacturing Process and Quality Control

Production runs through six controlled stages: extrusion, cutting, drilling, notching, packaging and storage. Because the picket profile, the rail notches and the post routing are all produced in the same plant, the picket-to-rail fit does not depend on a third party holding the same tolerance.

  • An independent quality-control group inspects each extruder every hour and carries out additional random checks.
  • Raw materials are traceable, which supports colour matching and material declarations on repeat orders.
  • More than 500 PVC profiles are in production, and OEM and ODM requests are handled alongside catalogue items.
  • Custom sizes and new picket styles can be developed from a customer drawing or sample.
  • Orders ship in about 7-10 days for a 40HQ container, with products exported to Canada, the USA, Europe, Australia, New Zealand and other markets.

Information We Use to Configure Your Solution

A quotation for this fence is prepared from the fence line, not from a catalogue number alone. The following inputs let us return a complete section, post and gate schedule with a loading plan.

  • Total run length and the section module you want to work to.
  • Section height, width, colour and picket spacing.
  • Post size and the count of Line, End, Corner, 3-way and blank posts.
  • Gate quantity, opening width and swing direction.
  • Ground conditions, slope and the fence line drawing or site sketch.
  • Wind exposure and any local code requirement the fence has to satisfy.
  • Destination port, packaging preference, labelling and pallet or loose-load requirements.
  • OEM or ODM requirements, including profile changes, colour matching and private labelling.

Ordering, Packing and Delivery

Ordering follows the same logic as the fence itself: Section + Post + Gate = Complete Fence. Send the run length and post layout and we return a section count, a post schedule by type, a gate list and a container loading plan built on the 0.08 CBM section volume. Mixed colour and mixed height orders are packed so that each delivery can be identified on site without opening every bundle.

Frequently Asked Questions

What is included in one HAB2 section?

One standard section contains 15 pickets at 7/8" x 3" x 39", one pre-notched top rail and one pre-notched bottom rail at 2" x 3-1/2" x 94", with an aluminium insert fitted in the bottom rail. Posts, post caps and gates are ordered separately so the post schedule matches the actual fence line.

Can the fence be produced at heights and widths other than 48" x 96"?

Yes. The standard module is 48" high and 96" wide, and other heights and widths are available. Changing the height changes the picket length and rail position, and changing the width changes the picket count per section, so both are confirmed at order stage.

Is the fence lead-free and UV stable?

The profile is extruded from 100% virgin vinyl with no lead and no recycled content, and it is not coated. UV stability comes from 10 parts per 100 DuPont titanium dioxide, with US or German brand pigments used for colour.

Which colours and post caps are available?

White, Tan, Grey and Cream are the standard colours. Post caps are supplied as New England, Flat or Gothic and are matched to the 4" x 4" or 5" x 5" post size.

How long does production and delivery take?

Orders ship in about 7-10 days for a 40HQ container. The HS code for the fence is 3925900000, and we handle OEM and ODM orders alongside catalogue configurations.

Does the fence need painting or ongoing maintenance?

No. The material does not rot, splinter or require repainting, and normal cleaning with water is enough to keep the picket face and rails looking as supplied. The system carries a 30-year limited warranty against rot, decay and structural failure.

Related Products and Categories

Our portfolio also includes HAA1 1.5"x1.5" horizontal picket fence for applications with different operating ranges, interfaces or integration requirements.
