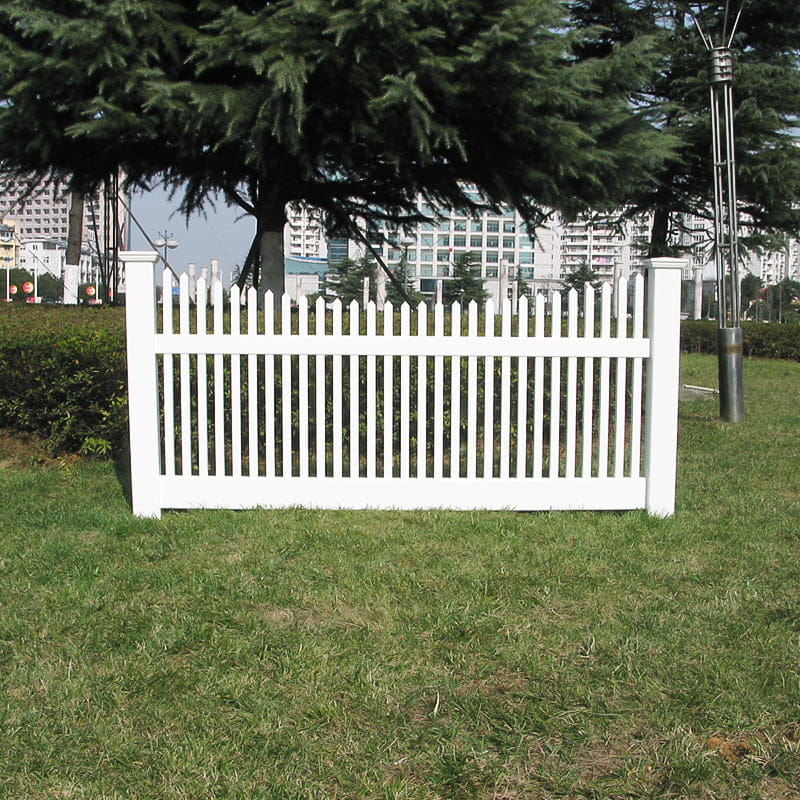

HAA3 4ft scalloped picket fence

Deqing Huazhijie Railing & Fencing Co., Ltd. has produced PVC fencing since 2003 at our extrusion plant in Huzhou, near Shanghai. We are a 4ft scalloped picket fence manufacturer supplying distributors, contractors and project owners with a 48 in. high scalloped-top picket system built from 100% virgin PVC. Sections arrive pre-notched and pre-routed with matching gates, so a complete boundary is assembled from three order lines: section, post and gate.

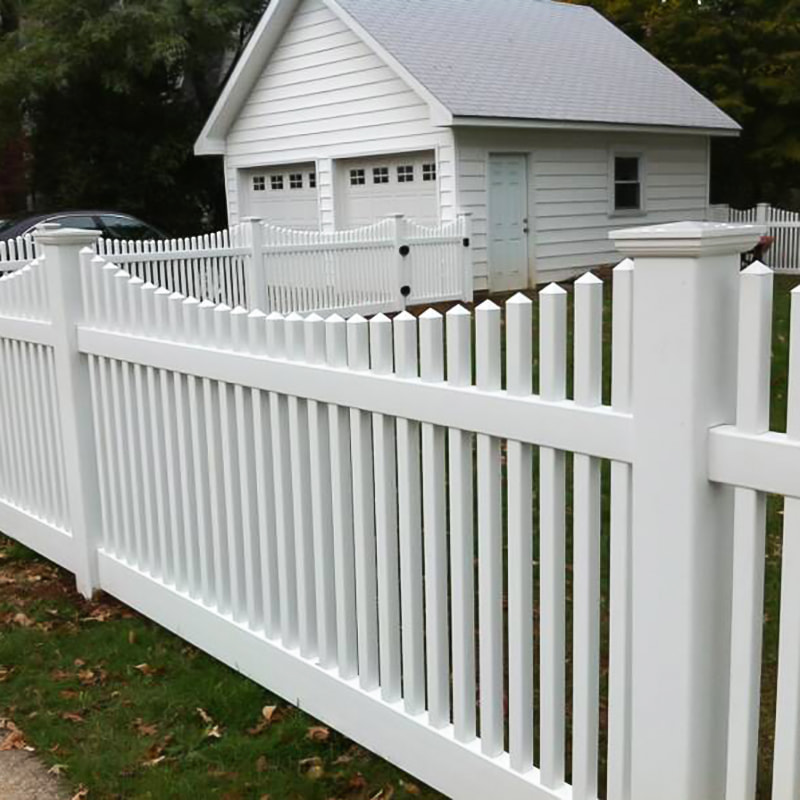

The Scalloped Top Profile and Its Application Fit

The scalloped top is formed by pickets that rise and fall in a smooth arc across the section, tallest at the centre. It keeps the open, see-through character of a traditional picket fence, which suits front boundaries and garden edges where a solid panel would close off the view.

At 48 in. high the HAA3 works as a demarcation and decorative boundary rather than a security barrier. It is specified across our PVC picket fence range for:

• Front-yard and garden boundaries in residential estates
• Villa, country-yard and farm perimeters that need a low, open line
• Warehouse and yard zoning where access stays unrestricted
• Balcony, courtyard and temporary enclosure work
• Runs that must visually match an adjacent picket or gate installation

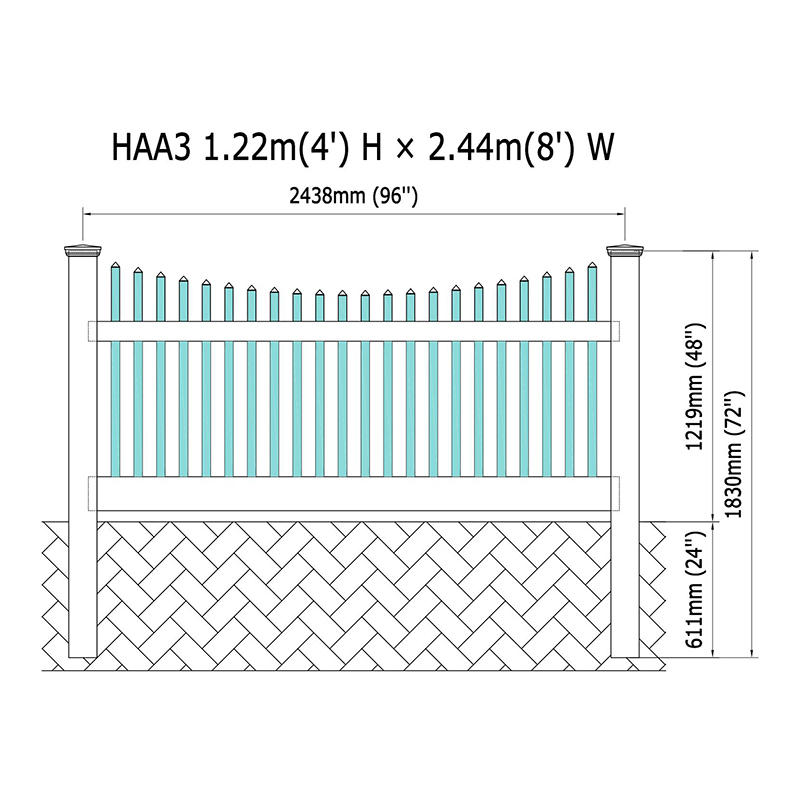

Section Anatomy and What Each Specification Controls

Every HAA3 section is supplied as a kit. The standard build below is what we quote unless a project calls for a variation.

Picket spacing drives the notch positions in both rails, so spacing changes are made at the tooling and routing stage rather than on site.

Material Formulation, Fire Behaviour and Climate Range

Huazhijie profiles are extruded from rigid PVC resin compounded with UV inhibitors, impact modifiers and stabilisers. The formulation is 100% virgin vinyl with no recycled content and no lead, and carries DuPont non-chalking TiO2 at 10 parts per 100 to hold colour under UV exposure.

• Fire behaviour: V-0 rated profile
• Service temperature: -40 °C to 70 °C
• Moisture: does not absorb water, so no rot, swelling or termite damage
• Wind: designed for normal wind loads; actual performance depends on fence style, post setting and rail configuration
• Surface: no chalking, cracking, chipping or peeling, and no repainting cycle

Configuration Options

Colour, height, width, post size and cap style are all selected at order stage, and the picket layout can be adjusted for a specific elevation.

• Colours: White, Tan, Grey, Cream
• Height: 48 in. standard; other heights available
• Width: 96 in. standard; other widths available
• Posts: 4 in. x 4 in. or 5 in. x 5 in., 72 in. long, pre-routed as line, end, corner, 3-way or blank
• Post caps: New England, flat or gothic
• Rails: top rail 2 in. x 3-1/2 in. x 94 in.; bottom rail 2 in. x 6 in. x 94 in. with aluminium insert
• Pickets: 1-1/2 in. x 1-1/2 in. x 39 in., 22 per section at standard spacing
• Gates: single and double gates built to match the run — see matching PVC fence gates

Installation, Post Setting and Site Interfaces

The system installs like a timber fence, but arrives pre-cut and pre-routed. Posts are routed at the factory for their position in the run, rails are notched to the picket spacing, pickets drop into the routed rail holes, and caps are fitted last.

Set posts the way timber posts are set locally — where wood posts are normally cemented, cement the vinyl posts to the same depth and diameter. The aluminium insert in the bottom rail is specified for commercial runs, higher wind exposure and gate-adjacent sections.

• Confirm post spacing and gate post positions before routing
• Decide stepped or racked sections for sloped ground
• Confirm in-ground or surface-mounted post fixing
• Leave the specified expansion clearance at rail ends
• Fix caps after the section is assembled

Quality Control and Acceptance Evidence

Production runs through extrusion, cutting, hole drilling, notching, packing and storage. An independent quality-control group inspects each extruder's output hourly and carries out random checks, and the PVC resin, TiO2 and pigments we use are traceable to their source.

Product documentation for the HAA3 lists SGS, CE and ISO 9001; company certificates include CE, RoHS and UL 94. The fence HS code is 3925900000, and the system carries a 30-year limited warranty.

Information We Use to Configure Your Solution

Send the project data below and we return a configured quotation with section, post and gate counts, container loading and a production schedule.

• Total linear run, split into straight, corner and end conditions
• Required height and width if not 48 in. x 96 in.
• Colour and post cap style
• Post size and the routing mix (line, end, corner, 3-way, blank)
• Gate quantity, opening width, single or double, hinge side
• Terrain: level, stepped or sloped, and whether sections rack
• Fixing method: in-ground concrete set or surface mount
• Wind exposure and any local code requirement
• Destination port and container or LCL target
• OEM/ODM requirements: private label, custom colour or a new profile

Ordering, Packaging and Delivery Scope

Ordering follows one build rule: section + post + gate = complete fence. Each section occupies 0.08 CBM, which we use to calculate 40HQ loading, and standard production for a 40HQ order runs about 7–10 days.

Sections ship as flat kits — rails, pickets and posts bundled separately for site assembly, with caps and hardware packed with the posts. We also extrude PVC fence profiles and accessories for fabricators who assemble locally, and we take on OEM and ODM work, developing new profiles and styles from customer drawings or samples.

Frequently Asked Questions

What is included in one HAA3 4ft section?

One standard section contains 22 pickets at 1-1/2 in. x 1-1/2 in. x 39 in., one pre-notched top rail at 2 in. x 3-1/2 in. x 94 in., and one pre-notched bottom rail at 2 in. x 6 in. x 94 in. with an aluminium insert. Posts, caps and gates are ordered separately so the routing matches each post position in the run.

Can the HAA3 be supplied at other heights or widths?

48 in. x 96 in. is the standard section. Other heights and widths are available, and picket spacing can be adjusted. Both changes are made at the tooling and routing stage, so they are confirmed before production rather than on site.

Is the fence lead-free and fire rated?

The profile is extruded from 100% virgin PVC with no lead and no recycled content, and the product data lists a V-0 fire rating. The formulation also carries DuPont non-chalking TiO2 at 10 parts per 100 for UV colour retention.

How are posts configured for a run?

Posts are 4 in. x 4 in. or 5 in. x 5 in. and 72 in. long, pre-routed as line, end, corner, 3-way or blank. We need the run layout, including gate positions, to set the routing mix before extrusion and drilling.

What certifications and warranty apply?

Product documentation lists SGS, CE and ISO 9001, and company certificates include CE, RoHS and UL 94. The fence system carries a 30-year limited warranty.

How quickly can a 40HQ order ship, and do you support OEM?

Standard production for a 40HQ order runs about 7–10 days. OEM and ODM orders are part of our normal output, including private-label packaging, custom colours and new profile development from drawings or samples.
