Pvc fence double gate suit for each styles

Deqing Huazhijie Railing & Fencing Co., Ltd. manufactures the PVC fence double gate suit for each styles supplier as a matched part of the same extruded system as our panels — same profile family, same color, same hardware logic. We have produced lead-free PVC fence and railing profiles in Huzhou, Zhejiang since 2003, and this gate exists so that a driveway, equipment or service opening does not break the structural and visual continuity of the fence line.

• Product: double-swing gate suit, pre-assembled, built to the height of the PVC fence panel it serves
• Opening widths: 3 ft to 8 ft, configured as a double swing
• Colors: White, Tan, Grey, Cream
• Post: 4" x 4" with aluminum insert and internal flat cap
• Hardware: self-closing multi-adjust hinges, lock, drop rods, screws
• Order structure: Section + Post + Gate = complete fence
• Customs reference: HS code 3925900000

A Gate Built Around the Fence Line, Not Around a Catalogue

As a Pvc Fence Double Gate Suit For Each Styles manufacturer, we match product configuration to the application, operating limits, interfaces and acceptance criteria defined for each project.

A double gate is the one point where a fence system has to do two jobs at once: hold a wide clear opening and still read as part of the same run. We cut the suit from the same extruded profiles used in the panel range, so picket spacing, rail height and cap detail line up with the fence on either side of the opening.

Because the gate ships as a suit rather than a loose frame, posts, rail connectors, hinges, latch and drop rods arrive as one coordinated assembly. That removes the mismatch that appears when a gate is sourced separately from the panels it has to join.

Where the double gate suit fits

• Residential driveways and side-yard vehicle access in privacy, semi-private and picket fence runs

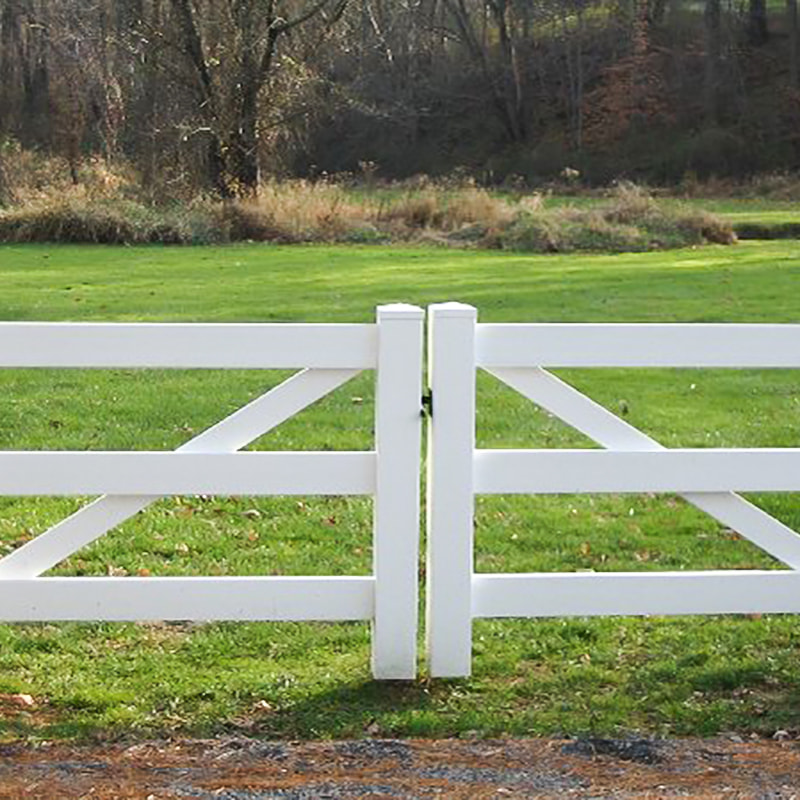

• Ranch, farm and equestrian perimeters where equipment or livestock movement needs a wide opening — the same logic we apply to the HDB 3-rail PVC horse fence
• Pool and railing enclosures where a matching gate is required at the entry point of an HBA PVC vertical railing fence run
• Estate, park and municipal installations where a full-height panel such as the HEA PVC privacy panel fence 6'x8' needs a service opening

What the Double Gate Suit Contains

Every element below is supplied as part of the suit, sized to the opening you specify.

Sizing the Opening: Width, Height and Swing

Two dimensions drive the configuration: the clear opening you need and the height of the panel the gate joins. Height is taken from the fence panel, so a 6 ft privacy run and its gate finish on the same line.

Width is quoted across the available range of 3 ft to 8 ft in a double-swing arrangement. A double leaf is the practical choice once the opening has to pass a vehicle, a trailer or farm equipment, because each leaf stays light enough for daily manual use.

• Clear opening: measured between the finished faces of the two gate posts, not center to center
• Leaf width: the opening divided across two leaves, allowing for hinge and latch clearance
• Swing direction: confirmed on site so the leaves open away from traffic and slope
• Ground clearance: set at installation so the leaf clears the finished grade across its full arc

Post, Rail and Hardware Engineering

The 4" x 4" post with an aluminum insert is the load path of the whole assembly. Hinges on a wide leaf transfer constant torque into the post, and the insert keeps that load from working the vinyl over time.

Rail connections use a socket system rather than surface brackets, which keeps the joint inside the profile and preserves the clean face of the gate. Hardware is supplied as a set: self-closing multi-adjust hinges, lock, drop rods and screws.

Material, Color and Climate Performance

The gate is extruded from the same lead-free formulation used across our fence range: 100% virgin vinyl with no recycled content and no lead stabilizer, plus DuPont TiO2 at 10 parts per 100 for chalking resistance. Pigments are sourced from US or German suppliers and remain traceable through production.

• Temperature range: rated from -40 °C to 70 °C for the material system
• Flammability: V-0 rated profile
• Biological and chemical resistance: no insect attack, no rot, no rust, no repainting
• Cleaning: a garden hose for normal soiling; mild abrasive cleaner for stubborn marks
• Warranty: 30-year limited warranty on the vinyl system

Assembly and Installation Sequence

1. Set the two gate posts to the specified clear opening, plumb and at the correct depth for your local post-setting practice.
2. Confirm post spacing against the pre-assembled leaf width before the post setting cures.
3. Mount the hinges to the post and leaf using the supplied screws, keeping the hinge line consistent on both sides.
4. Hang the leaves, then adjust the multi-adjust hinges to level the gate and set the closing force.
5. Fit the lock and drop rods, and check that the second leaf is held firmly in the closed position.
6. Rivet the remaining pre-assembled joints, fit the internal flat caps, and test the full swing arc for ground clearance.

Quality Control and Compliance Evidence

Production runs through extrusion, cutting, hole drilling, notching, packing and storage under one roof, with an independent quality-control group inspecting each extruder's output hourly and re-checking at random. Raw materials are traceable back to their supplier batch.

• Certification held: CE, RoHS and UL94 documentation, plus SGS, ASTM and ISO 9001:2000 certification and a TUV Global Manufacturer Certificate
• Product certificate set: SGS, CE, ISO 9001
• Fire performance: V-0
• Customs classification: HS code 3925900000

Ordering Structure and Delivery Scope

Fence orders are built as Section + Post + Gate = complete fence, so the gate is quoted inside the same bill of materials as the panels it joins rather than as a separate item. Tell us the panel style, the clear opening and the color, and the gate is configured to match.

Delivery for a 40HQ container is quoted at approximately 7-10 days. Section volumes and loading quantities are confirmed against the container plan before the order is released, so the gate, posts and panels ship together.

Information We Use to Configure Your Solution

Customization, OEM/ODM and Project Support

We hold more than 500 PVC profile styles and develop new fence profiles and gate styles against customer drawings, so a gate can be matched to a panel that is not in the standard catalogue. OEM and ODM orders are part of normal production, not a special case.

Installation guidance is provided as video support alongside the written sequence, and our technical staff work through opening dimensions, post setting and hardware selection with you before the order is confirmed.

Frequently Asked Questions

Will the double gate match the height and color of my existing fence panel?

Yes. The gate is built to the height of the PVC fence panel it serves and is finished in the same White, Tan, Grey or Cream as the panel and post range, so the gate line continues the fence line.

What opening widths can the double gate suit cover?

Available widths run from 3 ft to 8 ft in a double-swing arrangement. Send the clear opening measured between the finished post faces and we will confirm leaf widths and hinge clearance.

What hardware is included?

The suit includes self-closing multi-adjust hinges, a lock, drop rods and screws. The 4" x 4" posts carry an aluminum insert to take the hinge load, and each post is closed with an internal flat cap.

How much assembly is required on site?

The suit arrives pre-assembled. Site work is limited to setting the posts, hanging and adjusting the leaves, fitting the lock and drop rods, and riveting the final joints.

What warranty and material performance apply?

The vinyl system carries a 30-year limited warranty. The lead-free formulation uses 100% virgin vinyl with DuPont TiO2 at 10 parts per 100, is rated from -40 °C to 70 °C, and is V-0 rated for flammability.

Can you produce a gate for a non-standard panel style?

Yes. With more than 500 profile styles in production and in-house extrusion, we develop new gate and fence profiles from customer drawings under OEM or ODM terms.
