HDB 3-rail pvc horse fence

3-Rail PVC Horse Fence is designed to provide both safety and style for your equestrian property. Available in classic colors—White, Tan, Grey, and Cream—this fence not only enhances the aesthetic of your landscape but also stands the test of time, ensuring your horses are both secure and comfortable.

Standing at a standard height of 54 inches, our fence offers versatility with different height options to meet your specific needs. Each section measures 96 inches in width, with customizable sizes available, allowing you to create a perfect fit for your paddock or riding area. The robust 4"x 4" or 5"x 5" posts, available in a height of 78 inches, come pre-routed for easy installation in various configurations, including Line, End, Corner, and 3-way setups.

Equipped with a flat post cap, our posts not only provide a polished look but also ensure durability against the elements. The ribbed rails, measuring 1-1/2"x 5-1/2"x 94" and consisting of three pre-notched pieces, offer enhanced strength and stability. Each section has a volume of 0.07 CBM, making it efficient for shipping and installation.

For added convenience, matching gates are available, ensuring a cohesive and secure entry point to your horse enclosure. Invest in our 3-Rail PVC Horse Fence to create a safe, attractive environment for your horses while enjoying the benefits of low maintenance and long-lasting performance.

Product Description

Big farm,Horse fence, Ranch fence,Pet use.

Frame Material:100% Virgin PVC/ Plastic,Not Coated

Easy to install,More elastic and high impact resistance,Vinyl Is Durable and Low Maintenance.

Avaliable 4 kinds of difference post caps

Certificate:SGS,CE,ISO9001

30 Years Warranty

Panel kit includes all rails, and pickets

Fence Top Style Pvc 3-rail pvc horse fence
Color White, Tan, Grey, Cream
Height Standard height 54", Different heights available
Width Standard width 96", Different widths available
Post 4"x 4" or 5"x 5" or optional x 78'', pre routed as Line,End,Corner,3-ways or blank.
Post Cap Flat Cap
Ribbed Rail 1-1/2"x 5-1/2"x 94''x3pcs, pre notched
Volume of Section 0.07CBM, loading QTTY inquiry
Matching Gate Available

Contact Us for More Details

Don't hesitate to contact when you need us!

SUBMIT

About
Deqing Huazhijie Railing & Fencing Co.,Ltd.
Deqing Huazhijie Railing & Fencing Co.,Ltd.
Deqing Huazhijie Railing & Fencing Co.,Ltd. is China HDB 3-rail pvc horse fence suppliers and HDB 3-rail pvc horse fence company, which is located near Shanghai, established in 2003, is a professional manufacturer engaged in the research, development, production, sale, and service of PVC fence and PVC flooring. We are located in Huzhou, which has convenient transportation access. Dedicated to strict quality control and thoughtful customer service, our experienced staff members are always available to discuss your requirements and ensure full customer satisfaction.
If you select a current product from our catalog or want help with your application, you can go ahead and discuss your sourcing requirements with our customer service center.
Certificate Of Honor
  • Deqing Huazhijie Railing & Fencing Co.,Ltd.
  • Deqing Huazhijie Railing & Fencing Co.,Ltd.
  • Deqing Huazhijie Railing & Fencing Co.,Ltd.
  • Deqing Huazhijie Railing & Fencing Co.,Ltd.
  • Deqing Huazhijie Railing & Fencing Co.,Ltd.
News
PVC Horse Fence Industry knowledge

HDB 3-Rail PVC Horse Fence for Paddocks, Pastures and Ranch Boundaries

Deqing Huazhijie Railing & Fencing Co.,Ltd. builds the HDB 3-rail PVC horse fence as a complete perimeter kit for paddocks, pastures, training arenas and ranch boundaries. We have extruded PVC fence profiles in Huzhou, Zhejiang since 2003, and the HDB line runs through the same extrusion, cutting, drilling and notching process as every other vinyl fence family we ship. Each section leaves the plant as a matched set of three ribbed rails, pre-routed posts and caps, so a farm crew or fencing contractor assembles it the way a wood fence goes together, without painting, staining or replacing boards that rot.

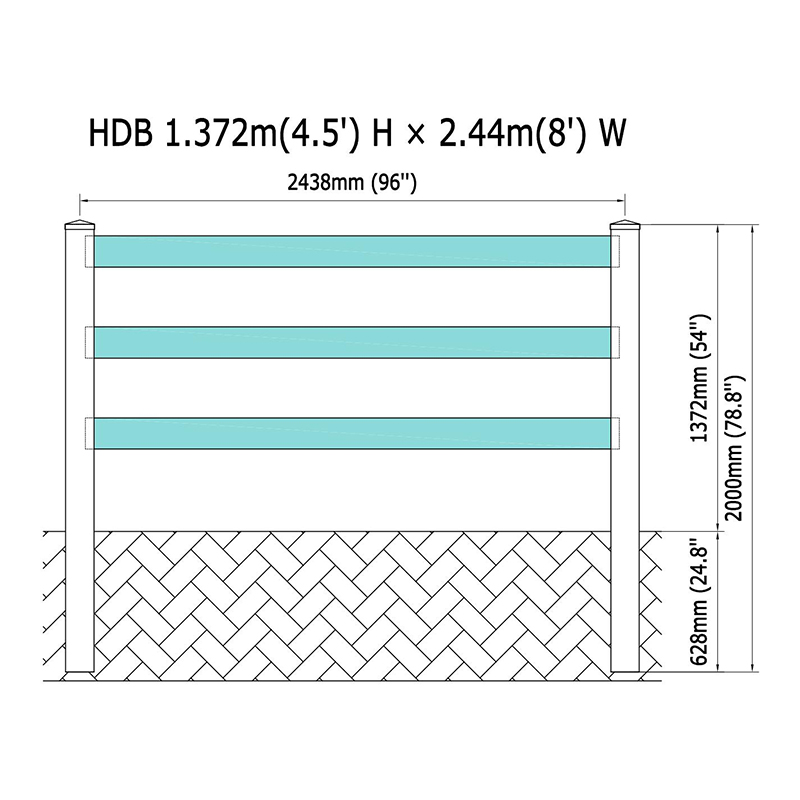

The standard section is 54" high and 96" wide in White, Tan, Grey or Cream, with matching gates to keep the enclosure line continuous. Holding the rail profile, post routing and cap tooling in-house is what lets us change heights, widths and post sizes for a specific property instead of forcing a catalogue size onto the site.

What Ships in an HDB 3-Rail Section

Component Standard specification What we configure
Ribbed rail 1-1/2" x 5-1/2" x 94", pre-notched, 3 pcs per section Rail length matched to a custom section width
Post 4" x 4" or 5" x 5", 78" long, pre-routed Routing pattern, post length, blank posts
Post cap Flat cap Four cap profiles available
Section height 54" Other heights on request
Section width 96" Custom widths for irregular runs
Colour White, Tan, Grey, Cream Single colour per order
Section volume 0.07 CBM Container loading calculated from section count

Rails, pre-routed posts and caps are quoted as separate line items so quantities follow the actual layout rather than a nominal area figure. Gates are added to the same order so the hardware, colour and post routing match the fence line.

Reading the HDB Numbers Before Ordering

  • 54" fence height keeps the top rail at a level that stays visible across the line while discouraging leaning and crowding at the boundary.
  • 96" section width with 94" rails means the rail ends seat into the routed post pockets, so a standard run closes without field cutting.
  • 78" post length leaves roughly 24" of post below a 54" fence line for burial and concrete setting.
  • 1-1/2" x 5-1/2" ribbed rail adds stiffness along the span and a wider bearing surface where animals push against the top rail.
  • 0.07 CBM per section lets us calculate container loading directly from the section count on your layout.

Post Routing and Layout Types

Posts arrive pre-routed, which removes the drilling step from the site and keeps rail heights consistent along the whole perimeter. We route to the position each post occupies in the run:

  • Line post — rails pass straight through on both sides of a continuous run.
  • End post — rails terminate on one side, used where the fence stops or meets a gate.
  • Corner post — rails meet at 90 degrees, the highest-stress position in the layout.
  • 3-way post — rails continue in three directions at a T-junction or internal subdivision.
  • Blank post — unrouted, for gate hanging, bracing or site-fabricated details.

Corner, end and gate posts carry the pull-out load of the rails, so we normally recommend the 5" x 5" profile at those positions and reserve 4" x 4" for straight line runs. Wind exposure, span length and gate weight decide the final mix.

Material, Colour and Climate Performance

HDB profiles are extruded from 100% virgin PVC with no recycled content and no lead. The formulation carries UV inhibitors, impact modifiers and stabilisers, with titanium dioxide at 10 parts per 100 using a non-chalking grade, plus pigments from US or German suppliers. Raw materials are traceable through the plant, and the compound is rated for service from -40°C to 70°C, which covers Canadian prairie winters, northern European freeze-thaw cycles and Australian summer sun alike.

Vinyl does not rot, does not host termites and does not need repainting. Surface chalking is controlled by the TiO2 package, and the finished fence is backed by our 30-year limited warranty.

Gates and Matching Fence Lines

Matching gates are produced in the same colour and post routing as the HDB run, so an entry point reads as part of the fence rather than an addition. Where a property needs more than one enclosure type, the same post and cap system carries across our horse fence family: the HDA 2-rail pvc farm fence for open pasture, the HDC 4-rail pvc ranch fence for taller containment, and the HDD pvc cross horse fence where a cross-rail pattern suits the site.

Installation Sequence and Site Interfaces

  1. Set posts to the layout drawing, treating vinyl posts the same way as wood posts. Where local practice is to concrete wood posts, concrete the vinyl posts to the same depth.
  2. Insert the pre-notched rails into the routed post pockets. The notched rail ends engage the post wall and resist pull-out under animal pressure.
  3. Check rail height and alignment along the run before backfilling or final tightening.
  4. Fit flat post caps after the fence is assembled.
  5. Hang gates on the blank or end posts prepared for them, and confirm swing clearance before finishing.

We supply video installation guidance and technical support with the order, and our team reviews layout drawings before production so post routing matches the site plan.

Quality Control and Acceptance Evidence

An independent quality-control group inspects each extruder's production every hour and examines finished profiles at random, covering wall thickness, colour consistency, notch and routing accuracy and cap fit. Certificates held include SGS, CE, ISO 9001, ASTM, TUV, ROHS and UL94, and we issue the relevant documents with the shipping set.

  • Traceable raw material records for resin, TiO2 and pigment batches.
  • Pre-shipment quantity and specification check against the confirmed order.
  • OEM and ODM production, with more than 500 PVC profiles already tooled and new fence profiles developed from customer drawings.

Information We Use to Configure Your Solution

Send these details and we return a configured quotation with section counts, post mix and container loading.

  • Total perimeter length, plus the number of corners, ends, T-junctions and gate openings.
  • Required fence height and section width, or the site plan if you want us to work from it.
  • Animal type and stocking pressure, so rail count and post size suit the load.
  • Soil condition, frost depth and typical wind exposure at the site.
  • Colour, post cap profile and gate widths.
  • Destination port, packaging preference and any private-label or OEM requirements.

As a China PVC horse fence manufacturer working with distributors, contractors and farm owners, we quote from the working point rather than a stock list. Custom sizes, colours and branded packaging are produced to order, and the custom HDB 3-rail pvc horse fence suppliers programme covers both catalogue builds and fully engineered layouts.

Frequently Asked Questions

What is the standard size of the HDB 3-rail PVC horse fence?

The standard section is 54" high and 96" wide, built from three ribbed rails measuring 1-1/2" x 5-1/2" x 94". Heights and widths are made to order when a property needs a different line, and rail lengths are cut to match the custom section width.

Should I use 4" x 4" or 5" x 5" posts?

Both are available at 78" length and pre-routed. The 4" x 4" profile suits straight line runs, while the 5" x 5" profile is the usual choice at corners, ends, T-junctions and gate posts, where rail pull-out and gate weight put more demand on the post.

Can the fence be supplied with matching gates?

Yes. Gates are produced in the same colour and post routing as the fence run, and blank or end posts can be prepared for gate hanging so the entry point lines up with the perimeter.

Do the posts need to be set in concrete?

Treat vinyl posts the same as wood posts. If wood posts are normally cemented in your area, cement the vinyl posts to the same depth. The 78" post length leaves about 24" below a 54" fence line for burial.

Which colours and caps are available?

White, Tan, Grey and Cream are the standard colours, and four post cap profiles are available. Flat caps are the default on the HDB build.

What support comes with an order?

We review layout drawings before production, supply video installation guidance and technical support, and issue the relevant certificates with the shipping documents. OEM and ODM orders are produced to customer drawings and branding.
