HDD pvc cross horse fence

The PVC Cross Horse Fence, expertly designed to combine functionality and aesthetics. Available in classic colors like White, Tan, Grey, and Cream, this fence not only enhances the beauty of your property but also offers unparalleled durability and strength.

Constructed at height of 54 inches, with customizable options for both height and width (standard width 96 inches), our fence provides the ideal barrier for your horses while ensuring safety and security. The robust 4"x 4" or 5"x 5" posts, which come pre-routed as Line, End, Corner, 3-ways, or blank, offer versatility for any configuration you may require.

Each section of our PVC fence features a flat cap design, ensuring a polished finish that complements the ribbed rails measuring 1-1/2"x 5-1/2"x 94" in size, included in four pieces per section. With a volume of 0.086 CBM per section, you can easily plan for efficient shipping and installation.

To complete your fencing system, we also offer matching gates, ensuring that your entryways blend seamlessly with your fence design. Choose our PVC Cross Horse Fence for a stunning, durable, and safe solution for your equestrian needs.

Product Description

Big farm,Horse fence, Ranch fence,Pet use.

Frame Material:100% Virgin PVC/ Plastic,Not Coated

Easy to install,More elastic and high impact resistance,Vinyl Is Durable and Low Maintenance.

Avaliable 4 kinds of difference post caps

Certificate:SGS,CE,ISO9001

30 Years Warranty

Panel kit includes all rails, and pickets

Fence Top Style Pvc cross horse fence
Color White, Tan, Grey, Cream
Height Standard height 54", Different heights available
Width Standard width 96", Different widths available
Post 4"x 4" or 5"x 5" or optional x 78'', pre routed as Line,End,Corner,3-ways or blank.
Post Cap Flat Cap
Ribbed Rail 1-1/2"x 5-1/2"x 94''x4pcs, pre notched
Volume of Section 0.086CBM, loading QTTY inquiry
Matching Gate Available

Contact Us for More Details

Don't hesitate to contact when you need us!

SUBMIT

About
Deqing Huazhijie Railing & Fencing Co.,Ltd.
Deqing Huazhijie Railing & Fencing Co.,Ltd.
Deqing Huazhijie Railing & Fencing Co.,Ltd. is China HDD pvc cross horse fence suppliers and HDD pvc cross horse fence company, which is located near Shanghai, established in 2003, is a professional manufacturer engaged in the research, development, production, sale, and service of PVC fence and PVC flooring. We are located in Huzhou, which has convenient transportation access. Dedicated to strict quality control and thoughtful customer service, our experienced staff members are always available to discuss your requirements and ensure full customer satisfaction.
If you select a current product from our catalog or want help with your application, you can go ahead and discuss your sourcing requirements with our customer service center.
Certificate Of Honor
  • Deqing Huazhijie Railing & Fencing Co.,Ltd.
  • Deqing Huazhijie Railing & Fencing Co.,Ltd.
  • Deqing Huazhijie Railing & Fencing Co.,Ltd.
  • Deqing Huazhijie Railing & Fencing Co.,Ltd.
  • Deqing Huazhijie Railing & Fencing Co.,Ltd.
News
PVC Horse Fence Industry knowledge

Deqing Huazhijie Railing & Fencing Co., Ltd. builds the HDD pvc cross horse fence manufacturer line at our factory in Huzhou, Zhejiang, near Shanghai. We have extruded, cut, drilled and notched PVC fence profiles in-house since 2003, and the HDD is our four-rail cross horse fence for paddock lines, farm perimeters, ranch boundaries and pet containment. Sections ship as complete kits — rails, pickets and pre-routed posts — with matching gates sized to the opening.

Where the HDD Cross Horse Fence Fits

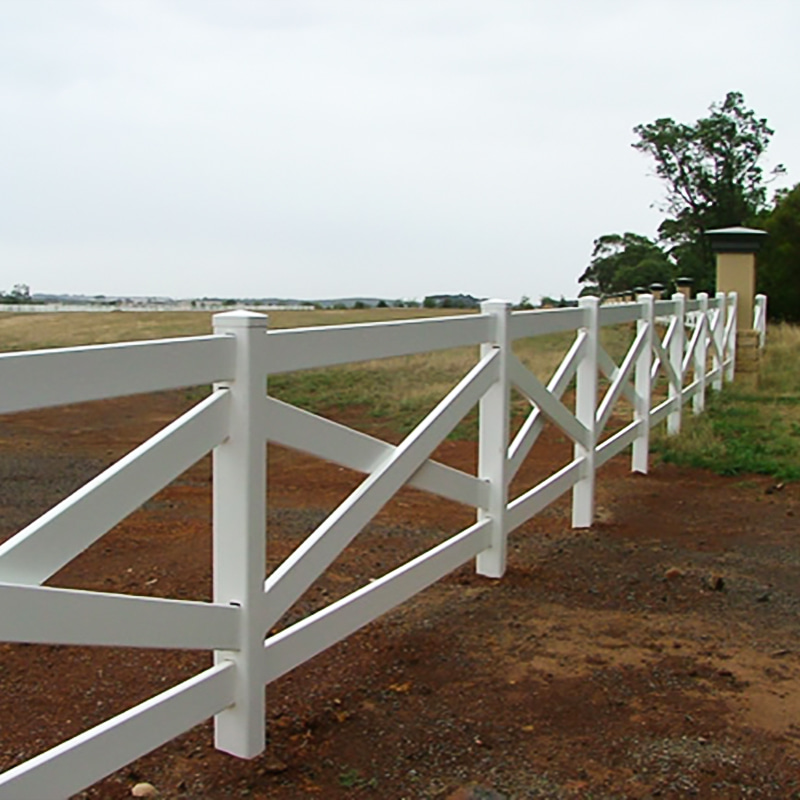

The HDD is a 54-inch-high, 96-inch-wide section carried on four ribbed rails that pass through routed posts. The open rail pattern keeps sight lines clear across a paddock while presenting a visible, physical boundary that horses read at a distance. It is the profile we supply for horse paddock perimeters, farm and ranch boundaries, arena surrounds and pet containment.

Rail count is the main selection variable on an equestrian line. Fewer rails suit boundary marking and light containment; more rails add visual mass and close the gap a horse can reach through. Our horse and farm range covers that spread, from the HDA 2-rail pvc farm fence and the HDB 3-rail pvc horse fence up to the heavier HDC 4-rail pvc ranch fence.

Section Anatomy and Specification Meaning

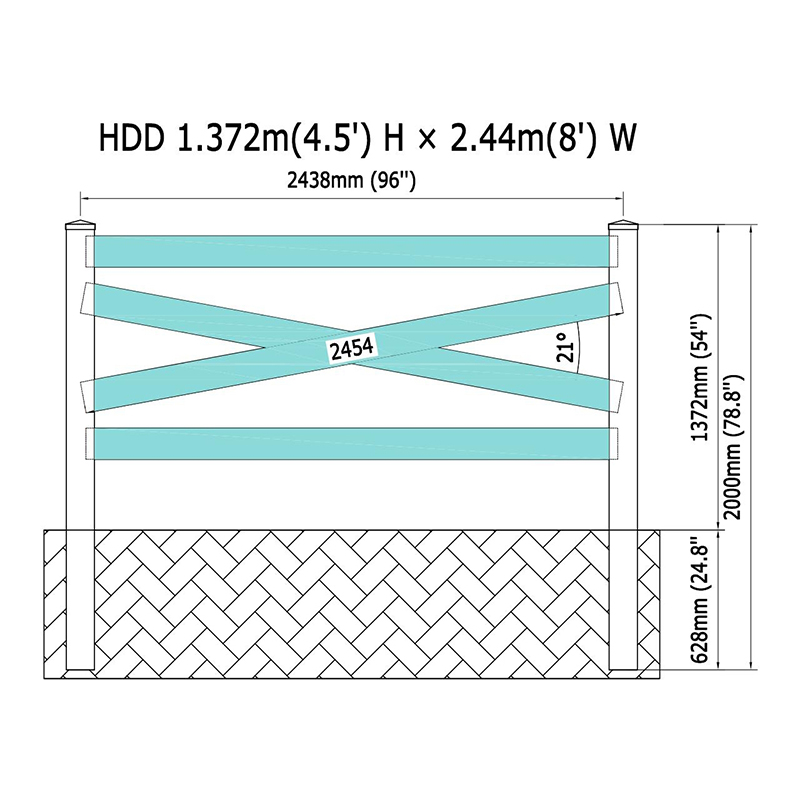

Every figure on the HDD drawing does a job. Height sets the barrier line and the reach-over distance. Width sets post spacing and the number of posts per run. Rail section governs stiffness across the span, and post size governs embedment and the load the finished line can carry.

Component Standard Options and Notes
Section height 54 in Different heights available
Section width 96 in Different widths available
Ribbed rail 1-1/2" x 5-1/2" x 94", 4 pcs per section Pre-notched for the post route
Post 4" x 4" or 5" x 5" Pre-routed as Line, End, Corner, 3-way or blank
Post cap Flat cap Four cap styles available
Panel kit All rails and pickets included Assembled on site into routed posts
Gate Matching gate available Sized to the finished opening
Colour White, Tan, Grey, Cream Colour runs matched across a project
Packed volume 0.086 CBM per section Used for container loading plans
Material 100% virgin PVC, uncoated Lead-free formulation
  • Ribbed rail face — the rib runs the length of the rail and adds stiffness without adding wall thickness to the whole profile.
  • Pre-notched rail ends — the notch engages the routed post opening, so the rail locks mechanically instead of relying on fasteners alone.
  • 0.086 CBM per section — a firm figure for freight planning, container fill and warehouse slotting before the order is placed.

Configuration Options and Post Routing

Posts arrive routed for the position they occupy in the run, so a corner post is not interchangeable with a line post. We route Line, End, Corner, 3-way and blank posts, which lets a single order cover straight runs, direction changes, T-junctions and gate jambs without site drilling.

  • Post section — 4" x 4" for standard runs, 5" x 5" where a heavier line or longer post spacing is required.
  • Routing set — Line, End, Corner, 3-way or blank, counted against the site layout.
  • Post caps — flat cap as standard, with four cap styles available across the range.
  • Colour — White, Tan, Grey and Cream, produced as a single colour batch for multi-section projects.
  • Gates — matching gates built to the same profile and colour as the fence line.

Material Formulation and Weather Performance

HDD sections are extruded from 100% virgin PVC with no recycled content and no lead. UV protection comes from titanium dioxide at 10 parts per hundred, with US or German pigments carrying colour stability, plus impact modifiers and stabilizers that hold the profile through cold snaps and summer heat. Our published working range for the vinyl fence range is -40°C to 70°C.

The profile is uncoated. Colour and surface are the extruded material itself, so there is no film or paint layer to peel, chip or flake. Raw materials are traceable through the batch, which is what allows us to answer a formulation question on a delivered order rather than only on a sample.

Installation Sequence and Site Interfaces

Because rails are pre-notched and posts are pre-routed, site work is assembly rather than fabrication. The sequence below is the one we document for installers and include with the technical support pack.

  1. Set the posts. Treat PVC posts as you would wood posts — where local practice calls for concrete, concrete them.
  2. Insert the rails into the routed post openings, working along the run.
  3. Fit the pickets and complete the panel kit.
  4. Attach the post caps after the fence is standing.
  5. Hang the matching gate and check the swing against the jamb post.

The heavier wall post-and-rail configuration, combined with notched rails, gives greater resistance to pullout and stronger fastening at each post. Wind performance depends on the style of fence, the post installation and the number of horizontal rails, so we confirm the post setting detail against the exposure of the site.

Quality Control and Acceptance Evidence

Extrusion, cutting, hole drilling, notching, packing and storage all run under one roof in Huzhou, so a profile is not handed between subcontractors between operations. An independent quality-control group inspects each extruder's output every hour and audits finished goods at random in addition to that schedule.

  • SGS, CE, ISO 9001 and ASTM certification held for the fence range, with TUV global manufacturer certification.
  • ROHS and UL94 certification held at company level.
  • A 30-year limited warranty is published for our vinyl fence range.
  • Incoming raw material is traceable by batch, including TiO2 and pigment supply.

Gates, Accessories and Matching Components

A horse fence line is only complete when the entry points match it. We supply gates built to the same rail and post profile as the HDD section, so the gate frame reads as part of the fence rather than an addition. Post caps, rails, pickets and posts are all available as separate line items, which matters for phased installations and for replacement stock held on site.

OEM and ODM work is part of our normal production. We develop new fence profiles and styles against a customer's drawing or market requirement, and we produce customer-specific sizes where a project cannot be met from the standard 54" x 96" section.

Information We Use to Configure Your Solution

A quotation for the HDD cross horse fence is built from the site, not from a catalogue page. These are the inputs that let us return a firm configuration and price rather than an estimate.

  • Run layout — total linear length, number of direction changes, T-junctions and gate openings.
  • Post schedule — how many Line, End, Corner, 3-way and blank posts the layout requires.
  • Height and width — whether the standard 54" x 96" section applies or a custom dimension is needed.
  • Post size — 4" x 4" or 5" x 5", and the post setting method used on site.
  • Colour — White, Tan, Grey or Cream, and whether colour must be consistent across phases.
  • Gates — quantity, opening widths and hinge side.
  • Delivery — destination port, container preference and required packing format.
  • Documentation — which certificates, drawings or installation documents the project file needs.

Maintenance, Spare Parts and Serviceability

Under normal conditions a garden hose rinse is enough. Stubborn marks respond to a mild abrasive cleaner of the type used on fibreglass baths; graffiti and paint usually lift with ordinary detergent and water, a pressure washer, or in difficult cases a paint thinner, with 400 grit sandpaper as a last step.

Individual rails, pickets, posts, caps and gates can be replaced without dismantling the surrounding run, because the section is assembled from discrete components rather than welded or bonded. We supply those components as spares, and we provide video installation guidance and technical support to installers and distributors working with the system.

Frequently Asked Questions

What are the standard dimensions of the HDD PVC cross horse fence?

The standard section is 54 inches high and 96 inches wide, carried on four ribbed rails measuring 1-1/2" x 5-1/2" x 94". Both height and width can be produced to other dimensions when a project requires it.

Which post routing do I need for corners and gate openings?

Posts are routed as Line, End, Corner, 3-way or blank. Corners take Corner posts, T-junctions take 3-way posts, and gate jambs are routed to suit the gate frame. Send the run layout and we will return the post schedule that matches it.

How much shipping volume does one section take?

One section occupies 0.086 CBM packed. That figure is used directly for container loading plans, so the quantity per container can be confirmed before the order is placed.

Does the HDD fence come with matching gates?

Yes. Matching gates are available in the same profile and colour as the fence line, sized to the finished opening. Gate quantity, opening width and hinge side are part of the configuration we confirm with the order.

What maintenance does a PVC horse fence need?

Rinsing with water handles normal soiling. The material does not need painting, staining or sealing, and it is formulated to resist surface cracking, chipping, peeling and rot over its service life.

Can the fence be supplied in custom heights, widths and colours?

Custom heights and widths are available beyond the standard 54" x 96" section, and White, Tan, Grey and Cream are the standard colours. We also take OEM and ODM orders and develop new profiles against a customer's drawing or market requirement.
