HDC 4-rail pvc ranch fence

Deqing Huazhijie Railing & Fencing Co., Ltd. has extruded PVC fence profiles at our Huzhou factory near Shanghai since 2003. As an HDC 4-rail pvc ranch fence manufacturer, we build the four-rail member of our horse and ranch fence family: a 54-inch standard height, open-rail system that marks pasture boundaries, contains horses and livestock, and keeps long sightlines across a working farm. Every section ships as a kit — posts, ribbed rails, post caps and matching gates — in white, tan, grey and cream.

Material and Formulation Behind the Rail Profile

The HDC profile is extruded from 100% virgin PVC with no recycled content and no lead, and it is supplied uncoated — the colour runs through the material rather than sitting on the surface. Our formulation uses DuPont titanium dioxide at 10 parts per 100 as the UV and anti-chalking component, together with impact modifiers, stabilizers and pigments sourced from US or German suppliers. Raw materials stay traceable through the extrusion line, which is what lets us answer formulation questions from distributors and project engineers with a specific answer rather than a general one.

• Service temperature: -40 °C to 70 °C, covering Canadian prairie winters through Australian summer sun
• Surface behaviour: engineered to resist chalking, cracking, chipping, peeling and rot over the service life of the fence
• Maintenance: a garden hose rinse handles normal dirt; mild abrasive cleaners handle stubborn staining
• Warranty: 30-year warranty published for our PVC fence range

Rail, Post and Panel Configuration

The four rails define this model. Each rail is a ribbed 1-1/2" x 5-1/2" profile cut to 94 in and notched before packing, so the rail seats into the post routing and resists pull-out once assembled. Posts are routed at the factory to the position they will occupy in the run, which removes the on-site drilling that slows a long boundary installation.

• Line post — straight run between two sections
• End post — terminates a run

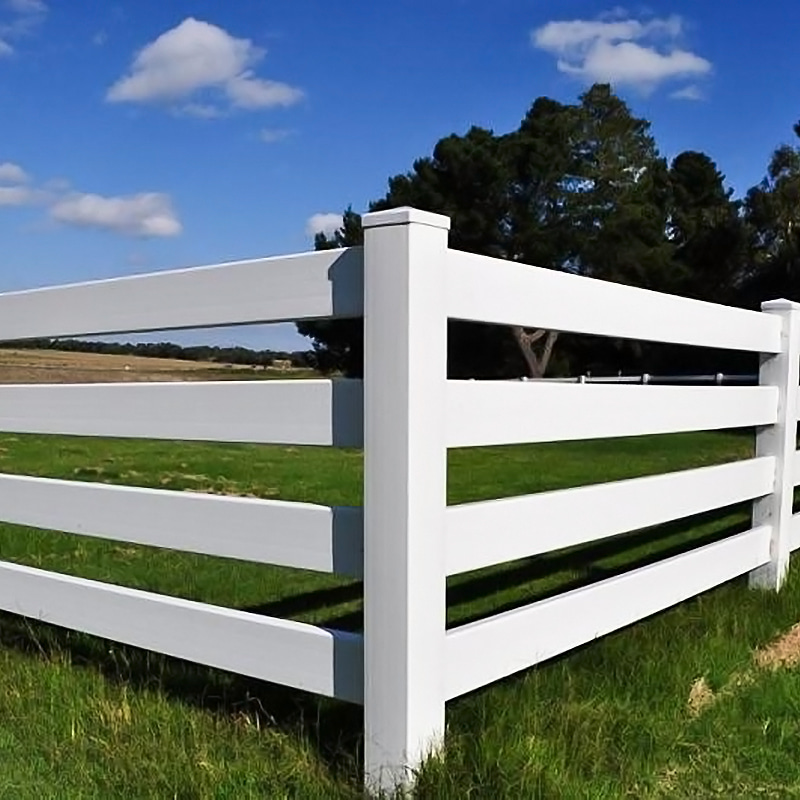

• Corner post — 90° direction change
• 3-way post — T junction where a run branches
• Blank post — unrouted, for gate hanging or site-specific work

HDC 4-Rail Ranch Fence Specification Range

Where the Four-Rail Layout Fits

Four rails create a continuous horizontal barrier at four heights, which is the pattern most often specified for horse paddocks, ranch perimeters, farm lanes and pet containment areas. Because the rails are open, wind passes through the section instead of loading it as a solid panel would, and the fence stays visually light across large acreage. The 54-inch standard height is a common working height for livestock containment while keeping the horizon visible from a tractor or truck cab.

• Horse paddocks and turnout — visible rails help animals read the boundary
• Ranch and property boundary — long runs with consistent post spacing
• Farm lanes and equipment separation — open sections that do not trap wind
• Pet containment — four rails close the gaps a two-rail layout leaves
• Estate and residential boundary — where an open rail look is preferred over privacy panels

Matching Rail Count to the Enclosure

Rail count is the main variable across our horse and ranch range, and it is usually decided by the animal being contained and the visual weight the site can carry. The same post, cap and colour system runs across all four models, so a property can mix layouts without the fence reading as two different products.

• HDA 2-rail pvc farm fence — lightest layout, suited to boundary marking over large acreage
• HDB 3-rail pvc horse fence — mid-weight containment for smaller paddocks
• HDC 4-rail — the four-rail working layout described here
• HDD pvc cross horse fence — cross-rail styling for a more enclosed appearance

Extrusion, Notching and Quality Control

Our production sequence runs extrusion, cutting, drilling, notching, packing and storage inside the same facility, so a section is never handed between suppliers between steps. An independent quality-control group inspects each extruder's output every hour and carries out additional random checks across the shift. Because rails are notched and posts routed before packing, the fit that matters on site is verified before the kit leaves the plant.

Documentation for the PVC fence range includes SGS, CE and ISO 9001 certification, with ROHS and UL94 material evidence available where a project specification calls for it. Our products are exported to Canada, the United States, Europe, Australia and New Zealand, alongside domestic supply across China.

Installation, Posts and Ground Conditions

Installation follows the same logic as a wood fence. Posts are set first — we recommend treating vinyl posts the way wood posts are treated locally, so where posts are cemented in your area, cement the vinyl posts as well. Rails then drop into the routed post holes and the notched ends seat against the post wall, and post caps are fitted after the fence is assembled. Video installation guidance is supplied with the order.

• Post setting — cement or driven, matched to local practice and soil condition
• Rail insertion — pre-notched ends seat into routed post openings
• Cap fitting — flat cap standard, fitted last
• Gate hanging — blank posts supplied where hardware lands

Gates, Caps and Custom Configurations

Matching gates are made from the same rail and post profile so an entrance reads as part of the run rather than an addition to it. We also take OEM and ODM work: our profile library covers more than 500 PVC fence profiles, and we develop new fence profiles and styles against a customer's drawing or sample. Custom heights, custom widths, custom colours and non-standard post routing are settled at the quotation stage rather than after the order is placed.

Information We Use to Configure Your Solution

We prepare a configuration and quotation from the project data below. Sending these details with the enquiry shortens the round trip considerably.

• Run length and layout drawing, including line, end, corner and 3-way post positions
• Required height and section width, if they differ from the 54 in x 96 in standard
• Post size preference (4" x 4" or 5" x 5") and cap style
• Colour selection and any pigment or formulation specification
• Gate count, opening widths, hinge side and latch side
• Ground conditions and intended post-setting method
• Wind exposure and any local fence code the installation must satisfy
• Container or truck loading target, packing and labelling requirements
• Destination port, delivery schedule and whether OEM branding is required

Frequently Asked Questions

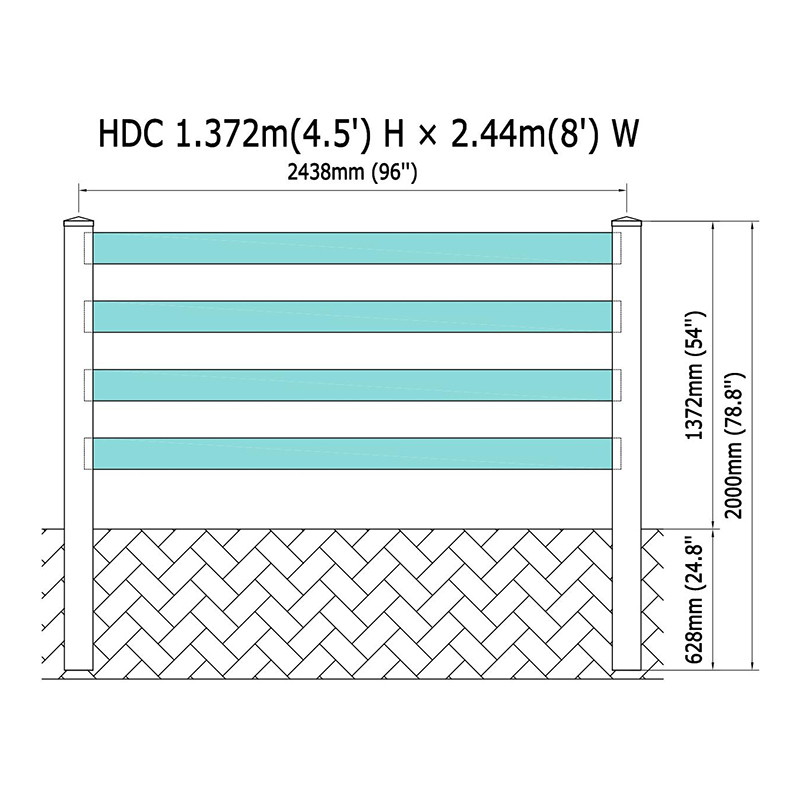

What heights and widths can the HDC 4-rail ranch fence be supplied in?

The standard section is 54 in high and 96 in wide. Both dimensions are customizable, so a run can be matched to an existing post line, a gate opening or a local height requirement without changing the rail profile.

How are the posts supplied?

Posts are 4" x 4" or 5" x 5" and arrive pre-routed as line, end, corner, 3-way or blank, depending on where they sit in the run. Routing at the factory removes on-site drilling and keeps the rail-to-post fit consistent across a long boundary.

Is the four-rail layout suitable for horses and other livestock?

Four rails give a continuous barrier at four heights, which is why this model is used for horse paddocks, ranch perimeters, farm lanes and pet containment. The uncoated virgin PVC formulation carries impact modifiers and stays elastic in cold weather, and the open rail design lets wind pass through the section.

Do you supply gates to match the fence?

Yes. Matching gates are built from the same rail and post profile and sized to the opening, so the entrance matches the run in colour, rail spacing and cap style.

Will the colour chalk or fade?

The formulation uses DuPont titanium dioxide at 10 parts per 100 as the UV and anti-chalking component, with pigments from US or German suppliers. Colour is extruded through the material rather than coated on the surface, so there is no coating layer to peel.

How is the fence packed for shipping?

Each section occupies 0.086 CBM, which we use to calculate container and truck loading. Rails arrive pre-notched and posts pre-routed, and packing and labelling can be arranged to suit a distributor's warehouse or a direct-to-site delivery.
