Pvc fence profiles panels

Deqing Huazhijie Railing & Fencing Co.,Ltd. extrudes PVC fence profiles and panels at our plant in Deqing, Zhejiang, near Shanghai. Established in 2003, we produce the complete component set — posts, rails, pickets, tongue-and-groove panels, caps and matching accessories — so a project can be sourced as one coordinated fence system instead of a mixed bill of materials from several vendors.

Our profiles are made from 100% virgin PVC with no recycled content and no lead, stabilized with UV inhibitors and impact modifiers. That formulation is the reason a fence built from our profiles holds its colour and section geometry through freeze-thaw cycles, coastal humidity and high-sun exposure rather than chalking, warping or rusting.

What the Profile Range Covers

As a Pvc Fence Profiles Panels manufacturer, we match product configuration to the application, operating limits, interfaces and acceptance criteria defined for each project.

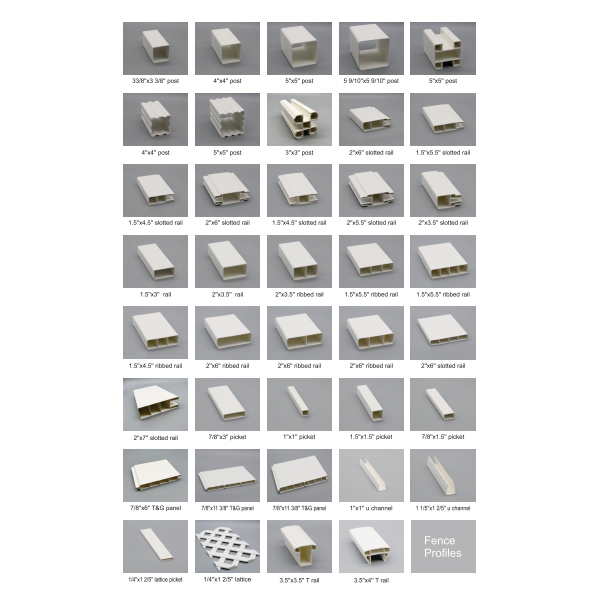

As a PVC fence profiles panels manufacturer, we supply the extruded parts that make up a finished fence, plus the panels that ship as pre-assembled sections. The range is organized by fence function, and each family shares the same post, rail and cap interface so components can be combined across styles on a single site.

• Picket profiles — flat, dog-ear and spade pickets in 1"x1" and 7/8" sections, with selectable picket spacing and finial or crown-cap finishes.
• Privacy panel profiles — tongue-and-groove and picket-top panels, including lattice-top variants for a lighter visual line.
• Semi-privacy profiles — louvered and alternating picket arrangements that block sightlines at eye level while keeping air movement across the boundary.
• Railing and pool profiles — vertical and horizontal rail systems, handrail sections and small-picket infill for code-driven pool and balcony enclosures.
• Agricultural rail profiles — 2-rail, 3-rail, 4-rail and cross-buck configurations for pasture, paddock and ranch perimeters.
• Accessories — post caps, brackets, post trims, gate frames and hardware that complete the assembly.

Configuration Variables by Component

Every order is built from a component matrix. The table below shows what changes between configurations and what stays fixed, which is the fastest way to align a drawing set with a production run.

Material Formulation and Site Behaviour

The compound behind every profile is traceable batch to batch: virgin PVC resin, DuPont titanium dioxide at 10 parts per 100 for non-chalking UV protection, and US or German brand pigments for colour stability. No lead stabilizers and no regrind enter the mix.

Because the material does not absorb water, panels hold their dimensions in wet climates and do not need painting, staining or sealing. Cleaning is a rinse with a garden hose; stubborn marks come off with a mild abrasive cleaner or, in the worst case, 400-grit sandpaper.

Critical Specifications to Confirm Before Tooling

• Height: 72" is our standard panel height; other heights are produced to the project requirement.
• Width: 96" is the standard section width, with custom widths available.
• Post section: 4"x4" or 5"x5", selected against wind load, rail count and gate weight.
• Colours: white, tan, grey and cream as standard, with custom colour matching on OEM orders.
• Wall thickness and rail count: set by span, exposure and the wind load the installation must resist.
• HS code: 3925900000 for customs and import documentation.

From Extrusion to Packed Bundle

Production runs through six controlled stages: extrusion, cutting, drilling holes, notching, packaging and storage. Routing the post holes and notching the rails in our plant removes the field cutting that most often causes installation errors, and it means a fabricator receives parts that assemble in a fixed sequence.

An independent quality-control group inspects each extruder's output every hour and pulls additional random samples across the shift. Documentation supporting the range includes CE, RoHS and UL94 listings, plus SGS, ASTM, ISO 9001 and TUV Global Manufacturer certification.

Installation Interfaces and Assembly Logic

Posts arrive routed, rails arrive notched, and pickets slide into the rail pockets before the section is lifted into the post. Heavier post and rail walls combined with notched rails increase pull-out resistance at the joints. Post caps are fitted after the section is set, and posts are cemented in the same conditions where a wood post would be cemented.

Gates are produced to match the fence line, so a driveway or pool entry does not break the visual pattern. For assemblies that need a finished top edge, the HAG crown cap for picket fence closes the picket line cleanly, and the HBA PVC vertical railing fence uses the same post interface for railing applications.

Where These Profiles Fit

The range serves residential estates, gardens and parks, farms and pasture boundaries, warehouse and yard perimeters, balconies, pool surrounds and temporary enclosure work. For full-privacy boundaries, the HEA PVC privacy panel fence 6'x8' is built on the same 72" x 96" panel platform described above, so a distributor can stock one post and rail family and cover several fence styles.

OEM, ODM and Custom Profile Development

We hold more than 500 PVC profile styles and welcome OEM and ODM orders. When a market needs a section that does not exist in the catalogue, our technical team develops the new fence profile and style from the customer's drawing or sample, then confirms it against a physical sample before the production run. Custom sizes, colours and component combinations are handled the same way.

Information We Use to Configure Your Solution

A quotation that holds up in production starts from a short, specific data set. The matrix below shows what we ask for and how each item changes the configuration.

Documentation, Packaging and Delivery Scope

Orders ship with installation instructions and access to our video installation guidance, so contractors and DIY installers work from the same assembly sequence. Components are bundled by type and labelled for the section they belong to, which keeps a multi-style order readable on site.

Typical production time is about 7–10 days for a 40HQ container. Products carry a 30-year limited warranty, and the range is supplied to markets including the USA, Canada, Australia, New Zealand, Europe, Russia, Poland and Africa. Custom PVC fence profiles panels manufacturer orders follow the same documentation and packing standard as catalogue items.

Frequently Asked Questions

What is the difference between a PVC fence profile and a PVC fence panel?

A profile is a single extruded section — a post, rail, picket or trim. A panel is the assembled unit of pickets or tongue-and-groove boards held between rails, ready to drop into routed posts. We supply both, and the panel is built from the same profile family so replacement parts always match.

Which heights and widths can be produced?

Our standard panel is 72" high and 96" wide. Different heights and widths are produced to order, and custom sizes are available alongside the catalogue range.

Is the material lead-free and UV stabilized?

Yes. The compound is 100% virgin PVC with no lead and no recycled material, stabilized with DuPont titanium dioxide at 10 parts per 100 plus UV inhibitors and impact modifiers. That combination is what prevents chalking and fading under long sun exposure.

How are posts and rails prepared for installation?

Posts are routed and rails are notched in our plant to the agreed hole positions and pocket spacing. The installer sets the post, inserts the rails, slides the pickets into the rail pockets, lifts the section into place and fits the caps. Posts are cemented where local practice calls for cementing wood posts.

Can you develop a new profile for our market?

We take OEM and ODM orders and develop new fence profiles and styles from a customer drawing or sample. With more than 500 existing profile styles, many requests can be met by adapting a current section rather than starting new tooling.

What maintenance does a PVC fence need?

None beyond cleaning. No painting, staining or sealing is required. A garden hose handles normal dirt, a mild abrasive cleaner handles stubborn marks, and graffiti or paint can usually be removed with detergent, a pressure washer or, in difficult cases, 400-grit sandpaper.
