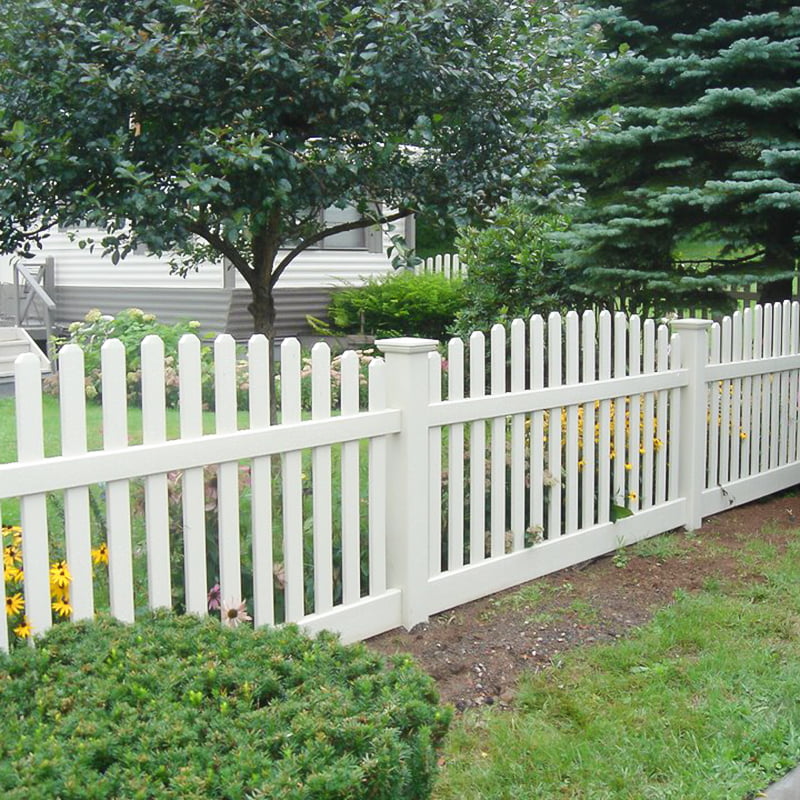

HAC3 dog ear top garden fence

The Dog Ear Top Garden Fence, the ultimate solution for your farm fencing needs. Crafted from 100% virgin PVC, this fence is designed to withstand the elements without the worry of rot or decay, making it a superior choice over traditional wood.

With its high impact resistance and low maintenance requirements, the Dog Ear Top Garden Fence ensures lasting durability. Installation is a breeze—simply combine sections, posts, and gates to create a complete fence in no time. Plus, with a 30-year warranty and certificates from SGS, CE, and ISO9001, you can trust in its quality.

Not only is this fence fireproof (V-0 rated), but its easy DIY assembly means you can enjoy a sturdy boundary without the hassle. Delivery takes just 7-10 days for a 40HQ order, ensuring you’ll be set up quickly. Upgrade your fencing with the Dog Ear Top Garden Fence today!

Product Description

Usage: Garden Fence,Home,Farm,Vilia, Warehouse,Country Yard,Balcony,Temporary,Privacy Fence.

Frame Material: 100% Virgin PVC/ Plastic,Not Coated

Characteristic: Easy to install,More elastic and high impact resistance,Vinyl Is Durable and Low Maintenance.

HS CODE:3925900000

Fire Proof: V-0

Certificate: SGS,CE,ISO9001

Warranty: 30 Years

Delivary Time: About 7-10 days as a 40HQ

How to make a order: Its simple, just add Section + Post + Gate = Complete Fence

Fence Top Style Pvc dog ear top garden fence
Color White, Tan, Grey, Cream
Height Standard height 48", Different heights available
Width Standard width 96", Different widths available
Post 4"x 4" or 5"x 5" or optional x 72'', pre routed as Line,End,Corner,3-ways or blank.
Post Cap New England Cap,Flat Cap,Gothic Cap
Bottom Rail 2"x 3-1/2"x 94''x1pcs, pre notched
Top Rail 2"x 3-1/2"x 94''x1pcs, pre notched
Aluminum Insert Aluminum insert in bottom rail for commercial strength
Picket 7/8"x 3"x 39'' x 15pcs (standard spacing)
Volume of Section 0.08CBM, loading QTTY inquiry
Matching Gate Available

Contact Us for More Details

Don't hesitate to contact when you need us!

SUBMIT

About
Deqing Huazhijie Railing & Fencing Co.,Ltd.
Deqing Huazhijie Railing & Fencing Co.,Ltd.
Deqing Huazhijie Railing & Fencing Co.,Ltd. is China HAC3 dog ear top garden fence suppliers and HAC3 dog ear top garden fence company, which is located near Shanghai, established in 2003, is a professional manufacturer engaged in the research, development, production, sale, and service of PVC fence and PVC flooring. We are located in Huzhou, which has convenient transportation access. Dedicated to strict quality control and thoughtful customer service, our experienced staff members are always available to discuss your requirements and ensure full customer satisfaction.
If you select a current product from our catalog or want help with your application, you can go ahead and discuss your sourcing requirements with our customer service center.
Certificate Of Honor
  • Deqing Huazhijie Railing & Fencing Co.,Ltd.
  • Deqing Huazhijie Railing & Fencing Co.,Ltd.
  • Deqing Huazhijie Railing & Fencing Co.,Ltd.
  • Deqing Huazhijie Railing & Fencing Co.,Ltd.
  • Deqing Huazhijie Railing & Fencing Co.,Ltd.
News
PVC Picket Fence Industry knowledge

Deqing Huazhijie Railing & Fencing Co., Ltd. is a PVC fence manufacturer established in 2003, producing the HAC3 dog ear top garden fence and the wider PVC picket range at our factory in Huzhou, near Shanghai. The HAC3 is a routed, ready-to-assemble picket system made from 100% virgin PVC: dog ear top pickets, pre-notched top and bottom rails, and pre-routed posts that combine into a complete fence with matching gates. It is specified for garden boundaries, home frontages, farm and villa perimeters, country yards, warehouse surrounds and light commercial enclosures where a traditional picket line is wanted without wood's rot, repainting and replacement cycle.

The HAC3 System: Section, Post, Gate

A complete HAC3 fence is ordered as three coordinated parts rather than a single panel: sections, posts and gates. Each section arrives pre-notched and pre-drilled so pickets drop into the rails and rails drop into the post routing on site. The dog ear top profile gives the picket line a softened, symmetrical crown that reads as traditional timber picket from the street while carrying the dimensional stability of extruded vinyl.

  • Section — assembled picket field with top and bottom rail, standard 48" height and 96" width, 15 pickets at standard spacing.
  • Post — 4"x4" or 5"x5", 72" length, pre-routed as line, end, corner, 3-way or supplied blank for site drilling.
  • Gate — matching gate fabricated to the same picket and rail profile so the opening reads as part of the run.
  • Accessories — New England, flat or Gothic post caps, plus the aluminium insert that stiffens the bottom rail for commercial-strength spans.

Component Specification and What Each Dimension Controls

The numbers below are the standard HAC3 build. Each one drives a different behaviour in service — picket face width sets the visual density, rail depth sets stiffness, post size sets the wind and gate-load capacity, and section volume sets how much container space a project consumes.

Component Standard HAC3 Build What It Controls
Picket 7/8" x 3" x 39", 15 pcs per section Sightline density, privacy level, wind pass-through
Top rail 2" x 3-1/2" x 94", pre-notched, 1 pc Picket alignment and top-line straightness
Bottom rail 2" x 3-1/2" x 94", pre-notched, 1 pc, aluminium insert Span stiffness, sag resistance, commercial loading
Post 4" x 4" or 5" x 5" x 72", pre-routed Wind resistance, gate hinge loads, corner restraint

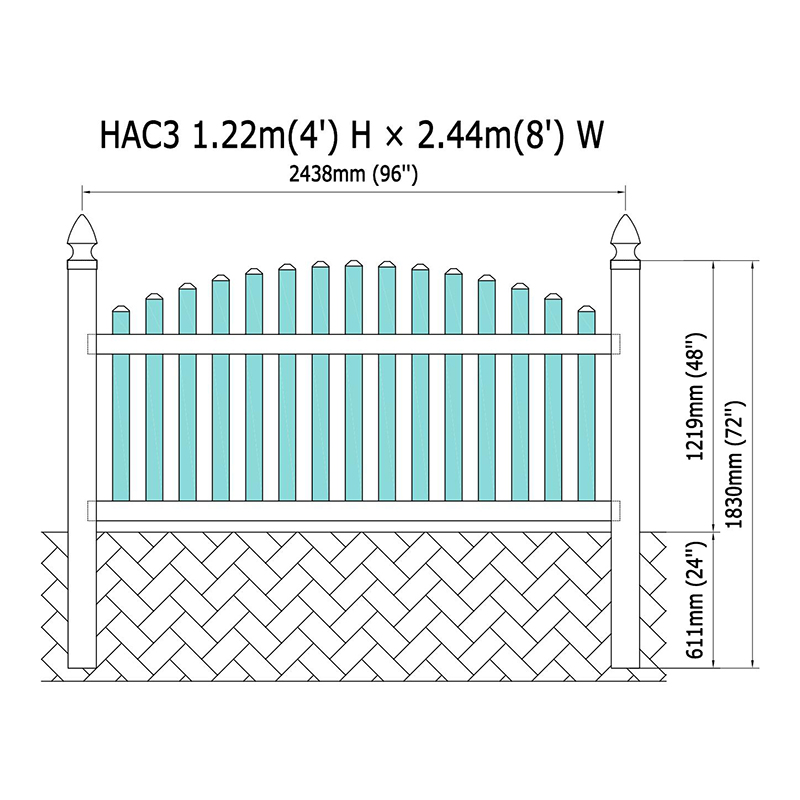

Section size 48" H x 96" W standard; other heights and widths available Boundary height, run layout, post spacing
Section volume 0.08 CBM per section Container loading quantity and freight planning
Colour White, tan, grey, cream HOA and estate matching, heat build-up

Where the HAC3 Profile Fits

The dog ear top is a perimeter fence, not a screen. It defines a boundary, keeps casual foot traffic and animals out of a defined area, and lets air move through the picket field. That makes it the right choice for front-yard definition, garden edges, farm and villa perimeters, country yards, balcony and terrace boundaries, and temporary or semi-permanent enclosures around warehouses and yards.

  • Residential frontages and estate perimeters where a picket line is required by design review.
  • Farm, ranch and villa boundaries that need a visible, low-maintenance line.
  • Commercial and warehouse yards where the aluminium-reinforced bottom rail carries longer unsupported spans.
  • Projects that need a matching gate at driveways, side access or service entries.

Where a solid visual screen is the requirement instead of a picket line, our PVC Privacy Fence range covers panel systems at 72" standard height. Where the project calls for a scalloped or arched top instead of dog ear, the HAA3 4ft scalloped picket fence uses the same routed assembly logic.

Material Formulation, Colour and Weathering

HAC3 profiles are extruded from 100% virgin PVC with no recycled content and no lead. The formulation carries UV inhibitors, impact modifiers and stabilisers, with titanium dioxide at 10 parts per 100 for non-chalking colour retention, and pigments sourced from US or German suppliers. Raw materials are traceable through the extrusion process.

The compound is rated for service from -40°C to 70°C, so the same section specification works across Canadian, northern US, European and Australasian climates. Vinyl does not rot, chip, peel or host termites, and the surface is cleaned with a garden hose and mild detergent rather than sanding and repainting.

Configuration Options and OEM/ODM Work

We build the HAC3 around the project rather than around a fixed catalogue line. Height, width, picket spacing, post size, post routing pattern, cap style and colour are all set at order stage, and gates are fabricated to match the run. For distributors and importers we also work to OEM and ODM briefs — new profile geometry, private-label packaging and custom colour matching are handled through our extrusion and tooling process.

  • Non-standard heights and widths for stepped or sloped boundaries.
  • Post routing as line, end, corner, 3-way or blank for site-specific layouts.
  • Post caps in New England, flat or Gothic profiles.
  • Matching gates, including wider driveway openings.
  • OEM and ODM profile development with sample approval before production.

Installation, Post Setting and Gate Integration

Installation follows the same sequence as a timber picket fence, with the routing already done. Posts are set first, rails are inserted into the routed post holes, pickets are dropped into the notched rails, and caps are fitted last. We recommend setting posts in concrete wherever local practice cements wood posts, and the heavier post-and-rail wall configuration with notched rails improves pull-out resistance at the joint.

Gate openings are the highest-load point in any run. We supply matching gates with the same picket and rail profile, and we confirm hinge and latch positions against the post routing so the gate swings clear of the picket line. Installation video guidance is provided with orders, and our technical team reviews layout drawings before production where a project supplies them.

Quality Control and Compliance Evidence

Production runs through extrusion, cutting, hole drilling, notching, packing and storage under one roof, so the profile geometry that determines assembly fit is controlled from raw material to pallet. An independent quality-control group inspects each extruder's output hourly and carries out random checks in addition to the scheduled inspection.

  • Certification held: SGS, CE, ISO 9001, plus ROHS and UL94 material documentation.
  • Fire performance: V-0 rated formulation.
  • Warranty: 30-year limited warranty on the fence system.
  • Customs classification: HS code 3925900000.
  • Typical production lead time: about 7–10 days for a 40HQ order.

Information We Use to Configure Your Solution

A quotation for the HAC3 is built from the boundary, not from a price list. Send the following and we will return a section, post and gate schedule with loading figures.

  • Total run length, number of corners, ends and gate openings.
  • Required height and any stepped or sloped sections.
  • Colour and cap style, or a reference photo of the target look.
  • Post size preference and whether posts will be set in concrete.
  • Site wind exposure and any local fence height restrictions.
  • Destination port, target container type and required delivery window.
  • For OEM work: profile drawing, colour target and packaging artwork.

Orders are completed on time and to the agreed quantity and specification, and our team responds to technical questions and feedback throughout the project. As a custom dog ear top garden fence suppliers partner, we handle both single-product supply and complete fence packages with gates and accessories. Matching gates and hardware are listed under PVC Fence Gate.

Frequently Asked Questions

What is included in a complete HAC3 fence order?

A complete fence is section plus post plus gate. Each section ships with its top and bottom rail and 15 pickets at standard spacing, posts ship pre-routed to the layout you specify, and gates are fabricated to match. Post caps and the aluminium bottom-rail insert are specified at order stage.

Can the HAC3 be supplied in heights and widths other than 48" x 96"?

Yes. The standard section is 48" high by 96" wide, and we produce other heights and widths to suit the boundary. Changing the section width changes post spacing and the number of posts per run, so we recalculate the schedule when a non-standard width is requested.

Do the posts need to be set in concrete?

We recommend treating vinyl posts the same way as wood posts. Where local practice cements wood fence posts, cement the vinyl posts as well. Post setting depth and concrete volume are the main variables affecting wind performance, alongside post size and rail configuration.

Which colours and cap styles are available?

White, tan, grey and cream are the standard colours, produced with UV-stabilised pigment and titanium dioxide for colour retention. Post caps are available in New England, flat and Gothic profiles, and custom colour matching is handled through our OEM process.

What certification and warranty apply to the HAC3?

The system carries a 30-year limited warranty. Certification includes SGS, CE and ISO 9001, with ROHS and UL94 material documentation, and the formulation is V-0 rated for fire performance. HS code 3925900000 applies for customs purposes.

Can you produce OEM profiles and private-label packaging?

We welcome OEM and ODM orders. New fence profiles and styles are developed from customer drawings or reference samples, with sample approval before volume production, and packaging can be branded for distributor and importer programmes.
