Vinyl temporacy fence

Deqing Huazhijie Railing & Fencing Co.,Ltd. manufactures the Vinyl Temporacy Fence as a portable, modular PVC panel system for event organisers, contractors and rental fleets that need a boundary standing quickly and struck just as fast. We have produced PVC fence profiles in Huzhou, near Shanghai, since 2003, running our own extrusion, cutting, drilling and notching lines, and this temporary range sits alongside our picket, privacy, pool and farm fencing. Each module ships at 39" high and 78" wide with a pre-mounted steel post plate, so a crew can set a run without fabricating anything on site.

The Module: Panel, Post and Post Plate

As a Vinyl Temporacy Fence manufacturer, we match product configuration to the application, operating limits, interfaces and acceptance criteria defined for each project.

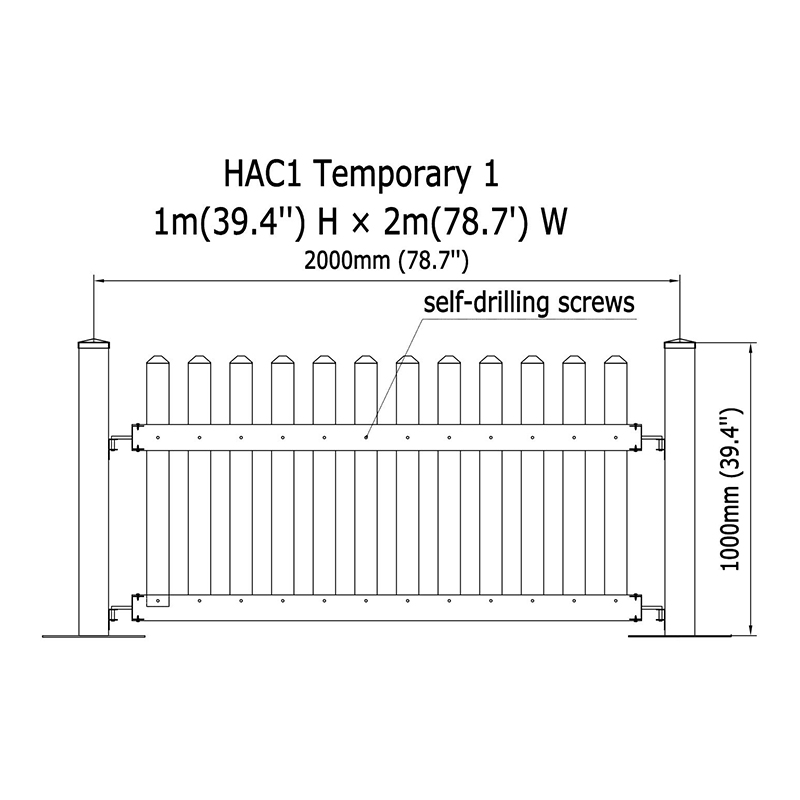

Every section is a complete, self-contained unit. The panel measures 68" x 32" and carries two hooks that engage the post, the post is 4" x 4" x 39" with a steel plate already mounted at the base, and the assembled section stands 39" high by 78" wide. Nothing is cut, drilled or welded on site, which is what keeps a temporary run repeatable across multiple events.

Reading the Specification

The numbers on this product are a working set, not a catalogue headline. Each one answers a question a project team asks before the first panel is unloaded.

• 39" assembled height sets the visual and physical boundary line for crowd separation, queue lanes and perimeter marking.
• 78" assembled width is the repeat unit; divide the total run length by 78" to size the section count, then add posts for corners and access gaps.
• 68" x 32" panel with two hooks keeps the infill captive between posts while remaining light enough for two people to handle.
• 4" x 4" x 39" post with steel plate gives a square, stable upright and a flat mounting face at ground level.
• 0.166 CBM per section is the packing volume we use to build the container loading plan.
• HS code 3925900000 supports consistent customs entries across repeat shipments.

Where the Vinyl Temporacy Fence Fits

This system was developed for tradeshows, fairs and upscale outdoor events, and it carries the same logic into construction and facility work. Fast installation, high durability and portable handling are the three characteristics that define its application envelope.

• Exhibition and trade fair perimeters, stand enclosures and outdoor display areas
• Event crowd lines, ticketing lanes and hospitality boundaries
• Construction and renovation site separation where a clean white or tan line is preferred over steel mesh
• Seasonal outdoor activity areas, markets and sports event surrounds
• Rental fleets that re-deploy the same panels across many short-duration jobs

Where the boundary is permanent rather than temporary, we supply the same PVC material system in fixed formats, including the HEA PVC privacy panel fence 6'x8', the HDA 2-rail PVC farm fence and the HBE 48"x96" 3-rail pool fence. As a custom Vinyl temporacy fence suppliers partner, we match the temporary module to those permanent lines so a site reads as one installation.

Material, Formulation and Fire Behaviour

The profile is extruded from lead-free virgin vinyl with no recycled content. UV protection comes from DuPont titanium dioxide at 10 parts per 100, and colour is carried by US or German brand pigments, all traceable back to the incoming batch. That formulation is what keeps the surface from chalking and holds colour through repeated outdoor seasons.

• V-0 fire rating as specified for this panel, which matters for indoor halls and covered structures
• Service temperature range of -40 to 70 degrees, covering cold-weather storage and hot-weather event use
• Engineered against surface cracking, chipping, peeling and rot over the service life
• No termites, no harmful chemicals and no painting or staining cycle

Configuration Options

Standard production runs White, Tan, Grey and Cream in the 39" x 78" module. Beyond that, we build to the project: height and width variations, alternative panel proportions, and profile development for a specific look or a specific fixing detail. OEM and ODM orders are part of our normal production schedule rather than a special case.

• Colour selection across the four standard tones, or a matched tone for a branded fleet
• Height and width adjustment where the standard module does not suit the layout
• New profile and style development from a drawing, a sample or a performance requirement
• Access openings and gate positions planned into the run rather than cut in afterwards
• Packaging and labelling configured for distributor stock or direct-to-site delivery

Installation and Site Interfaces

Installation follows the same sequence as a wood fence, with the routing and cutting already completed in our factory. Rails and panels are inserted into the routed posts, the post plate is fixed to the surface, and the run is levelled before the next section is added.

• Surface condition at each run determines the fixing method for the steel post plate
• Wind exposure and shelter on site influence post spacing and fixing depth
• Layout should be walked before installation so corners, openings and level changes are known
• Handling is a two-person task per section; panels stack flat for transport and storage
• Cleaning is a garden hose rinse, with a mild abrasive cleaner for stubborn marks and ordinary detergent for paint or graffiti

Quality Control and Acceptance

Production runs through extrusion, cutting, drilling, notching, packaging and storage under one roof, so each stage is controlled rather than subcontracted. An independent quality-control group inspects every extruder's output hourly and carries out additional random checks across the shift.

• SGS, CE and ISO 9001 certification for this product, with ASTM and TUV global manufacturer certification held at company level
• Traceable raw materials: DuPont TiO2, US or German pigments and PVC resin
• Section volume of 0.166 CBM verified against the loading plan before shipment
• Inspection records and certificates issued with the shipping documents

Information We Use to Configure Your Solution

A quotation for this system is built from the layout and the logistics, not from a price list. The table below shows the inputs we work from and what each one settles.

Delivery, Documentation and Support

Standard delivery is about 7-10 days for a 40HQ, confirmed against the order quantity and colour schedule. We provide video installation guidance and technical support for the crews assembling the runs, and we can develop a new fence profile or style from a customer requirement. Every product carries a 30-year limited warranty covering repair or replacement of materials.

Frequently Asked Questions

What are the standard dimensions of the Vinyl Temporacy Fence?

The assembled section is 39" high and 78" wide. The panel is 68" x 32" with two hooks, and the post is 4" x 4" x 39" with a steel post plate pre-mounted at the base.

Can the panels be supplied in custom heights, widths and colours?

Yes. White, Tan, Grey and Cream are standard, and we produce height and width variations as well as new profiles for OEM and ODM orders. Send the layout and the required dimensions and we will confirm what the tooling and production schedule allow.

How many sections fit in a container?

Each section occupies 0.166 CBM. We calculate the loading quantity against your container plan and confirm the figure with the quotation, so the freight cost is known before the order is placed.

Is the fence suitable for repeated setup and teardown?

The system was designed for portable use at tradeshows, fairs and outdoor events. Panels stack flat, posts carry their own mounting plate, and no component is cut or modified during installation, so the same sections can be re-deployed across multiple jobs.

What certification and warranty come with the product?

The product is supplied with SGS, CE and ISO 9001 certification and a V-0 fire rating, and it carries a 30-year limited warranty covering materials, repair or replacement. The HS code for customs entry is 3925900000.

How is the fence maintained?

A garden hose rinse handles normal soiling. Stubborn marks respond to a mild abrasive cleaner, and paint or graffiti can be removed with ordinary detergent and water, with a pressure washer or paint thinner for tougher cases.
