Pvc portable picket fence

Deqing Huazhijie Railing & Fencing Co.,Ltd. has manufactured lead-free PVC fencing in Huzhou, near Shanghai, since 2003. Our custom PVC portable picket fence suppliers range serves event organisers, rental fleets, venue operators, exhibition contractors and distributors who need a picket-look barrier that goes up quickly and stacks flat between jobs. Sections are extruded, cut, drilled and notched in our own plant, so the post, rail and picket geometry is controlled before the parts ever reach a site.

What a Portable Picket Section Includes

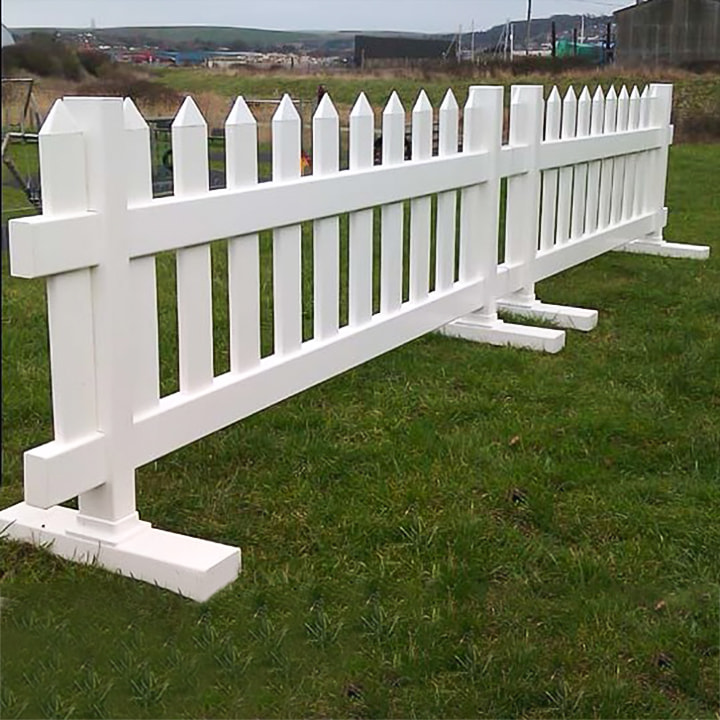

Each section leaves the factory as a complete, pre-drilled assembly: two posts, two rails and twelve pickets, dimensioned so the components fit together on site without cutting or routing. The standard section stands 30 inches high and 72 inches wide, an open configuration that marks a boundary while keeping sightlines clear across a booth, aisle or lawn.

Where PVC Portable Picket Fencing Fits

The product was developed around temporary and semi-permanent demarcation rather than permanent property lines. Its value shows up wherever a boundary has to appear and disappear on a schedule.

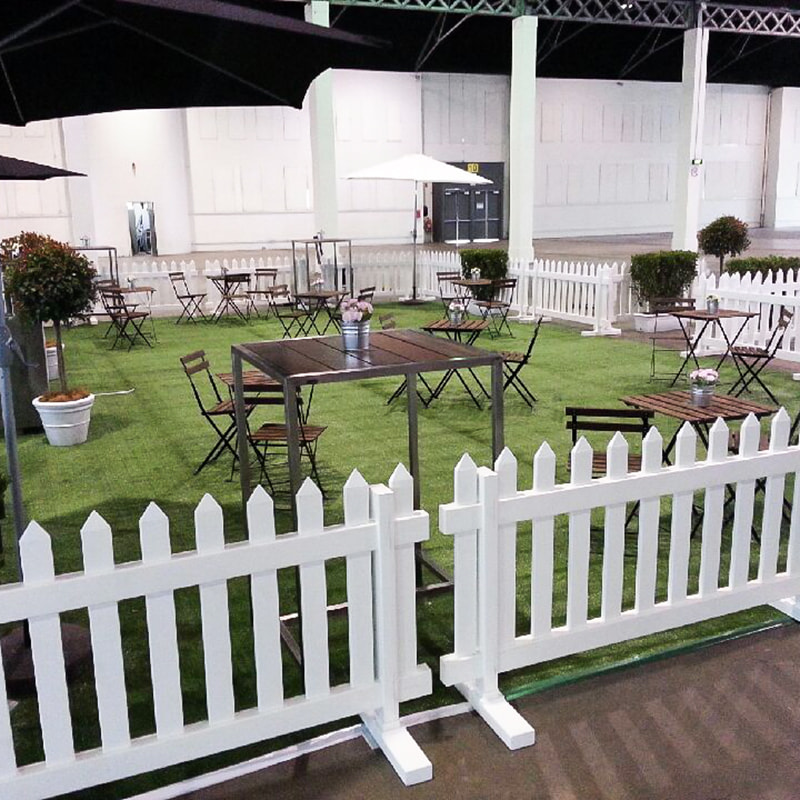

• Trade shows and exhibition stands that need a defined footprint without drilling the hall floor
• Fairs, festivals and upscale outdoor events where appearance matters as much as function
• Venue perimeters, queue lanes and ticket-line control
• Rental fleets that re-deploy the same sections across many sites per season
• Garden, terrace and landscape demarcation where a picket profile suits the architecture

Reading the Specifications

The 30-inch height is the working point of this design. It reads as a fence rather than a barricade, keeps people and merchandise visible, and still gives a clear physical edge. The 72-inch width keeps the section count low on long runs, and the 7/8" x 3" picket at 27 inches long produces a traditional picket rhythm across the two rails. Where a project needs a denser or lighter look, picket spacing and picket count are the variables we adjust first, because they change appearance without altering the post and rail interface.

Color and finish

Standard colors are White, Tan, Grey and Cream, all produced with pigmented vinyl rather than surface coating, so the color runs through the profile. White remains the most specified finish for event and exhibition work; Tan and Cream blend into residential and hospitality landscapes; Grey suits contemporary hardscape and commercial interiors.

Material, Fire Performance and Compliance Evidence

We compound with 100% lead-free virgin vinyl and no recycled material. Titanium dioxide is added at 10 parts per 100 using DuPont TiO2 for non-chalking performance, and pigments are sourced from US or German suppliers. Raw materials are traceable through our records, which matters when a project requires material documentation alongside the finished product.

• Fire performance: V-0 rating on this product
• Customs classification: HS code 3925900000
• Product and system certificates: SGS, CE, ISO 9001
• Company-level certificates: CE, ROHS and UL94
• Service temperature range: -40°C to 70°C
• Warranty: 30-year limited warranty

Installation, Handling and Site Fit

Because the posts arrive pre-mounted with a PVC post plate, the section is positioned as a unit rather than assembled piece by piece. Rails seat into the routed posts and pickets into the rails, so a two-person crew can work along a line without power tools. We supply installation video guidance with the order, and our technical staff will walk a crew through the sequence before the first container is unpacked.

Configuration Options and Custom Work

We build to order, so a portable picket run can be tuned to the site instead of the other way round. Height, section width, picket profile, picket spacing and color are all open to specification, and matching gates can be produced in the same profile family. OEM and ODM orders are welcome, and our engineering team develops new fence profiles and styles from customer drawings or reference samples.

• Picket style alternatives: HAE1 traditional dog ear picket for a softer top edge
• Smaller picket geometry: HAF 1"x1" small picket fence where a finer line is preferred
• Full-height picket systems: HAD2 white vinyl fence 4'Hx8'W for permanent installations on the same site

Quality Control and Acceptance

Production runs through extrusion, cutting, drilling, notching, packaging and storage under one roof. An independent quality-control group inspects every extruder's output hourly and carries out additional random checks, so dimensional drift is caught during the run rather than at final packing.

1. Profile dimensions checked against the approved drawing
2. Color matched to the confirmed standard under controlled lighting
3. Picket count, spacing and rail routing verified per section
4. Post plate and hardware present and correctly fitted
5. Packing condition and section volume confirmed before loading

Information We Use to Configure Your Solution

A precise quotation comes from a short set of project inputs. Send these and we will return a configuration, a packing plan and a loading estimate for the container you intend to use.

• Application and site type, including whether the fence is indoor, outdoor or both
• Total linear metres or feet required, and the number of sections this implies
• Required height and section width, if different from 30" x 72"
• Color, picket profile and picket spacing
• Base or footing method, and whether gates are needed
• Packing, labelling and pallet preferences
• Destination port and required delivery window

Packaging, Loading and Delivery

Sections are packed to the 0.05 CBM unit volume, which makes container loading predictable for distributors and rental operators planning stock levels. Loading quantity for a 40HQ is confirmed against the final configuration, and delivery runs at approximately 7 to 10 days for a 40HQ order. We handle OEM and ODM programmes on the same production line, so private-label packaging and mixed-color loads can be scheduled together.

Frequently Asked Questions

What are the standard dimensions of the PVC portable picket fence?

The standard section is 30 inches high and 72 inches wide. Each section uses two posts at 2" x 3-1/2" x 30"L with pre-mounted PVC post plates, two rails at 2" x 3-1/2" x 72"L, and twelve pickets at 7/8" x 3" x 27" on standard spacing.

Which colors are available?

White, Tan, Grey and Cream are standard. Because we compound our own profiles, custom color matching is available under OEM and ODM programmes.

Is the fence fire rated?

Yes. This product carries a V-0 fire rating, and the customs classification is HS code 3925900000. Company-level CE, ROHS and UL94 certificates are held alongside SGS and ISO 9001 documentation.

How is a section installed?

Posts arrive pre-mounted with a PVC post plate, rails seat into the routed posts and pickets into the rails. No on-site routing or cutting is required, and we provide installation video guidance with the order.

What warranty and lead time apply?

The fence carries a 30-year limited warranty. Delivery is approximately 7 to 10 days for a 40HQ, with the exact loading quantity confirmed once the final configuration is fixed.

Can you produce to our own design or brand?

We welcome OEM and ODM orders and hold more than 500 PVC profiles. Our engineering team develops new fence profiles and styles from customer drawings, samples or performance requirements, and can match gates and accessories to the same system.
