Pvc horse temporary fence

PVC Horse Temporary Fence: Portable PVC Enclosure Sections

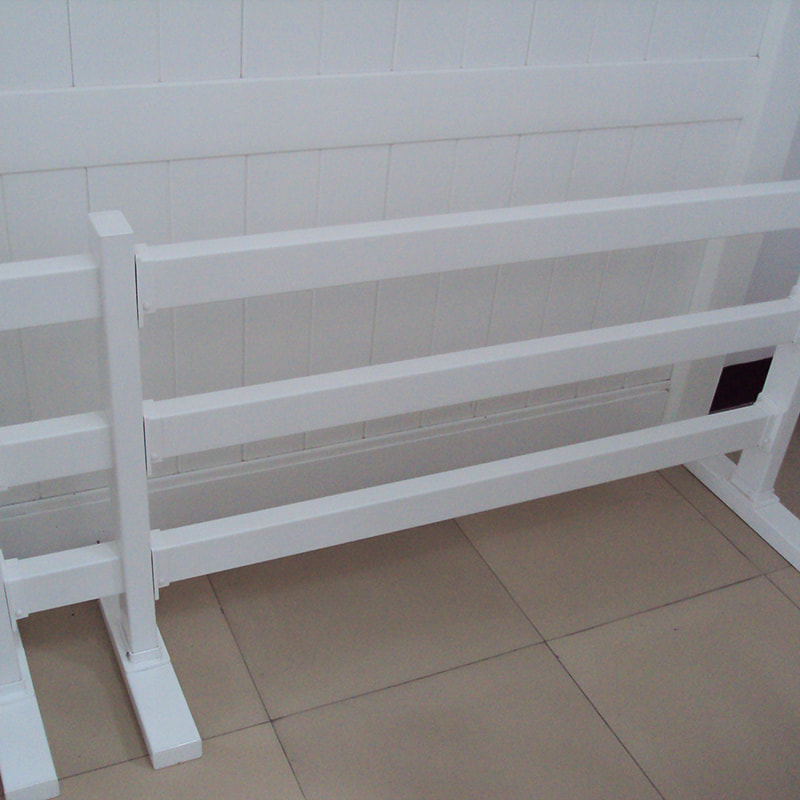

Deqing Huazhijie Railing & Fencing Co., Ltd. has manufactured PVC fence systems in Huzhou, Zhejiang since 2003, within easy reach of Shanghai for container loading and export paperwork. Extrusion, cutting, hole drilling, notching, packing and storage all run inside our own facility, which is how section dimensions stay consistent from the first order to the tenth. The PVC horse temporary fence is our portable enclosure section: a 36 in high, 72 in wide PVC panel with three rails and a pre-mounted post plate, made for horse shows, fairs, trade events and temporary livestock pens where a section has to go up fast, come down cleanly and stack tightly for transport.

• Portable by design — each section is a complete panel; there are no loose rails to sort on site.
• Repeatable dimensions — 36 in × 72 in sections interchange across a run, so pens can be re-laid in different shapes between events.
• Low transport volume — 0.04 CBM per section keeps truck and container space predictable.
• Lead-free vinyl — virgin PVC compound, no recycled material and no lead stabilisers.

Section Anatomy and Standard Dimensions

Every section is built from the same four elements, so a replacement post or rail drops into an existing run without re-drilling. The post arrives pre-mounted with its PVC post plate, which forms the base mounting interface for the section.

Where Portable PVC Sections Fit

The section was developed for tradeshows, fairs and upscale outdoor events, and the same geometry carries into equestrian and agricultural use. Because a run is assembled from identical panels rather than cut-to-length posts, layouts can be re-drawn between events without new material.

• Show and event rings — warm-up areas, collecting rings, sponsor-lined walkways and hospitality perimeters.
• Temporary livestock pens — stall rows, inspection and vet areas, isolation bays at shows and sales.
• Site and venue division — separating public routes from working areas where a solid, clean-looking barrier is expected.
• Rental and event fleets — sections that survive repeated loading, transport and re-erection.

Where a boundary is permanent rather than portable, our fixed horse and farm ranges use the same vinyl compound in heavier post-and-rail builds: HDB 3-rail pvc horse fence, HDA 2-rail pvc farm fence and HDC 4-rail pvc ranch fence.

Material, Colour and Weathering

Our vinyl compound is built on rigid PVC resin with UV inhibitors, impact modifiers and stabilisers, using 100% virgin vinyl throughout and no lead. Titanium dioxide is dosed at 10 parts per 100 with DuPont non-chalking TiO₂, which is the main defence against the surface chalking that dulls cheaper PVC fencing after a few seasons outdoors.

Configuration Options and Custom Builds

Standard sections ship in White, Tan, Grey and Cream at 36 in × 72 in. Beyond that, we build to the drawing: height, width, rail count, post plate detail, cap style and colour can all be adjusted, and gates can be produced to match the run. We hold more than 500 PVC profiles and accept both OEM and ODM orders, including project design work where a venue needs a specific look or a distributor needs its own packaging and labelling.

Installation, Handling and Site Interfaces

Sections arrive assembled, with the post already mounted on its PVC post plate, so site work is positioning and fixing rather than fabrication. Two people can walk a section into place, and the plate gives a defined interface for ballast, ground anchors or a fixed base depending on the surface and the wind exposure.

• Hard surfaces — ballast or weighted bases are the usual approach for indoor halls and paved showgrounds.
• Turf and soil — ground anchors or driven supports hold the plate; the fixing method is agreed against soil type and expected wind load.
• Semi-permanent runs — where a run stays up for a season, we recommend treating the posts as you would timber posts, including cementing where that is local practice.
• Handling — stack flat, keep sections off wet ground and avoid dragging rails across the plate edges.

We supply video installation guidance with the order, and our technical staff review layout drawings where a venue has fixed entry points, gate positions or a required run length.

Quality Control and Compliance Evidence

An independent quality-control group inspects each extruder's production every hour and carries out additional random checks, with raw materials kept traceable back to their batch. That regime covers the profile wall, the routed holes and the notching that decides how squarely a rail seats in a post.

• SGS, CE and ISO 9001 certification for this product line, with ASTM and TUV manufacturer certification held at company level.
• CE, ROHS and UL94 certificates across our production.
• V-0 fire performance on the temporary fence section.
• 30-year limited warranty on our vinyl fence products.

Packing, Loading and Delivery Scope

Each section occupies 0.04 CBM, so a 40HQ load is planned from the section count rather than estimated by eye; we confirm the loading quantity for your mix of sections and gates when you enquire. Standard production runs complete in about 7–10 days for a 40HQ, and OEM packaging, labelling and mixed container loads are handled as part of the same order.

Information We Use to Configure Your Solution

A quotation that holds up on site starts from a short set of project inputs. Send these and we will return a configuration, a section count and a loading plan.

Frequently Asked Questions

What are the standard dimensions of the PVC horse temporary fence?

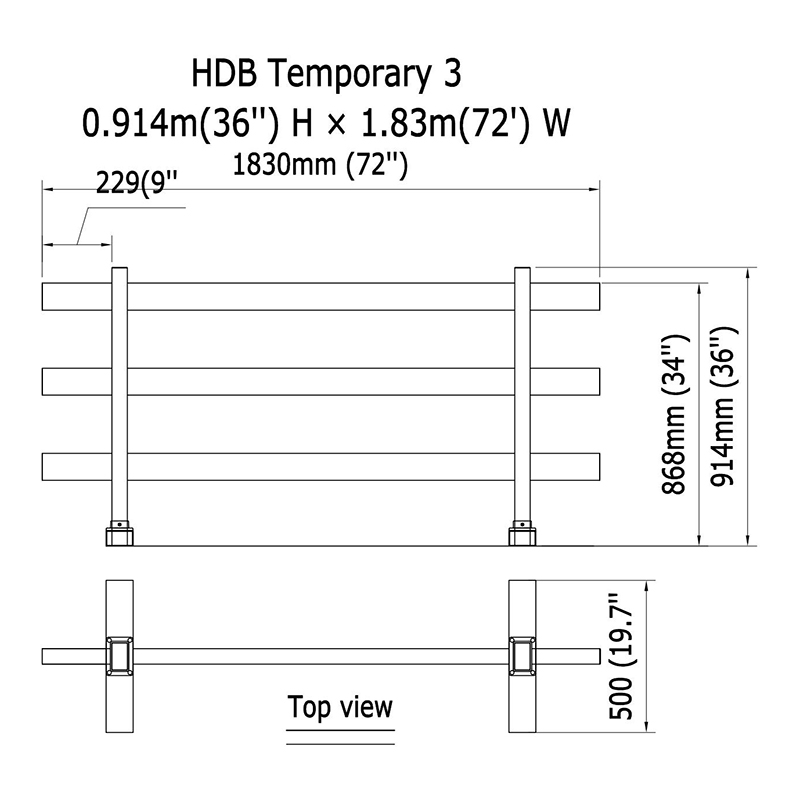

Each section stands 36 in high and 72 in wide. The post is 2 in × 3-1/2 in × 36 in L and arrives pre-mounted with a PVC post plate; three rails at 2 in × 3-1/2 in × 72 in L complete the panel. Volume is 0.04 CBM per section.

Can sections be produced in other heights, widths or colours?

Yes. White, Tan, Grey and Cream are the standard colours, and height, width, rail count and cap detail can be adjusted to your drawing. We accept OEM and ODM orders, including colour matching and your own labelling on volume runs.

How much container space does an order take?

At 0.04 CBM per section, a 40HQ load is calculated from the section count. Tell us the mix of sections and gates you need and we will confirm the loading quantity for that container before production.

Is this fence suitable as a permanent horse boundary?

The temporary section is built for portable use at shows, fairs and events. For permanent paddocks and pasture lines we supply heavier post-and-rail systems such as the HDB 3-rail pvc horse fence, HDA 2-rail pvc farm fence and HDC 4-rail pvc ranch fence, using the same lead-free vinyl compound.

What certification and fire performance does the product carry?

The temporary fence section is rated V-0 for fire performance and carries SGS, CE and ISO 9001 certification, with CE, ROHS and UL94 certificates held across our production. The export HS code is 3925900000.

How is the fence installed, and does it need cement?

Sections arrive assembled with the post mounted on its plate, so installation is positioning and fixing. For temporary use, ballast or ground anchors are chosen to suit the surface and wind exposure. Where a run stays up for a full season, we recommend treating the posts as timber posts, including cementing where that is normal practice in your area.
